LD635-1-24(12x50)-C3500

Número de pedido: 70126068

Descripción del producto:
isolated Line lasermodule, red, 90°, 635nm, 1mW, 24V DC, 12x50mm, cable length 3,5m, class 1

• Operating Voltage 24 V DC
• Laser Class 1
• Fan angle 90 °
• compact size
• uniform line thickness
LD635-1-24(12x50)-C3500 - Produktbild 1
LD635-1-24(12x50)-C3500 - Hauptbild
LD635-1-24(12x50)-C3500 - Rendergrafik
Warnlabel 1
73,87
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape Línia
    Wavelength 635nm
    (rot)
    Optical Power 1mW
    Laser Class 1
    Divergence 0.5mrad
    Fan Angle 90°
    Line Thickness <1mm@1m
    Operating Distance 1m
    Optics Lente de cristal con recubrimiento AR
    Laser technology Single Mode Diode
    Size Ø12mm 50mm
    Material aluminium
    Cable length 3500mm
    Wire type 18AWG, black, 3,6mm
    Focus fixed (1000mm)
    Output Aperture 4.5mm
    Potential of Housing aislado
    Lifetime >5000h
    Operating Voltage 21.6 - 26.4, typ 24V DC
    Operating Current 3 - 15, typ 6mA
    Housing Color negro
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 17g
    Stripping of wire 5mm
    Stripping of cable cover 50mm

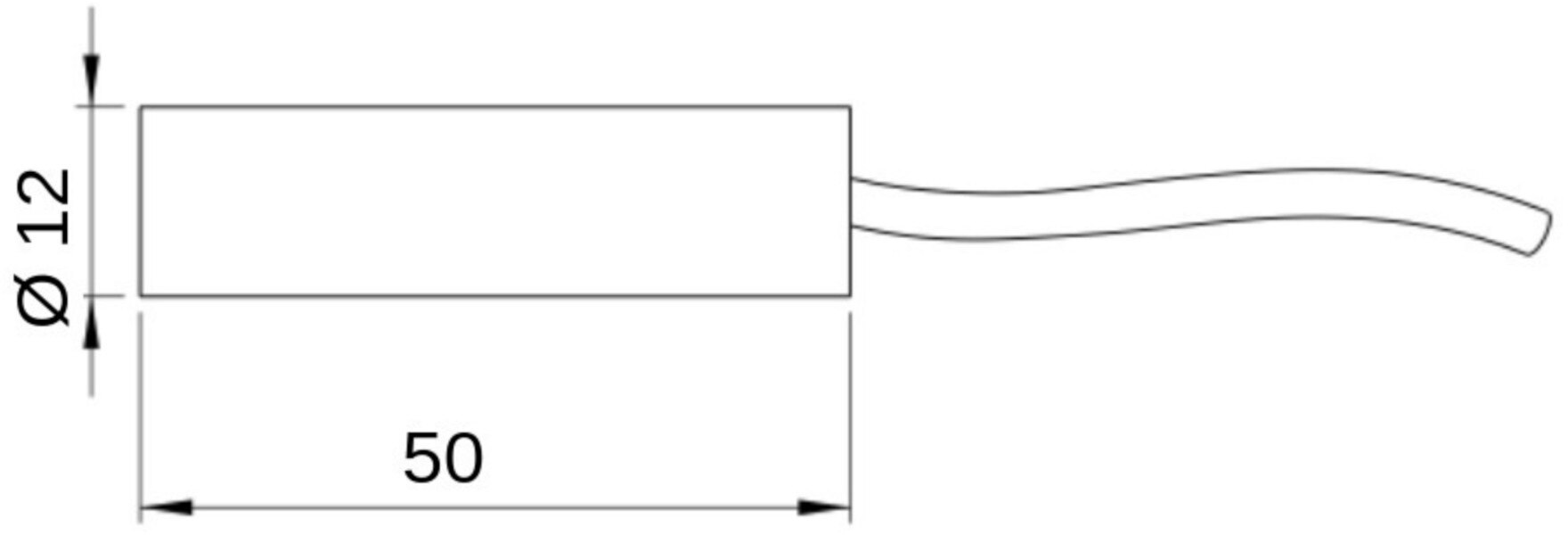

  • Imágenes y dibujo técnico
  • LD635-1-24(12x50)-C3500 - Produktbild 1
    LD635-1-24(12x50)-C3500 - Hauptbild
    LD635-1-24(12x50)-C3500 - Rendergrafik
    Warnlabel 1
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: whitewhite24V DC
  • Accesorios idóneos
  • Mount-12(20x57)Mount-12(20x57)
    Pedido Nr.: 70113686
    Mount for Lasermodul 12mm, Diameter 20mm, Height 57mm
    54.54 EUR
