E650-2-3(24x96)APT20

Order number: 70102437

Product description:
focusable isolated Expander lasermodule, red, 650nm, 2mW, 3V DC, 24x96mm, class 3R

• Operating Voltage 3 V DC
• image processing
• compact size
• adjustable focus
• glas lenses anti reflex coated
E650-2-3(24x96)APT20 - Hauptbild
E650-2-3(24x96)APT20 - Rendergrafik

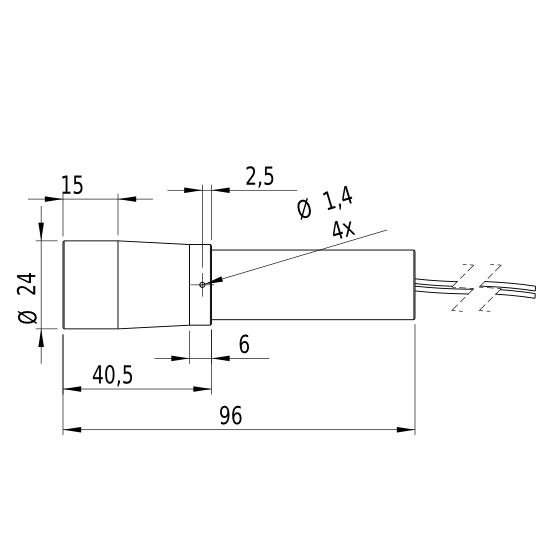

E650-2-3(24x96)APT20 - Zeichnung

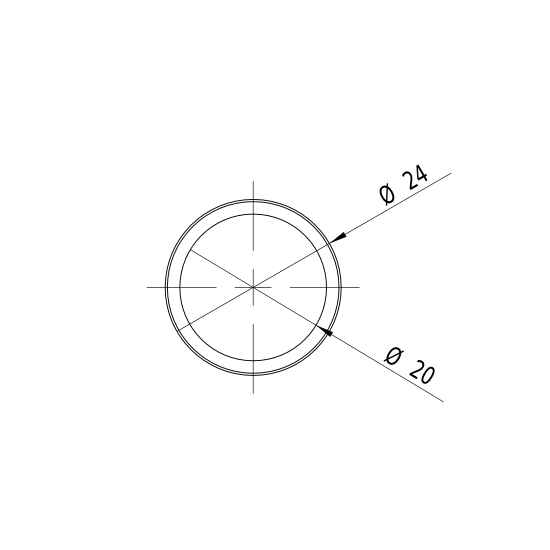

E650-2-3(24x96)APT20 - Zeichnung Front

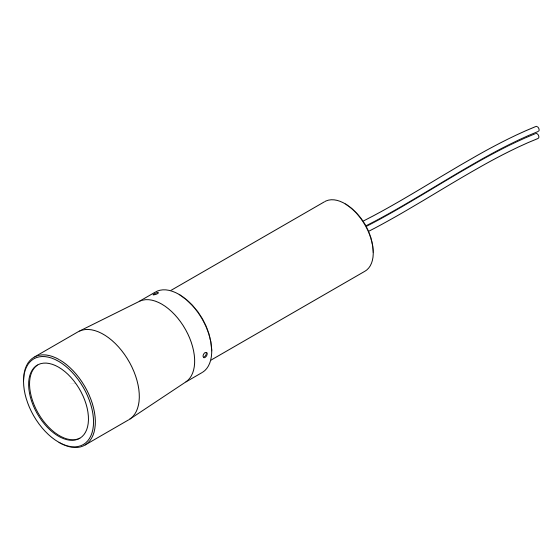

E650-2-3(24x96)APT20 - Zeichnung isometrisch
Warnlabel 3R
193,19
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape expander
    Wavelength 650nm
    (rot)
    Optical Power 2mW
    Laser Class 3R
    Operating Distance 20m
    Optics Glass lens AR coated
    Laser technology diode
    Size Ø24mm 96mm
    Material aluminium
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus adjustable
    Output Aperture 20mm
    Potential of Housing insulated
    Lifetime >5000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 15 - 45, typ 30mA
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 75g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
  • Illustration and technical drawing
  • E650-2-3(24x96)APT20 - Hauptbild
    E650-2-3(24x96)APT20 - Rendergrafik
    E650-2-3(24x96)APT20 - Zeichnung
    E650-2-3(24x96)APT20 - Zeichnung Front
    E650-2-3(24x96)APT20 - Zeichnung isometrisch
    Warnlabel 3R
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • AM1-1203SZAM1-1203SZ
    Order no.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    15.04 EUR
