KS-MOUNT-20(36X62)-MAGNETIC

Order number: 70160253

Product description:

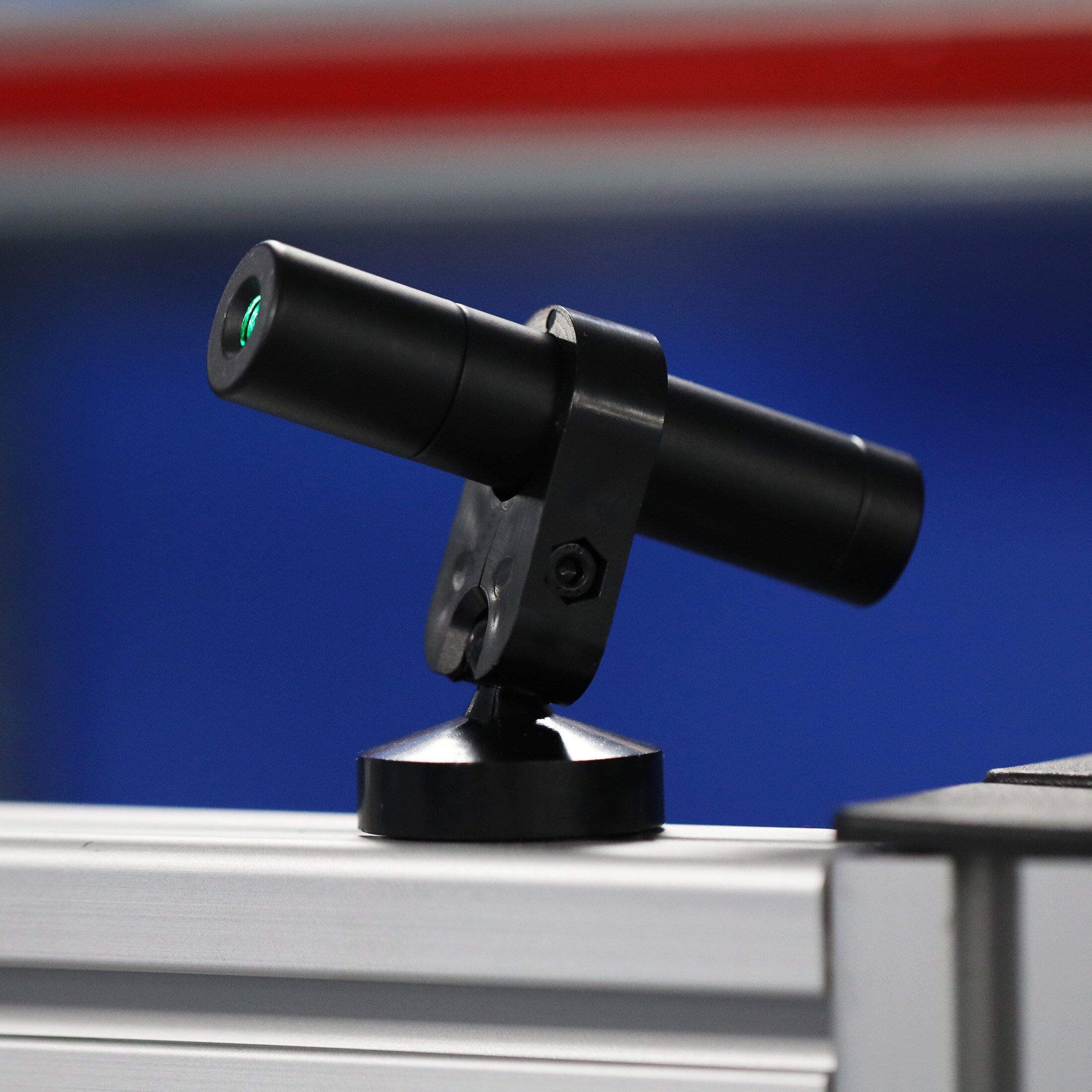

Magnetic mount for laser module 20mm, diameter 36mm, height 62mm, plastic, holding force 6.5 kg

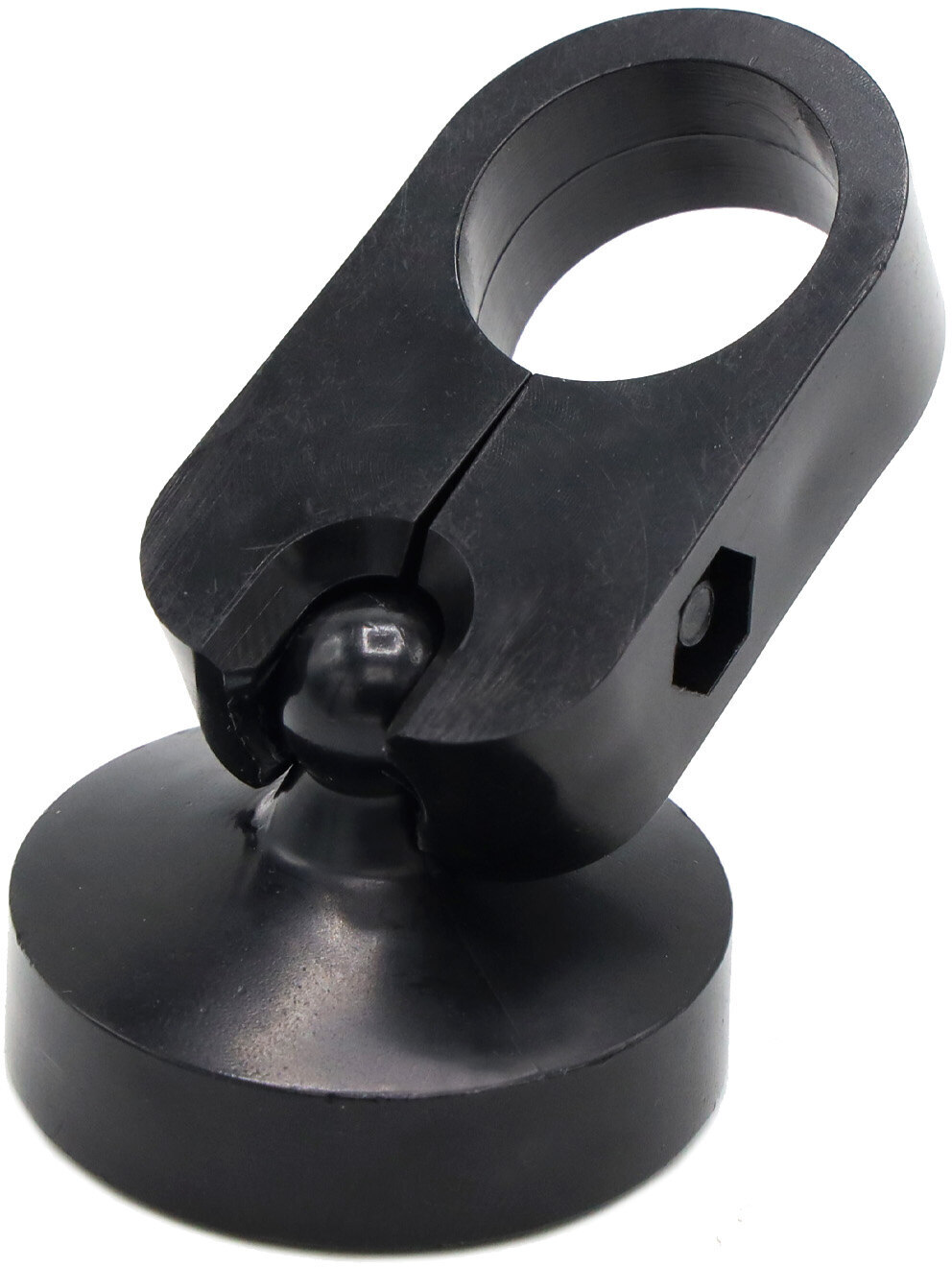

KS-MOUNT-20(36X62)-MAGNETIC - Produktbild 2

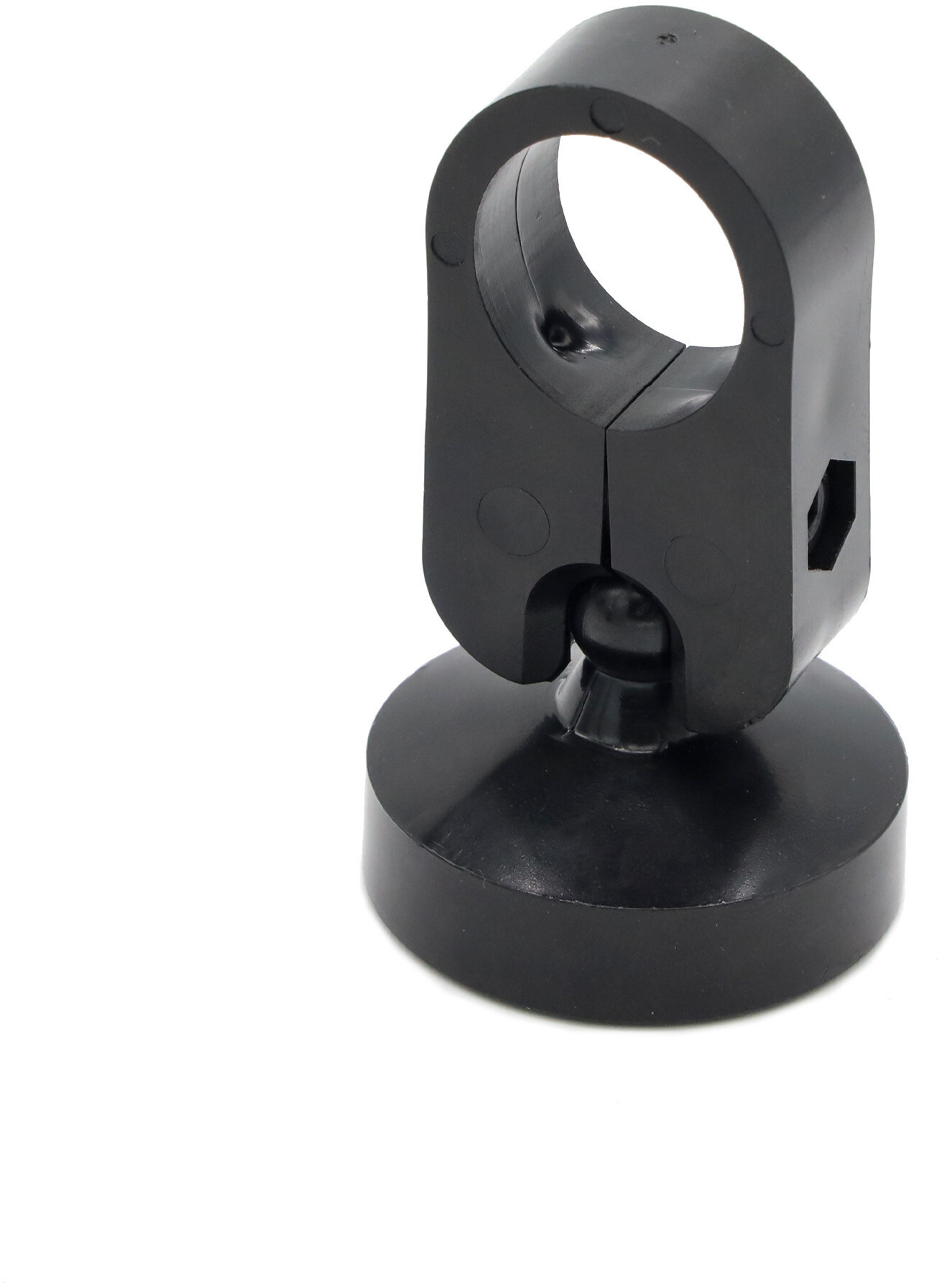

KS-MOUNT-20(36X62)-MAGNETIC - Produktbild 3

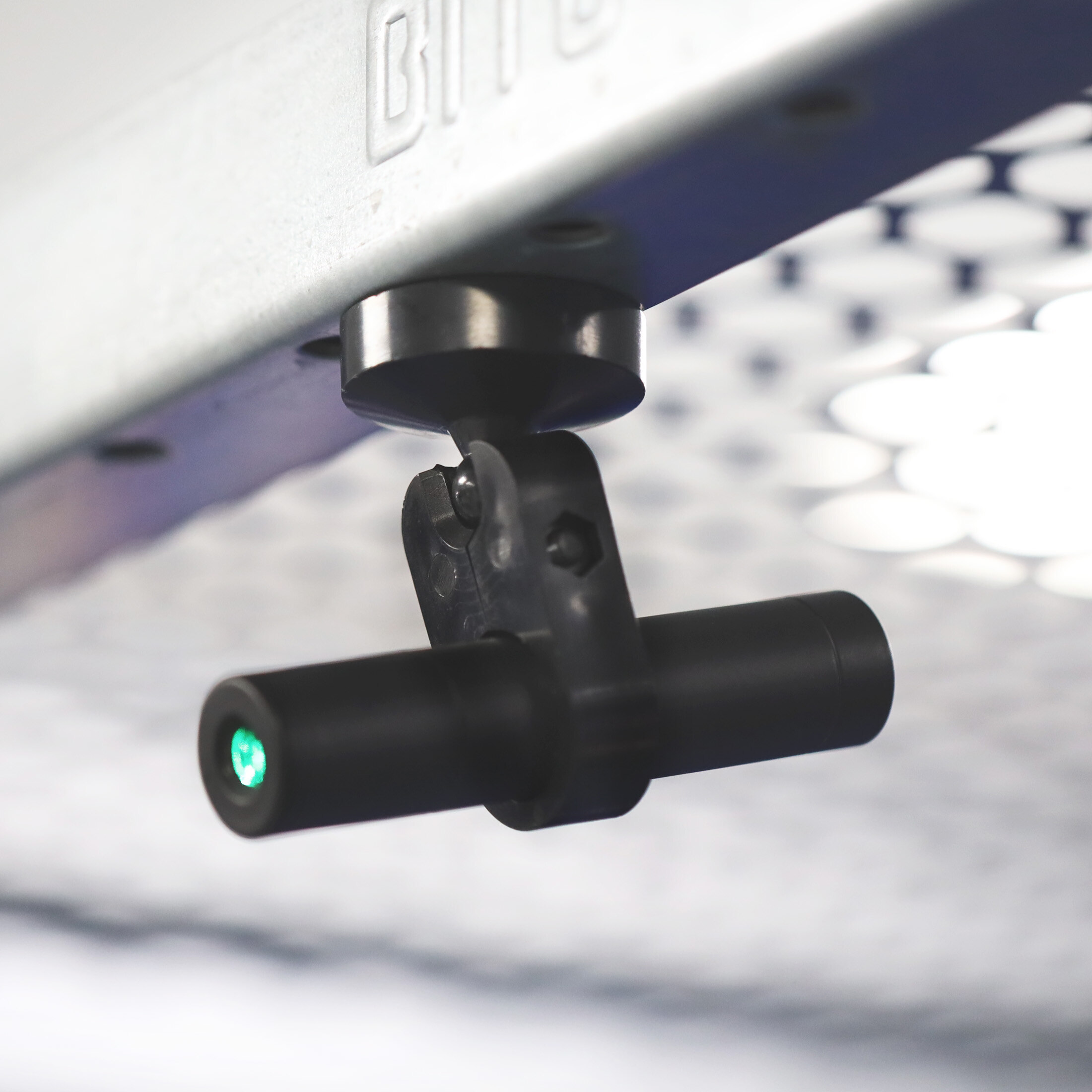

KS-MOUNT-20(36X62)-MAGNETIC - Produktbild 4

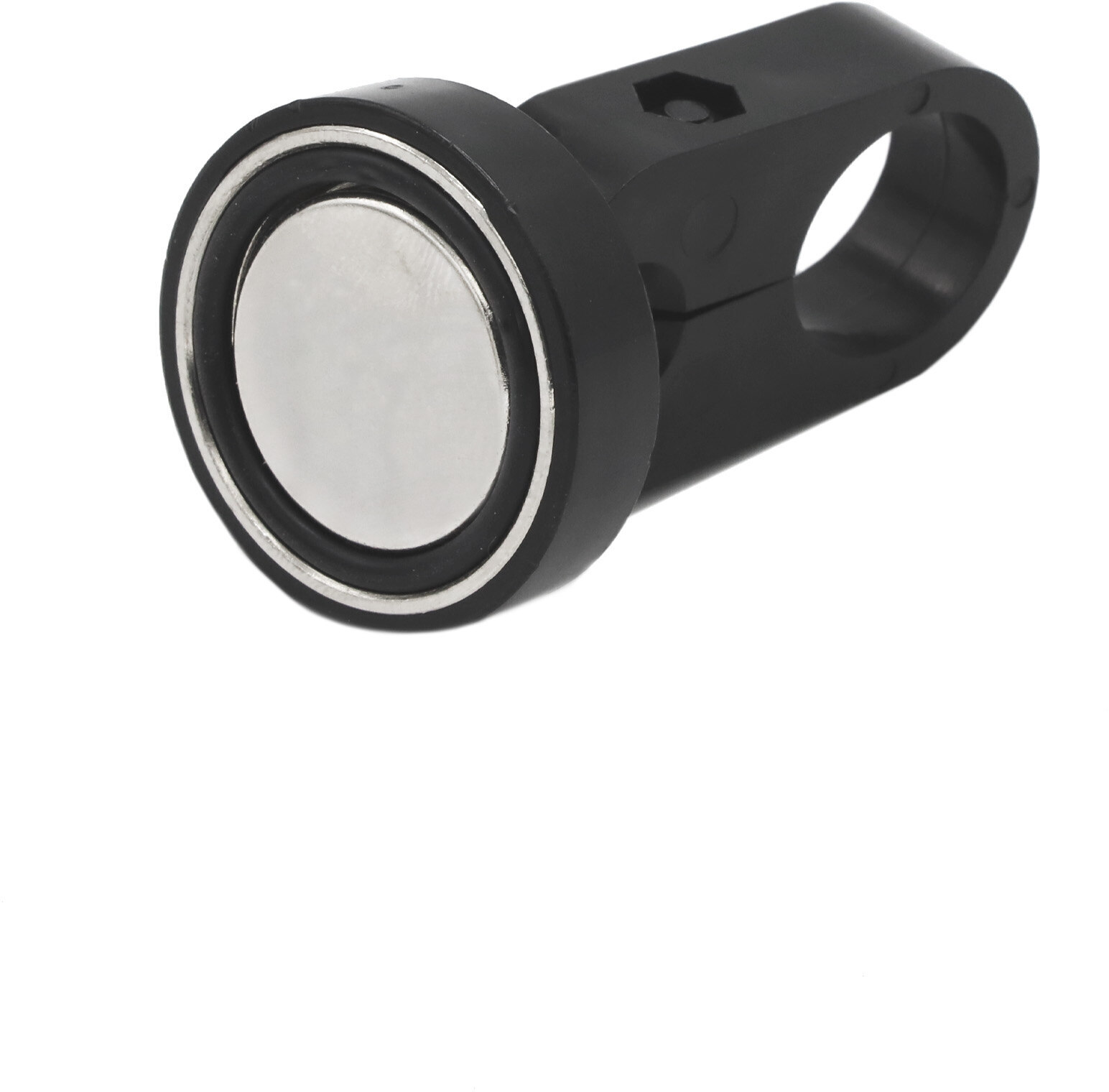

KS-MOUNT-20(36X62)-MAGNETIC - Produktbild 5

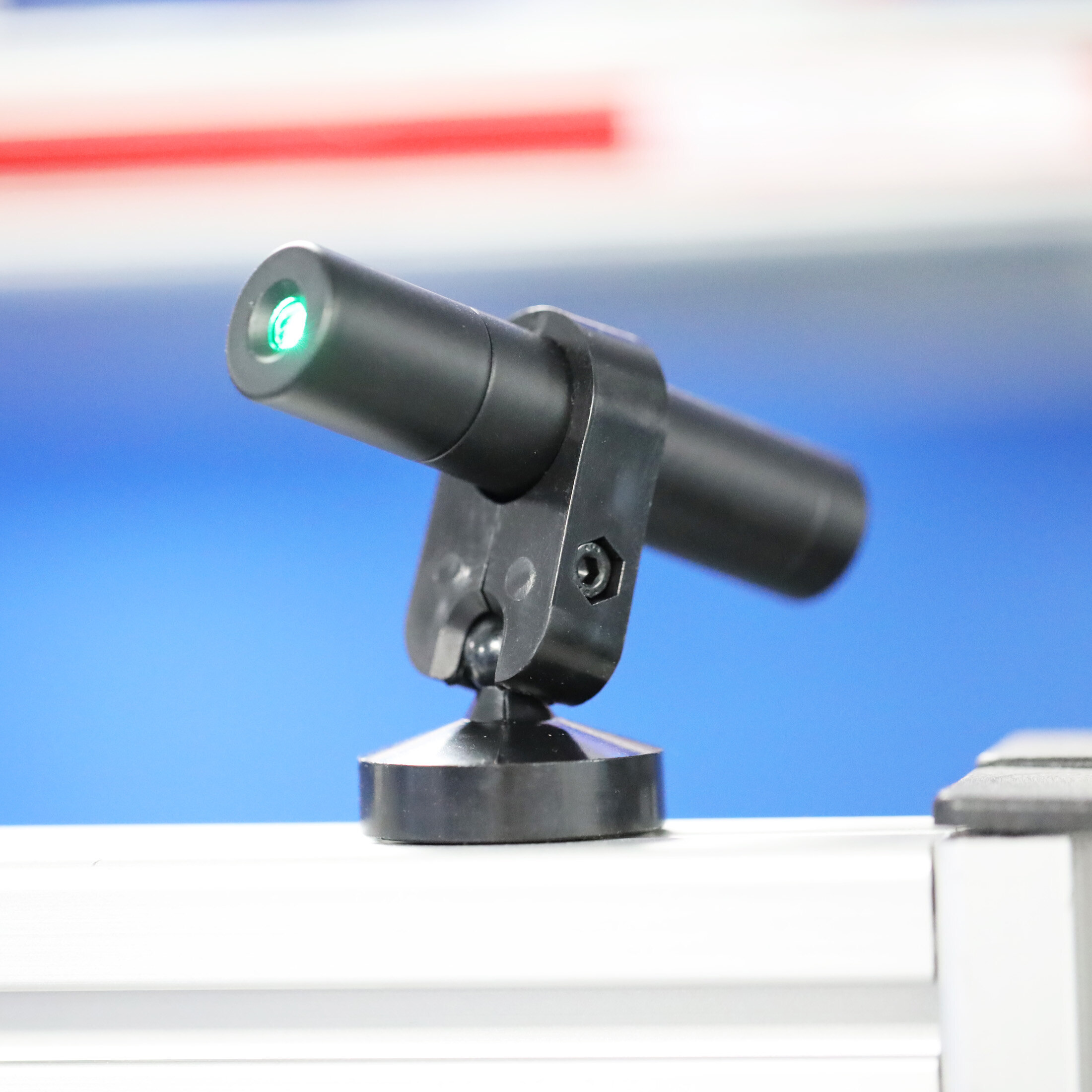

KS-MOUNT-20(36X62)-MAGNETIC - Produktbild 6

25,12
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Material	Plastic
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-50°C - 70°C
Weight	20g
Total Height (h1)	62mm
Height to Laseraxis (h2)	47mm
Height of Base (h3)	17mm
Mount Diameter (d1)	Ø20mm
Diameter of Base (d2)	Ø36mm
Width of Mount (b)	26mm
Height of Mount (g)	45mm
Depth of Mount (t)	12mm
Angle of Rotation Alpha (α)	360°
Angle of Rotation Beta (β)	±180°

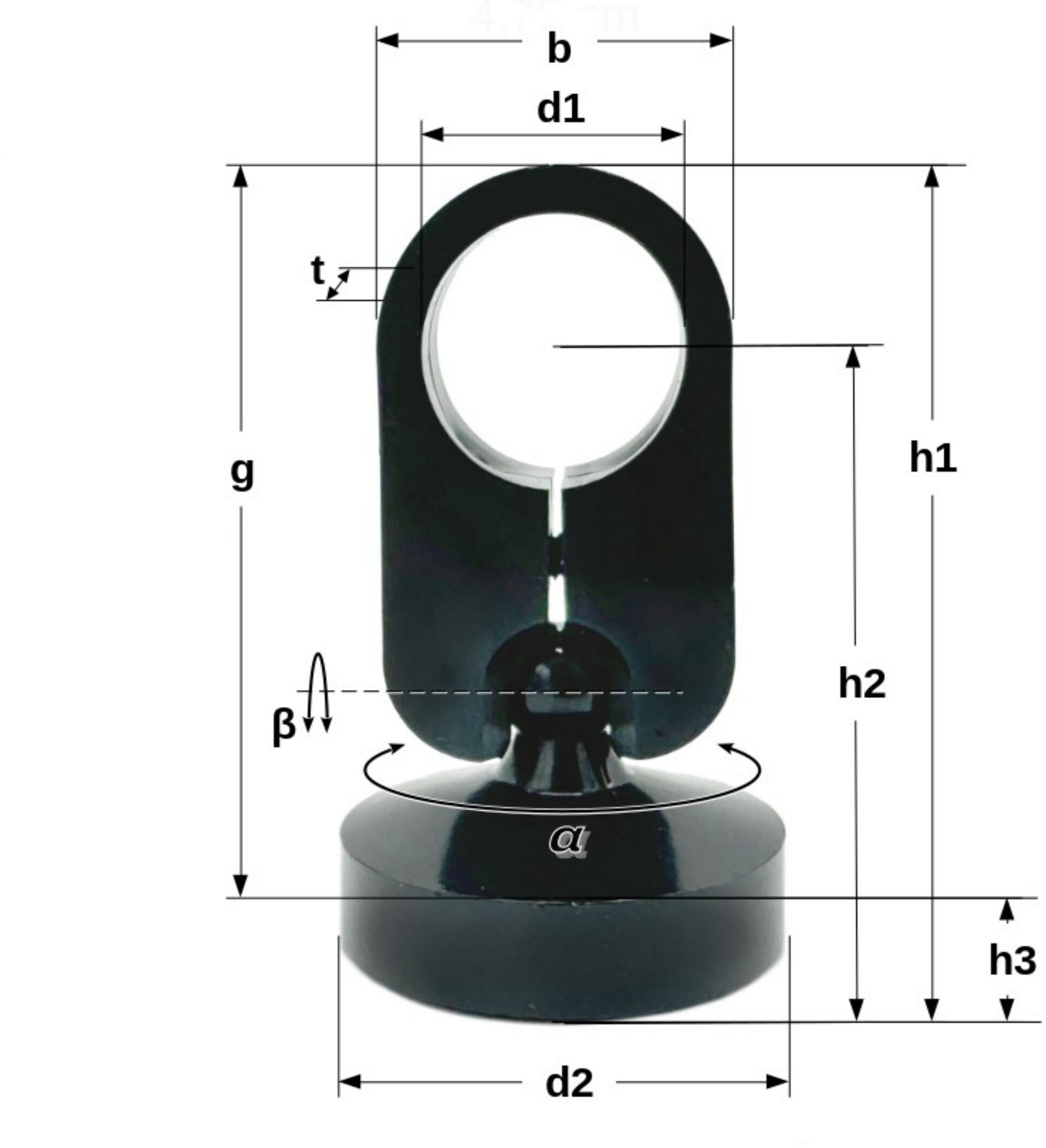

Illustration and technical drawing
Downloads
Data sheet Fax order form
