DD650-10-3(14x45)-KIT
Order number: 70113815
Product description:

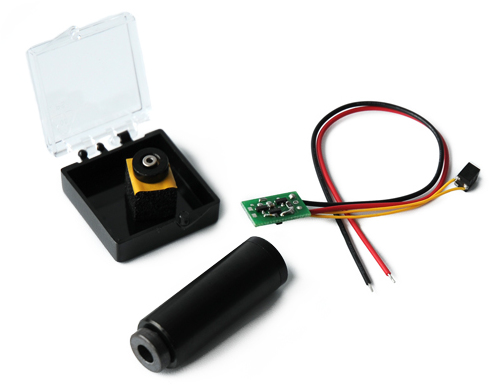

Lasermodule KIT, focusable, red, 650nm, 10mW Diode, 3V DC, 14x45mm, class 3B with driver and aluminium housing.
• uniform illumination
• Operating Voltage 3 V DC
• Laser Class 3B
• compact size
• adjustable focus
Product description:
Lasermodule KIT, focusable, red, 650nm, 10mW Diode, 3V DC, 14x45mm, class 3B with driver and aluminium housing.
• uniform illumination
• Operating Voltage 3 V DC
• Laser Class 3B
• compact size
• adjustable focus
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Dot Wavelength 650nm
(rot)Optical Power 10mW Laser Class 3B Divergence 0.5mrad Size of Laserdot adjustable Operating Distance 50m Optics Glass lens AR coated Laser technology diode Size Material aluminium Cable length 100mm Wire type 26AWG, 0,14mm² Focus adjustable Output Aperture 5mm Potential of Housing insulated Lifetime >5000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 30 - 90, typ 60mA Housing Color black Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 10g - Illustration and technical drawing
- Connector pin assignment
Ground:
black GND Positive:
red 3V DC - Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
