DDI635-3-24(16x90)-MOUNT-G

Order number: 70115987

Product description:
isolated Dot lasermodule, red, 635nm, 3mW, 24V DC, 16x90mm, class 3R, cable 3m, with Mount

• glas lenses anti reflex coated
• isolated housing
• Laser Class 3R
• Operating Voltage 24 V DC
• compact size

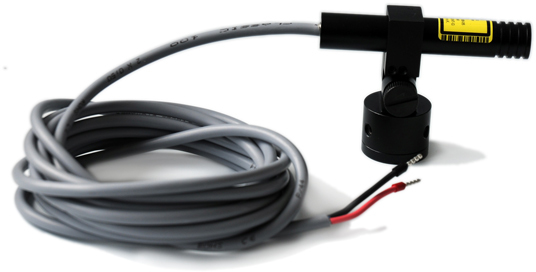

DDI635-3-24(16x90)-MOUNT-G - Hauptbild
Warnlabel 3R
277,23
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength635nm
    (rot)
    Optical Power3mW
    Laser Class3R
    Divergence0.5mrad
    Beam Diameter5mm
    Size of Laserdot1.5mm@1.2m
    Operating Distance1.2m
    OpticsGlass lens AR coated
    Laser technologydiode
    Size
    Materialaluminium
    Cable length3000mm
    Wire typeÖlflex 100 2x0.5mm
    Focusfixed (1200mm)
    Output Aperture5mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage21.6 - 26.4, typ 24V DC
    Operating Current10 - 30, typ 20mA
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight170g
  • Illustration and technical drawing
  • DDI635-3-24(16x90)-MOUNT-G - Hauptbild
    Warnlabel 3R
    Connector pin assignment
    Ground:Cable color Ground: blueblueGND
    Positive:Cable color Positive: brownbrown24V DC
  • Matching accessories
  • LFNT-24-CLFNT-24-C
    Order no.: 70115055
    Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
    SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
    31.85 EUR
