PICOMARK-650-600-110DEG

Order number: 70159394

Product description:
collimated isolated Line lasermodule, red, 110°, 650nm, 600mW, 230V, 80x80mm, class 3B

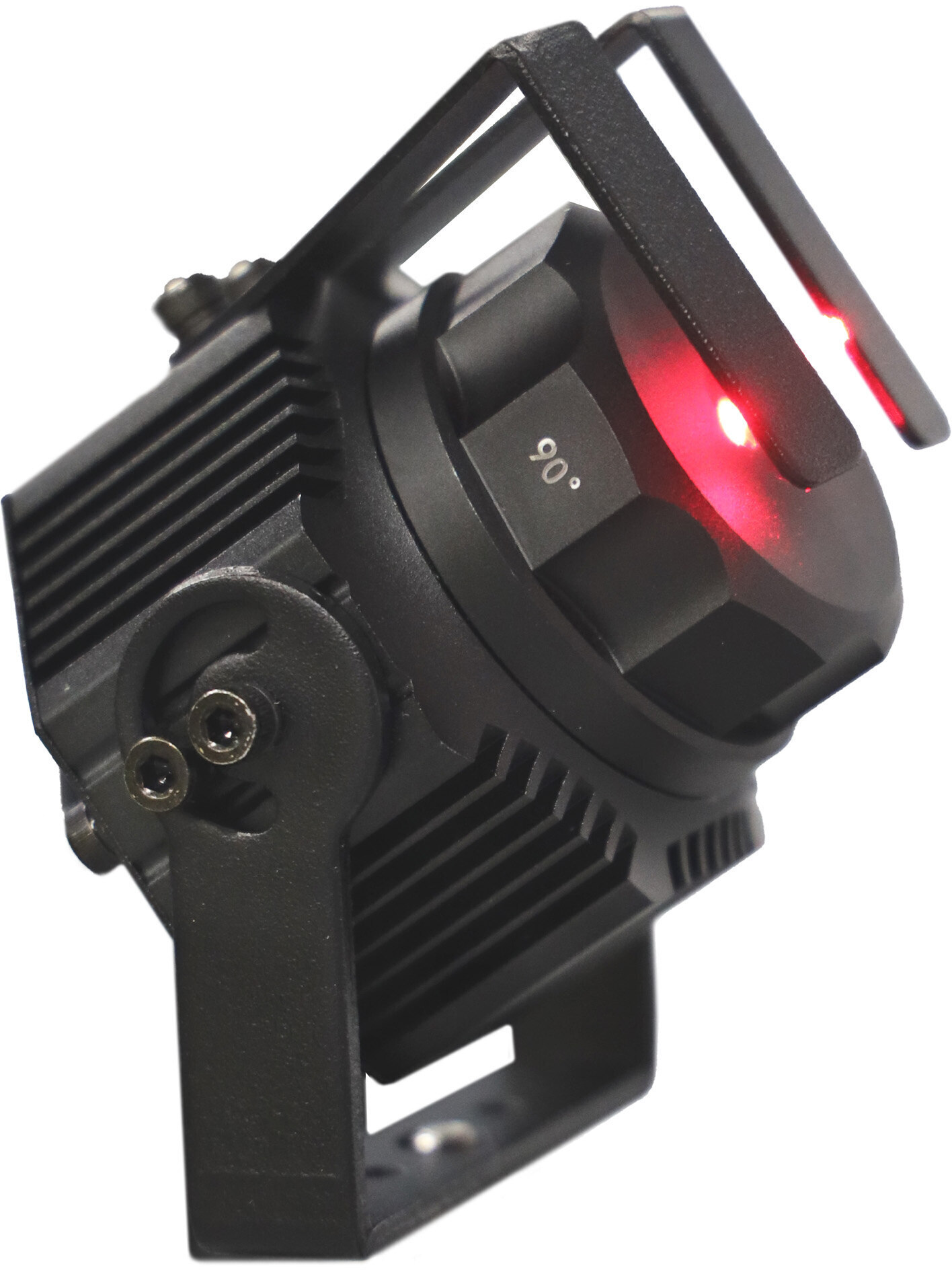

PICOMARK-650-600-110DEG - Produktbild 1

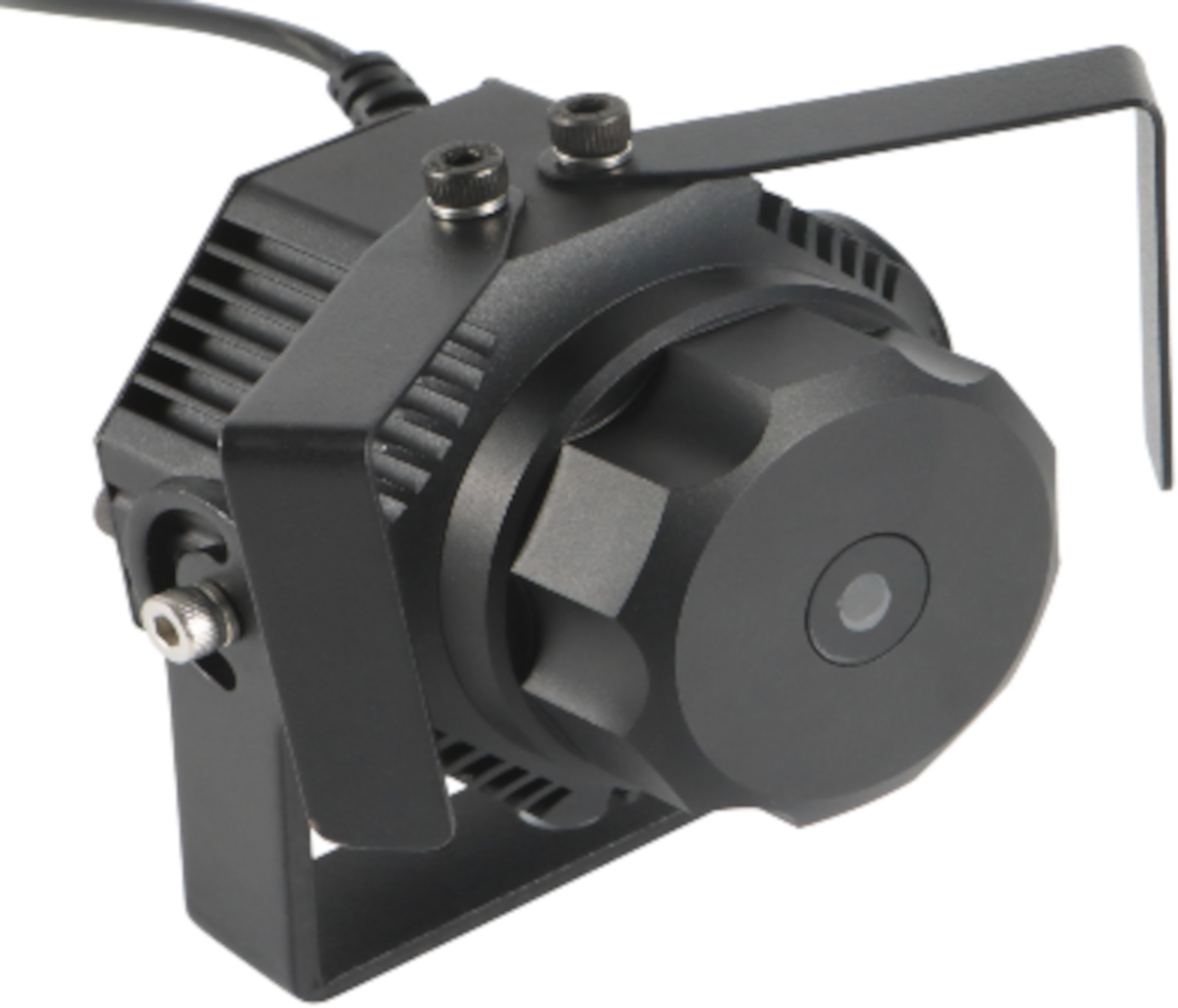

PICOMARK-650-600-110DEG - Hauptbild

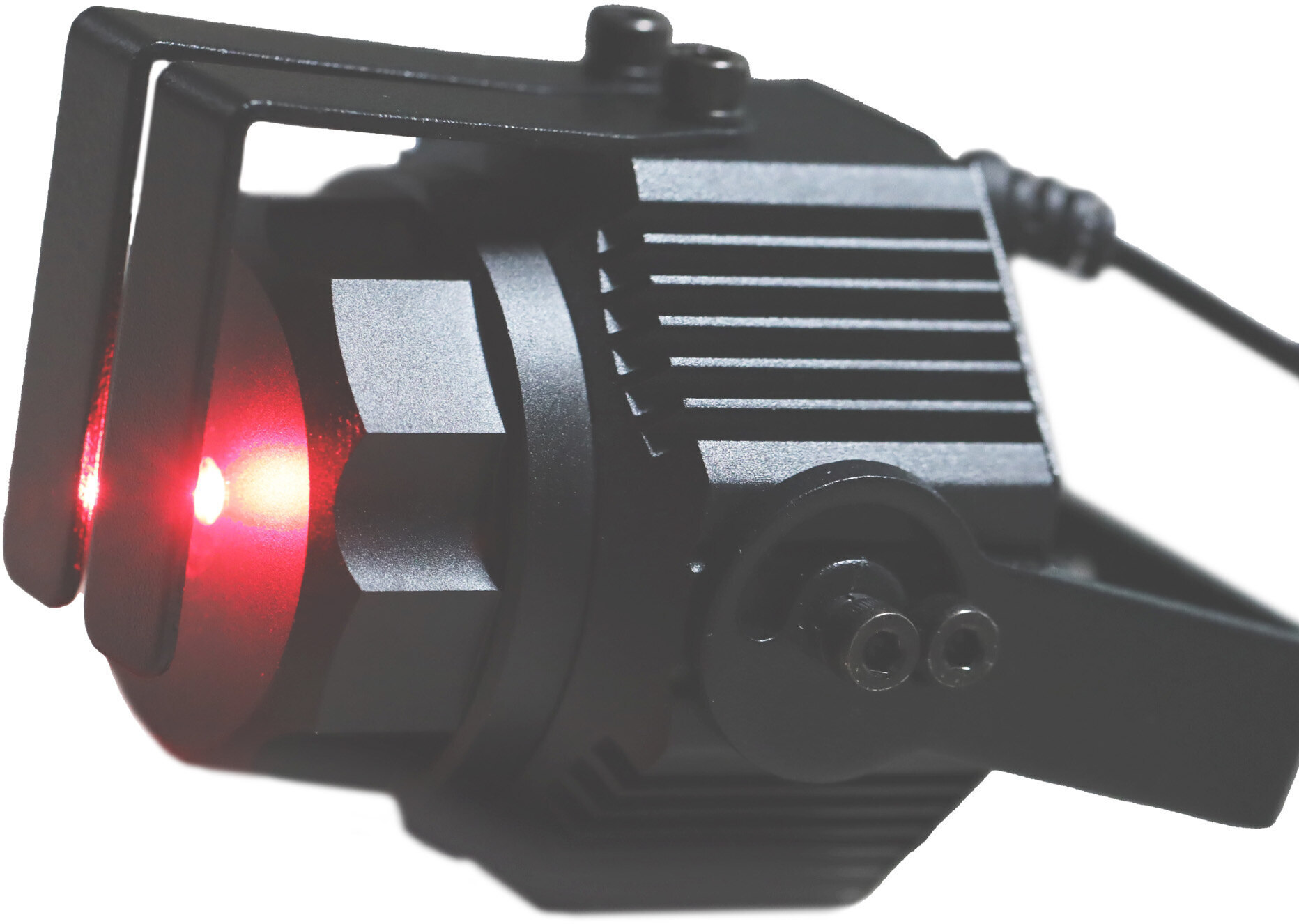

PICOMARK-650-600-110DEG - Produktbild 2

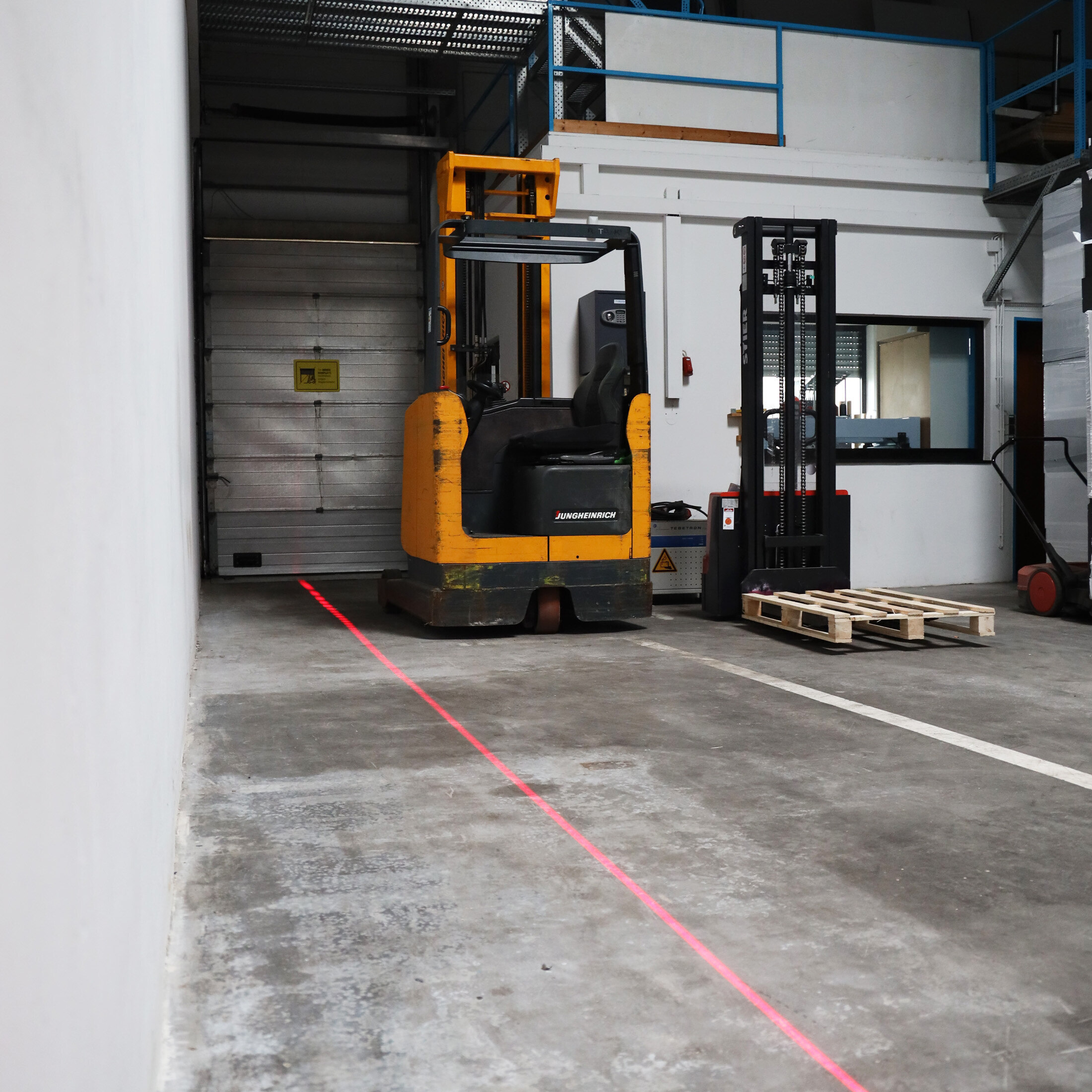

PICOMARK-650-600-110DEG - Produktbild 3

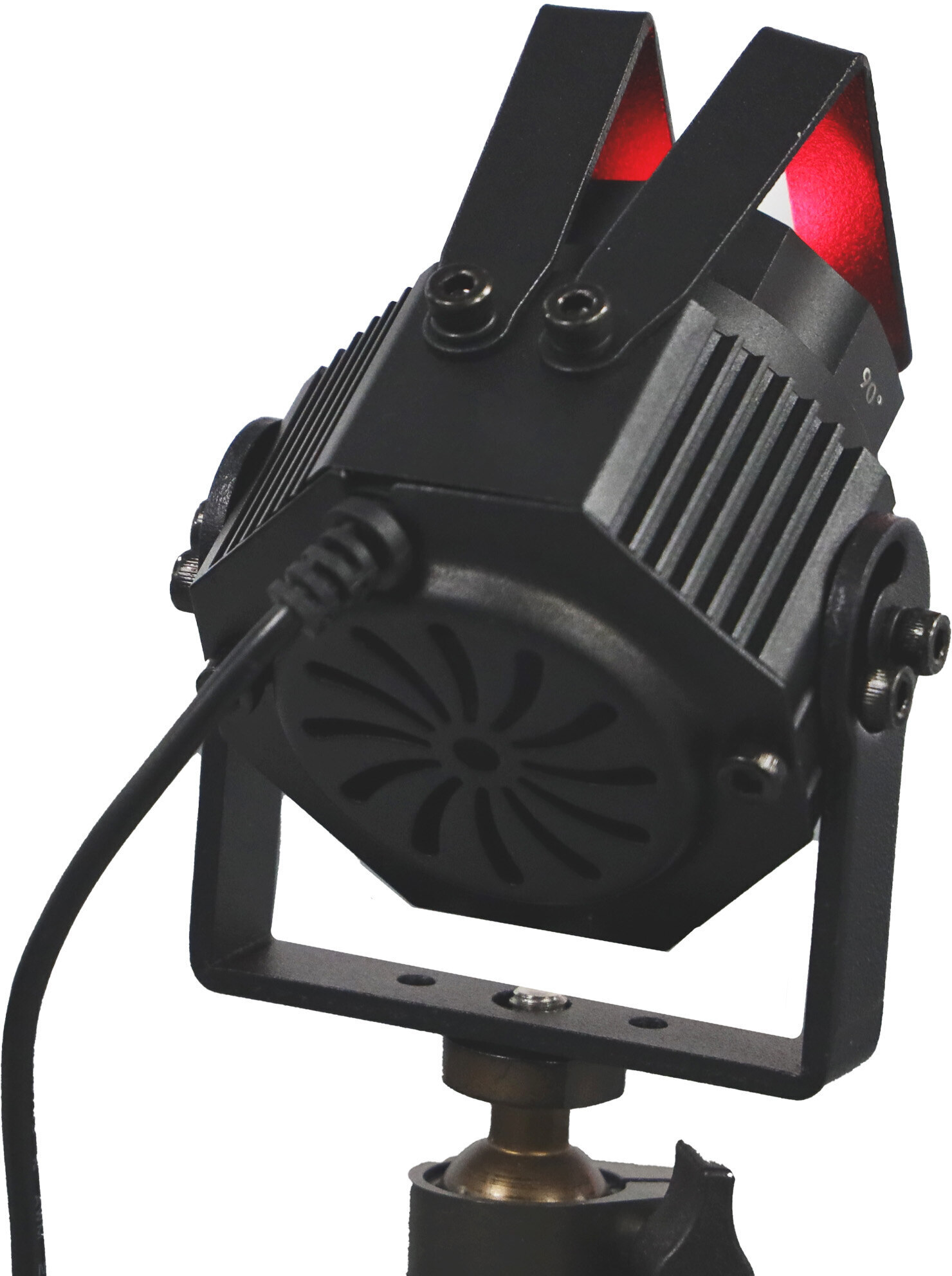

PICOMARK-650-600-110DEG - Produktbild 4
PICOMARK-650-600-110DEG - Produktbild 5
Warnlabel 3B
809,60
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 650nm
    (rot)
    Optical Power 600mW
    Laser Class 3B
    Divergence 1mrad

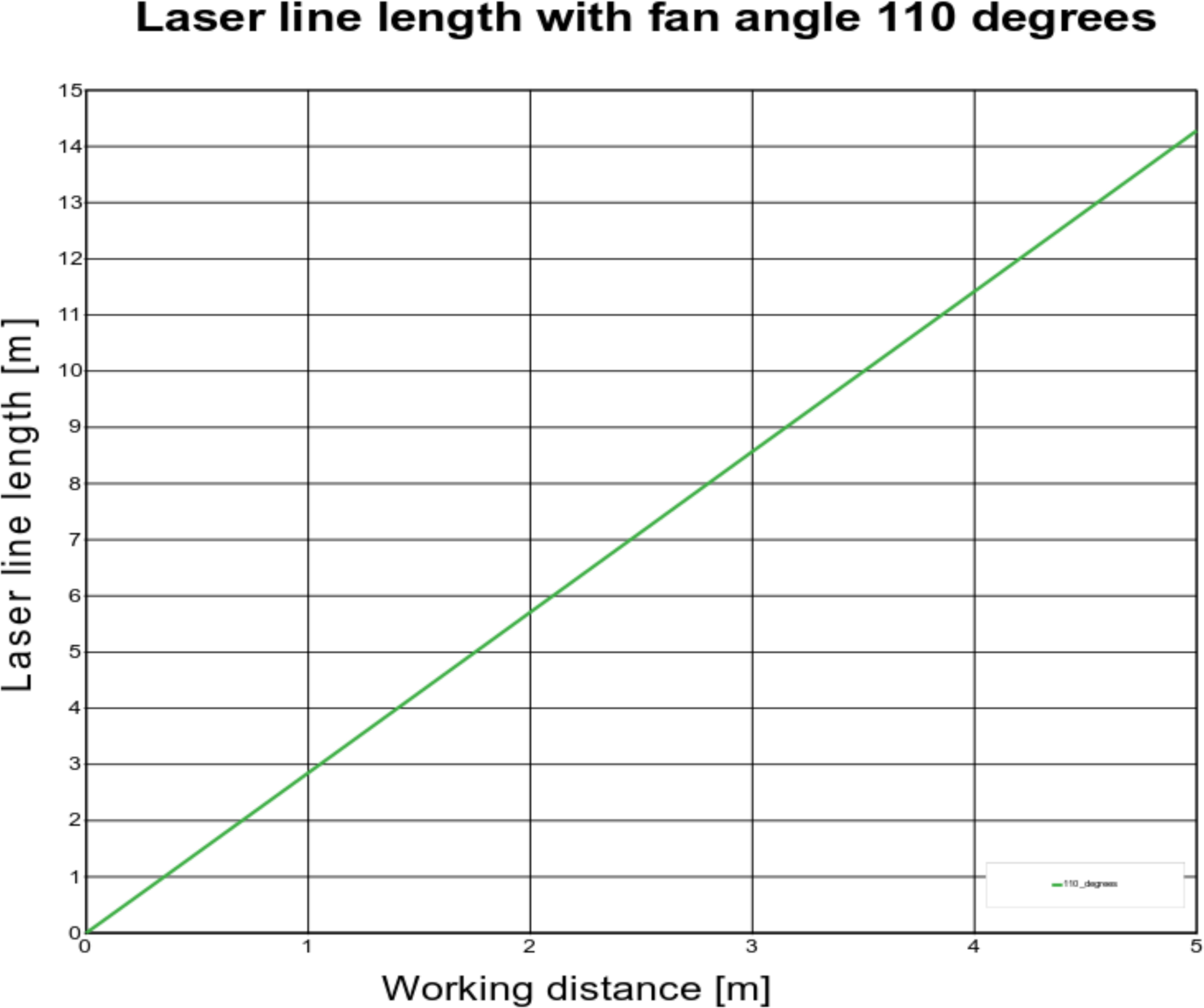

    Fan Angle 110°
    Line Thickness 30mm-80mm
    Operating Distance 3m
    Optics Glass lens AR coated
    Size Ø80mm 80mm
    Material aluminium
    Cable length 5000mm
    Wire type 22AWG, black, 3,6mm
    Focus collimated
    Lifetime >10000h
    Operating Voltage 230V AC
    Operating Current 100 - 400, typ 300mA
    Housing Color black
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 200g
    Protection Class IPIP 67
  • Illustration and technical drawing
  • PICOMARK-650-600-110DEG - Produktbild 1
    PICOMARK-650-600-110DEG - Hauptbild
    PICOMARK-650-600-110DEG - Produktbild 2
    PICOMARK-650-600-110DEG - Produktbild 3
    PICOMARK-650-600-110DEG - Produktbild 4
    PICOMARK-650-600-110DEG - Produktbild 5
    Warnlabel 3B
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred230V DC
  • Matching accessories
  • NF-S-419424-1-16ANF-S-419424-1-16A
    Order no.: 70115031
    Power Line Filter 16A 250V AC, 50/60Hz to protect Lasermodules from voltage peaks
    134.37 EUR
