LB520-5-5(10X20)45-PL

Order number: 70153941

Product description:
Isolated Line lasermodule,green, 45°, 520nm, 5mW, 5V DC, 10x20mm, class 2, PL, driver PCB outside, Vibration (DIN EN 60068-2-6 Standard), Shock (DIN EN 60068-2-29 Standard)

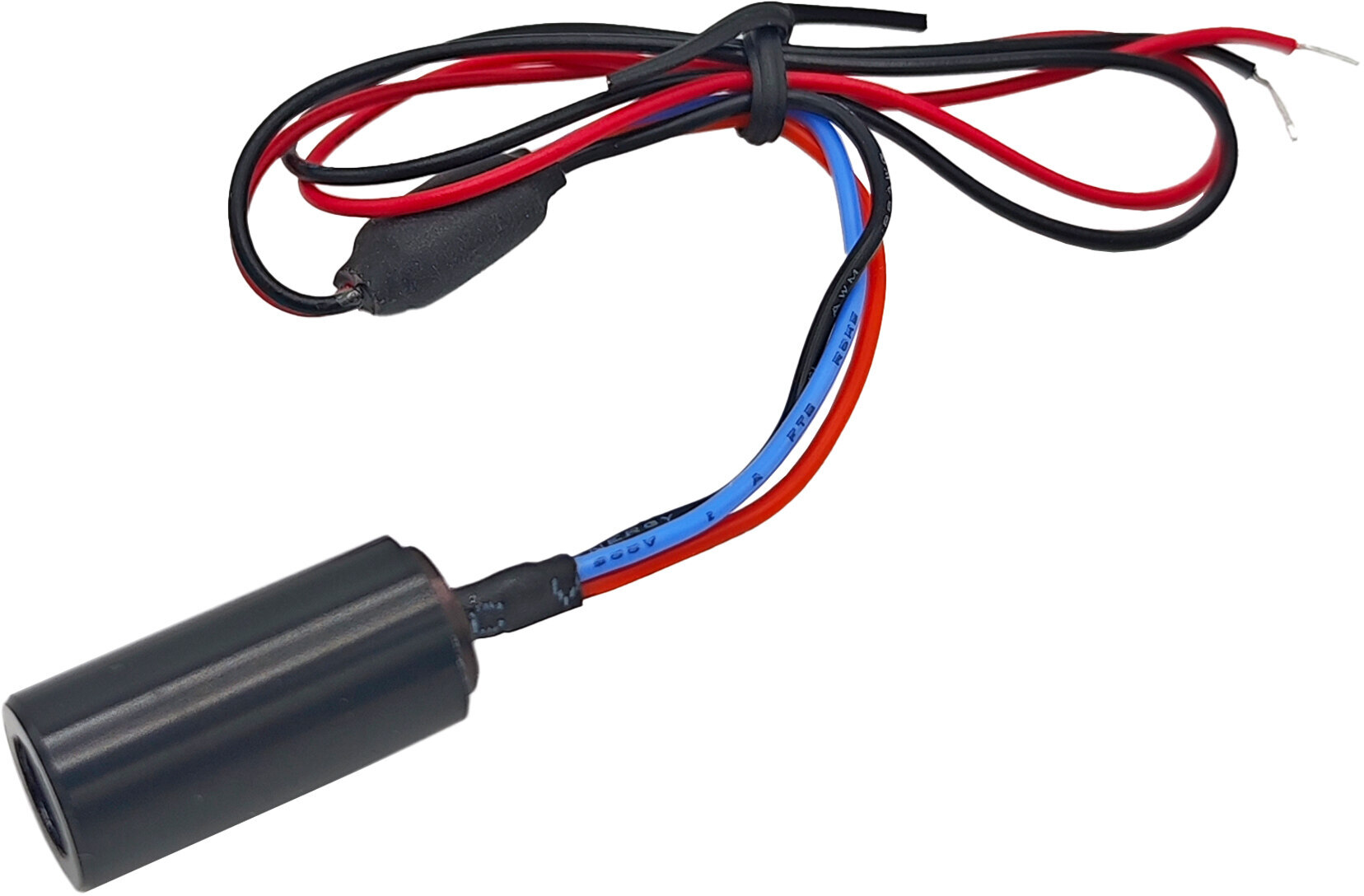

LB520-5-5(10X20)45-PL - Produktbild 1
LB520-5-5(10X20)45-PL - Hauptbild
LB520-5-5(10X20)45-PL - Produktbild 2
Warnlabel 2
226,81
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength520nm
    (grün)
    Optical Power5mW
    Laser Class2
    Divergence0.3mrad
    Beam Diameter4mm
    Fan Angle45°
    Line Thickness<2mm@2.5m
    Operating Distance2.5m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    Protection LensJa
    Size
    Materialaluminium
    Cable length200mm
    Wire type28AWG
    Focusfixed (2500mm)
    Potential of Housinginsulated
    Lifetime>10000h
    Operating Voltage4.5 - 5.5, typ 5V DC
    Operating Current90 - 150, typ 120mA
    Housing Colorblack
    Operating Temperature-20°C - 60°C
    Storage Temperature-40°C - 85°C
    Weight50g

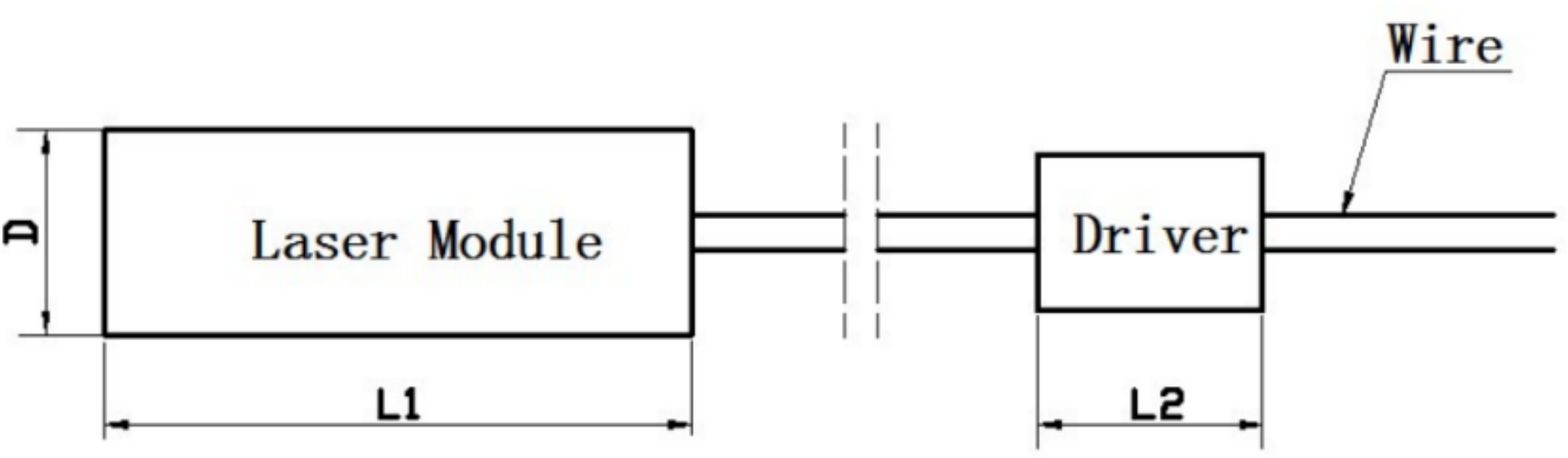

  • Illustration and technical drawing
  • LB520-5-5(10X20)45-PL - Produktbild 1
    LB520-5-5(10X20)45-PL - Hauptbild
    LB520-5-5(10X20)45-PL - Produktbild 2
    Warnlabel 2
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
  • Matching accessories
  • LFNT-5LFNT-5
    Order no.: 70114683
    Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    22.61 EUR
