F640-50-5(14x50)-FIBER3M

Order number: 70149586

Product description:

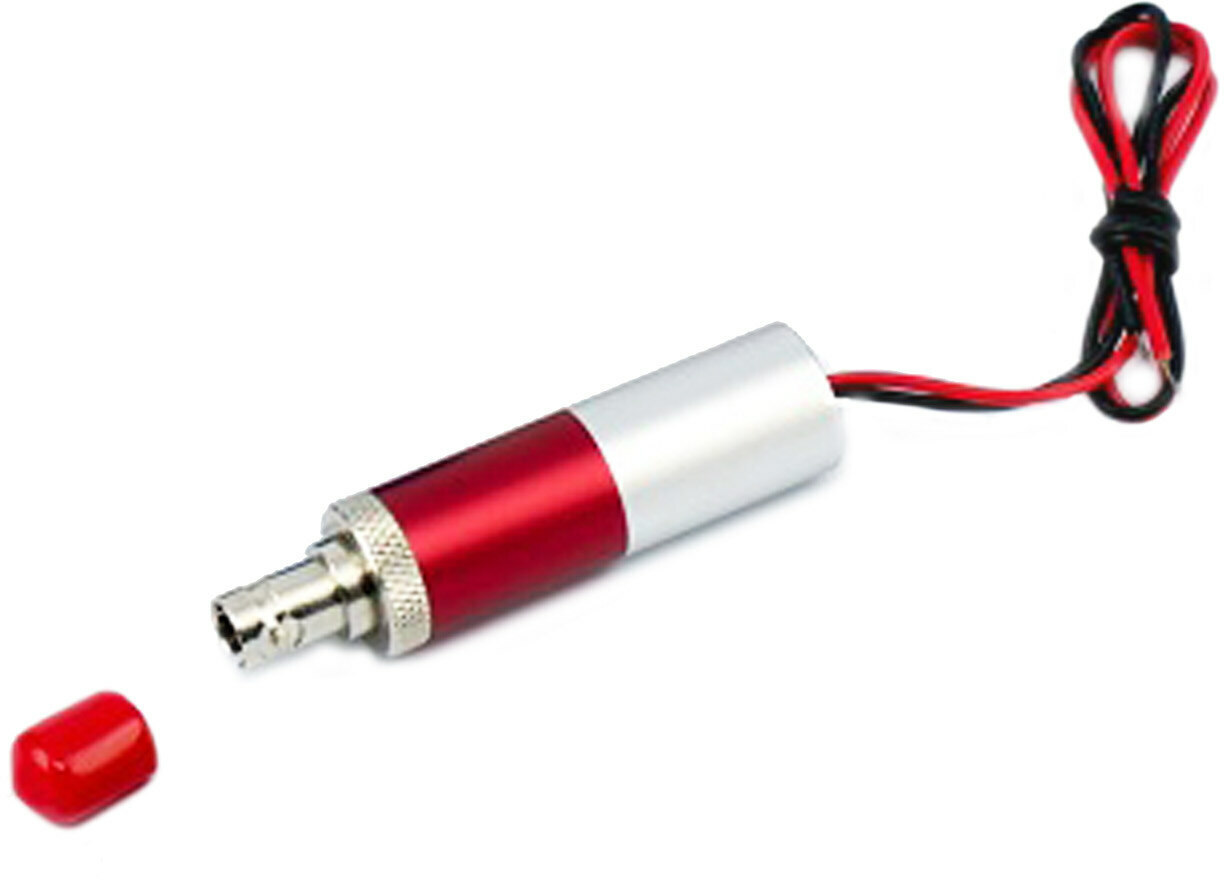

Fiber lasermodule, red, 640nm, 50mW, 5V DC, 14x50mm, class 3B, FC connector, Fiber core diameter 200 µm /0.22N.A., 3m Fiber with FC connector

630,17
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Warranty	1Jahre
Beam Shape	Fiber
Wavelength	640nm (rot)
Optical Power	50mW
Laser Class	3B
Optics	Glass lens AR coated
Beam Mode	TEM00
Laser technology	Single Mode Diode
Size	Ø14mm 50mm
Material	aluminium
Cable length	200mm
Wire type	22AWG, black, 3,6mm
Potential of Housing	insulated
Lifetime	>8000h
Operating Voltage	4.5 - 5, typ 5V DC
Operating Current	100 - 160, typ 130mA
Housing Color	black
Operating Temperature	-10°C - 50°C
Storage Temperature	-40°C - 85°C
Weight	7g
Fiber core diameter	Ø200µm
Fiber length	3m
Fiber included	Ja

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 5V DC
Matching accessories
MULTI-MOUNT-14(45x75)
Order no.: 70114096
Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm
66.30 EUR
Downloads
Data sheet Fax order form
