DOE354-532-10-3-F(12x55)

Order number: 70145786

Product description:
Adjustable DOE Laser, green, 532nm, 10mW, 3V DC, Laser class 2M, 12x55mm, incl. DOE R354

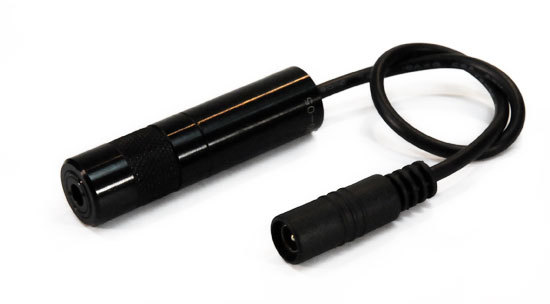

DOE354-532-10-3-F(12x55) - Hauptbild
DOE354-532-10-3-F(12x55) - Rendergrafik
Warnlabel 2M
DOE354-532-10-3-F(12x55) - DOE-Vermaßungsskizze
361,26
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Dot
    Wavelength 532nm
    (grün)
    Optical Power 10mW
    Laser Class 2M
    Divergence 0.5mrad
    Size of Laserdot adjustable
    Operating Distance 5m
    Optics Glass lens AR coated
    Beam Mode TEM00
    Laser technology Solid State (YVO4+KTP)
    Stability +/- 20% @ 15-30°C
    Size Ø12mm 55mm
    Material aluminium
    Cable length 200mm
    Wire type 18AWG, black, 3,6mm
    Focus adjustable
    Output Aperture 5mm
    Lifetime >10000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 175 - 525, typ 350mA
    Housing Color black
    Connector 2.5 mm DC socket (GND pole inner)
    Operating Temperature 15°C - 30°C
    Storage Temperature -40°C - 80°C
    Warm up time <15min
    Weight 22g
  • Illustration and technical drawing
  • DOE354-532-10-3-F(12x55) - Hauptbild
    DOE354-532-10-3-F(12x55) - Rendergrafik
    Warnlabel 2M
    DOE354-532-10-3-F(12x55) - DOE-Vermaßungsskizze
  • Matching accessories
  • Mount-12(20x57)Mount-12(20x57)
    Order no.: 70113686
    Mount for Lasermodul 12mm, Diameter 20mm, Height 57mm
    54.54 EUR
