DC635-2.2-3(8x25)

Order number: 70100112

Product description:
focusable isolated Dot lasermodule, red, 635nm, 2.2mW, 3V DC, 8x25mm, class 3R

• Operating Voltage 3 V DC
• Laser Class 3R
• adjustable focus
• low power consumption
• compact size
DC635-2.2-3(8x25) - Hauptbild
DC635-2.2-3(8x25) - Rendergrafik
DC635-2.2-3(8x25) - Zeichnung
DC635-2.2-3(8x25) - Zeichnung Front
DC635-2.2-3(8x25) - Zeichnung isometrisch
Warnlabel 3R
44,45
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Dot
    Wavelength 635nm
    (rot)
    Optical Power 2.2mW
    Laser Class 3R
    Divergence 0.4mrad
    Size of Laserdot adjustable
    Operating Distance 20m
    Optics Glass lens AR coated
    Laser technology diode
    Size Ø8mm 25mm
    Material aluminium
    Cable length 100mm
    Focus adjustable
    Output Aperture 3.5mm
    Potential of Housing insulated
    Lifetime >5000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 25 - 70, typ 45mA
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 3g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
  • Illustration and technical drawing
  • DC635-2.2-3(8x25) - Hauptbild
    DC635-2.2-3(8x25) - Rendergrafik

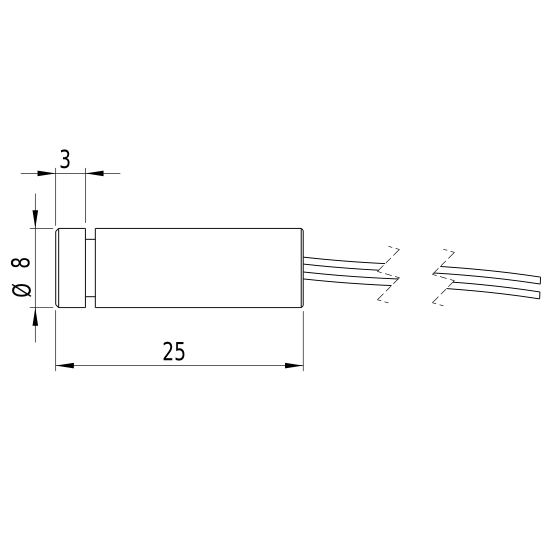

    DC635-2.2-3(8x25) - Zeichnung

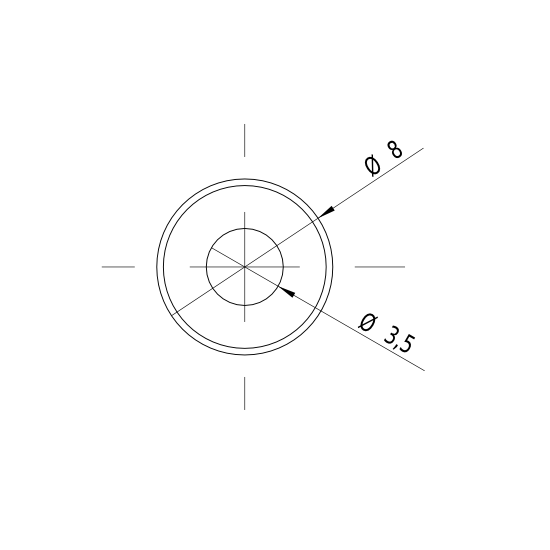

    DC635-2.2-3(8x25) - Zeichnung Front

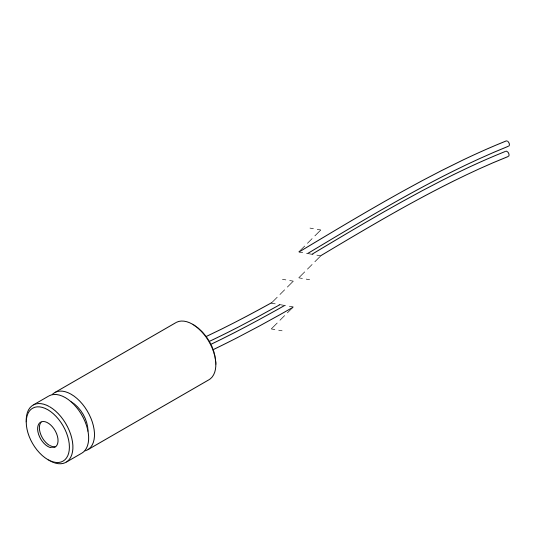

    DC635-2.2-3(8x25) - Zeichnung isometrisch
    Warnlabel 3R
    Connector pin assignment
    Ground:Cable color Ground: blueblueGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • MULTI-MOUNT-08(45x75)MULTI-MOUNT-08(45x75)
    Order no.: 70112481
    Mount for Lasermodul 8mm, Diameter 45mm, Height 75mm
    61.26 EUR
