LB660-50-5(19X95)110DEG-PWL

Order number: 70145083

Product description:
Line laser, 110°, red, 660nm, 50mW, 5V DC, 19x95 mm, thermal shutdown @50°C, adjustable focus, 130mW laser diode

• Operating Voltage 5 V DC
• Laser Class 3R
• adjustable focus
• high power

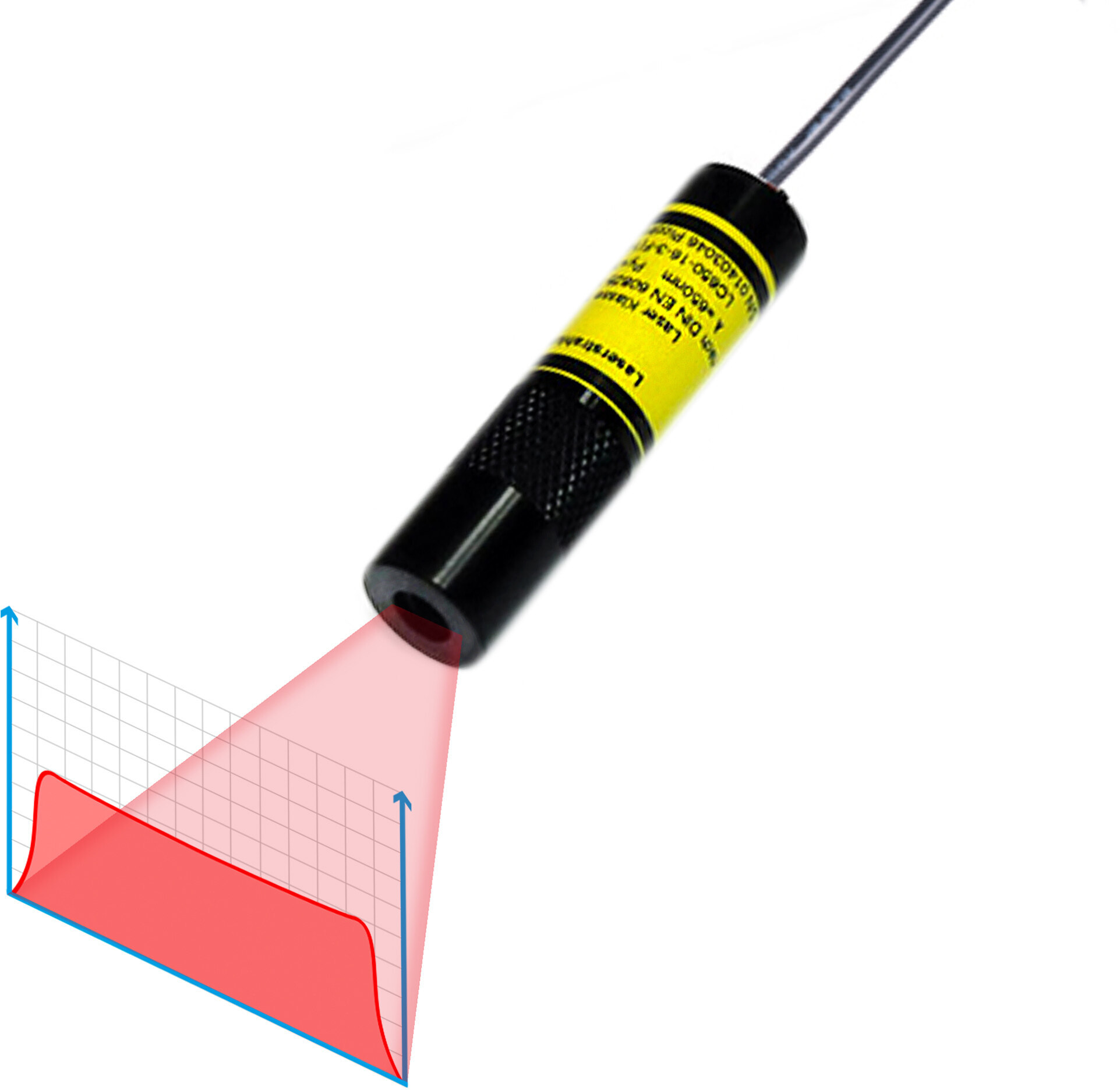

LB660-50-5(19X95)110DEG-PWL - Hauptbild
LB660-50-5(19X95)110DEG-PWL - Produktbild 1
LB660-50-5(19X95)110DEG-PWL - Rendergrafik
Warnlabel 3R
848,66
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength660nm
    (rot)
    Optical Power50mW
    Laser Class3R
    Divergence0.3mrad
    Fan Angle110°
    Line Thickness0.2mm@100mm
    OpticsPowell Lens
    Laser technologySingle Mode Diode
    Protection LensJa
    Axial Divergence±0.2°
    SizeØ19mm 95mm
    Materialaluminium
    Cable length950mm
    Wire typeBelden 9533
    Focusadjustable
    Output Aperture6.8mm
    Potential of Housinginsulated
    Lifetime>10000h
    Operating Voltage4.5 - 5.5, typ 5V DC
    Operating Current50 - 200, typ 100mA
    Housing Colorblack
    Connector2.5 mm DC socket (+ pole inner)
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight70g
    Power SupplyPower Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
  • Illustration and technical drawing
  • LB660-50-5(19X95)110DEG-PWL - Hauptbild
    LB660-50-5(19X95)110DEG-PWL - Produktbild 1
    LB660-50-5(19X95)110DEG-PWL - Rendergrafik
    Warnlabel 3R
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
  • Matching accessories
  • MULTI-MOUNT-19(45x75)MULTI-MOUNT-19(45x75)
    Order no.: 70115192
    Mount for Lasermodul 19mm, Diameter 45mm, Height 75mm
    66.30 EUR
