MLH940-50-5(18x60)45-PWL-F400-P
Order number: 70144109
Product description:

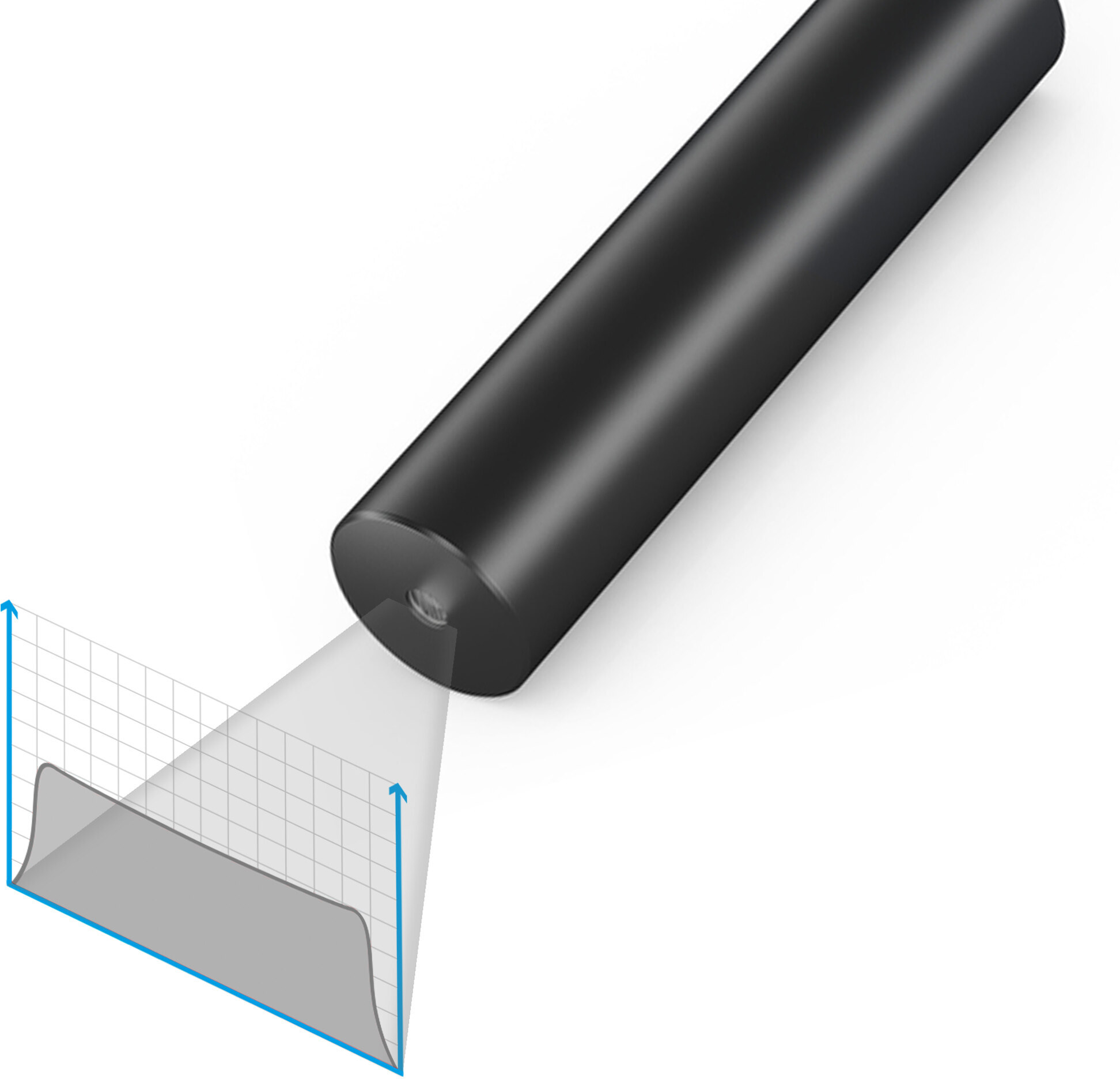

line laser, infrared, 45°, 940nm, 50mW, 5V DC, 18x60mm, class 3R, uniform line distribution, Powell lens, Focus 400mm, Output power control: 0-5V, TTL modulation
• Powell Lens
• Uniform line distribution
• Image processing
Product description:
line laser, infrared, 45°, 940nm, 50mW, 5V DC, 18x60mm, class 3R, uniform line distribution, Powell lens, Focus 400mm, Output power control: 0-5V, TTL modulation
• Powell Lens
• Uniform line distribution
• Image processing
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Line Wavelength 940nm
(infrarot)Optical Power 50mW Laser Class 3R Divergence 1mrad Fan Angle 45° Line Thickness <1mm@0.4m Operating Distance 0.4m Optics Powell Lens Laser technology Single Mode Diode Opt. Power Stability at const. Temp. <5% Axial Divergence ±1° Size Ø18mm 60mm Material aluminium Cable length 200mm Wire type 28AWG, Typ 1571 Focus fixed (400mm) Output Aperture 4mm Potential of Housing insulated Lifetime >10000h Operating Voltage 4.5 - 5, typ 5V DC Operating Current 50 - 250, typ 140mA Housing Color black Operating Temperature -20°C - 60°C Storage Temperature -40°C - 85°C Weight 20g Stripping of wire 5mm - Illustration and technical drawing
- Connector pin assignment
Ground:
black GND Positive:
red 5V DC Modulation:
green - Matching accessories
MULTI-MOUNT-18(45x75)
Order no.: 70114119
Mount for Lasermodul 18mm, Diameter 45mm, Height 75mm
66.30 EUR- Downloads
