PICO-LPG-850-2200
Order number: 70158359
Product description:

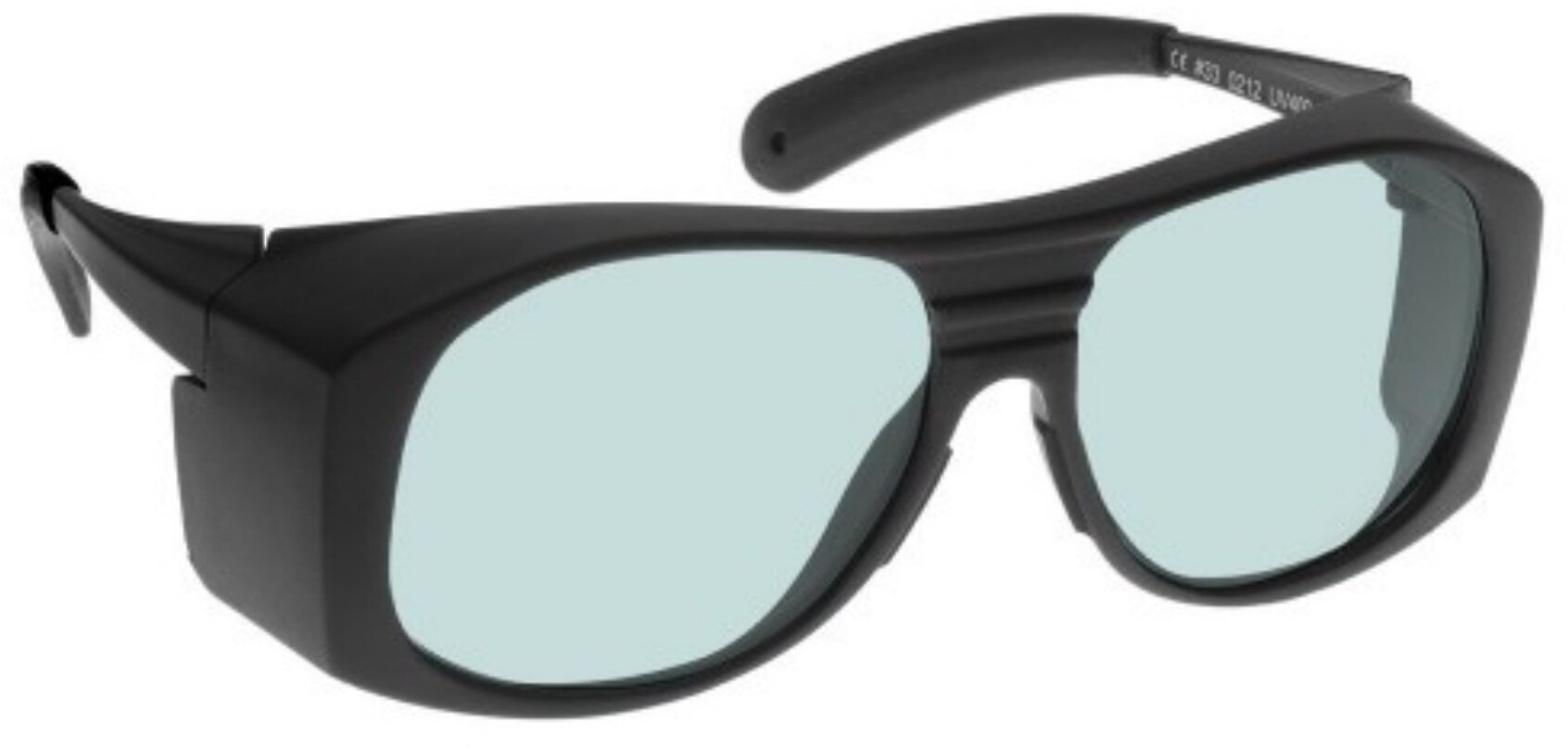

Laser Safety Eyewear, complete protection, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, CE Certified ,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
* ● Wavelength: 850-900nm, lb rating DIR LB3 ● Wavelength: >950-1000nm + >1400-2200nm, lb rating DIR LB4 ● Wavelength: >950-1000nm, lb rating DIR LB5 ● Wavelength: 1000-1063nm, lb rating DIRM LB6
* ● Wavelength: >1063-1400nm, lb rating D LB6 + IRM LB7Y ● Wavelength: 2900-3200nm + 10600nm, lb rating DI LB4
* Especially suitable for: Laser INFRARED 850-2200nm
• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and Side-shields for wide field of view
• CE Certified EN 207
• with Picotronic Logo imprint
Product description:
Laser Safety Eyewear, complete protection, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, CE Certified ,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
* ● Wavelength: 850-900nm, lb rating DIR LB3 ● Wavelength: >950-1000nm + >1400-2200nm, lb rating DIR LB4 ● Wavelength: >950-1000nm, lb rating DIR LB5 ● Wavelength: 1000-1063nm, lb rating DIRM LB6
* ● Wavelength: >1063-1400nm, lb rating D LB6 + IRM LB7Y ● Wavelength: 2900-3200nm + 10600nm, lb rating DI LB4
* Especially suitable for: Laser INFRARED 850-2200nm
• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and Side-shields for wide field of view
• CE Certified EN 207
• with Picotronic Logo imprint
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Size 145 x 144 x 50mm Material Glass Housing Color black Operating Temperature -50°C - 85°C Storage Temperature -50°C - 80°C Weight 10g Luminous transmittance 0.75% LB Rating 850-900 DIR LB3+M LB3Y
>900-950 DIR LB4+M LB4Y
>950-1000 DIR LB5+M LB5Y
>1000-1063 DIR LB6+M LB6Y
>1063-1400 D LB6+IR LB7+M LB7Y
>1400-1600 DIR LB4+M LB2
>1600-2200 DIR LB4
2900-3200 DI LB4
9000-11000 DI LB4Lens Color Klar - Illustration and technical drawing
