DC650-0.4-3(8x25)-C1000
Order number: 70142143
Product description:

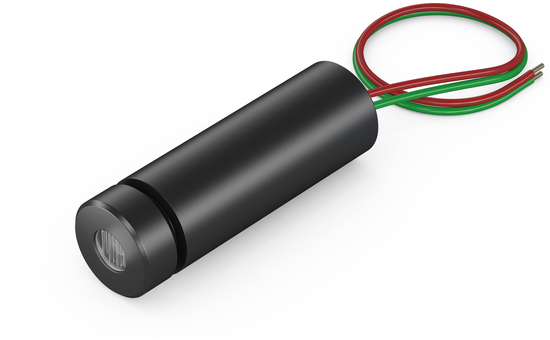

focusable isolated Dot lasermodule, red, 650nm, 0.4mW, 3V DC, 8x25mm, class 1, cable length 1000 mm
• Operating Voltage 3 V DC
• Laser Class 1
• low power consumption
• compact size
• adjustable focus
Product description:
focusable isolated Dot lasermodule, red, 650nm, 0.4mW, 3V DC, 8x25mm, class 1, cable length 1000 mm
• Operating Voltage 3 V DC
• Laser Class 1
• low power consumption
• compact size
• adjustable focus
.png "DC650-0.4-3(8x25)-C1000 - Zeichnung")
.png "DC650-0.4-3(8x25)-C1000 - Zeichnung Front")
.png "DC650-0.4-3(8x25)-C1000 - Zeichnung isometrisch")
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Dot Wavelength 650nm
(rot)Optical Power 0.4mW Laser Class 1 Divergence 0.4mrad Size of Laserdot <1mm@1m Operating Distance 5m Optics Glass lens AR coated Laser technology Single Mode Diode Size Ø8mm 25mm Material aluminium Cable length 1000mm Wire type 24AWG, black, 3mm Focus adjustable Output Aperture 3.5mm Potential of Housing insulated Lifetime >5000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 10 - 30, typ 18mA Housing Color black Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 3.5g Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Stripping of wire 5mm - Illustration and technical drawing
- Connector pin assignment
Ground:
blue GND Positive:
brown 3V DC - Matching accessories
MULTI-MOUNT-08(45x75)
Order no.: 70112481
Mount for Lasermodul 8mm, Diameter 45mm, Height 75mm
61.26 EUR- Downloads
