E850-45-5(22x27)

Order number: 70141184

Product description:
Expander lasermodule, infrared Laserdiode, 850nm, 45mW, 22x27mm, Laser Class 1M

• Operating Voltage 5 V DC
• compact size
• Laser Class 1M
• High Power

193,19
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Dot
Wavelength	850nm (infrarot)
Optical Power	45mW
Laser Class	1M
Size of Laserdot	2m@10m
Operating Distance	10m
Optics	Glass lens AR coated
Laser technology	Multi Mode Diode
Size
Material	Bronze
Cable length	115mm
Focus	fixed (10.0m)
Output Aperture	12.5mm
Potential of Housing	VDD(+)
Lifetime	>10000h
Operating Voltage	4 - 6, typ 5V DC
Operating Current	80 - 110, typ 95mA
Housing Color	brass
Operating Temperature	-10°C - 50°C
Storage Temperature	-20°C - 60°C
Weight	50g
Power Supply	Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
Bracket	LF-BRACKET09

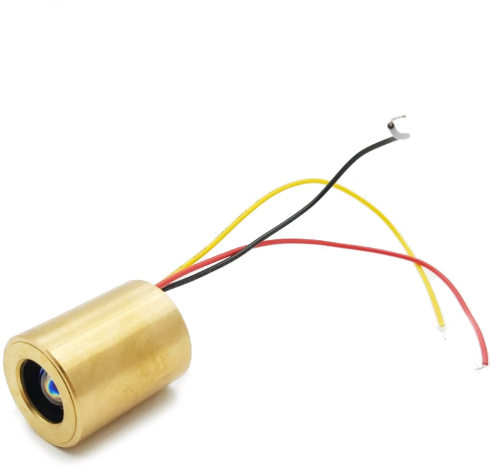

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 5V DC
Matching accessories
LFNT-5
Order no.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR
