DP635-0.3-5(10.6x12.2)-F50

Order number: 70140927

Product description:
Dot lasermodule, red, 635nm, 0.3mW, 5V DC, 10.6x12.2mm, class 1

• compact size
• Laser Class 1
• low power consumption
• Operating Voltage 3-6V DC

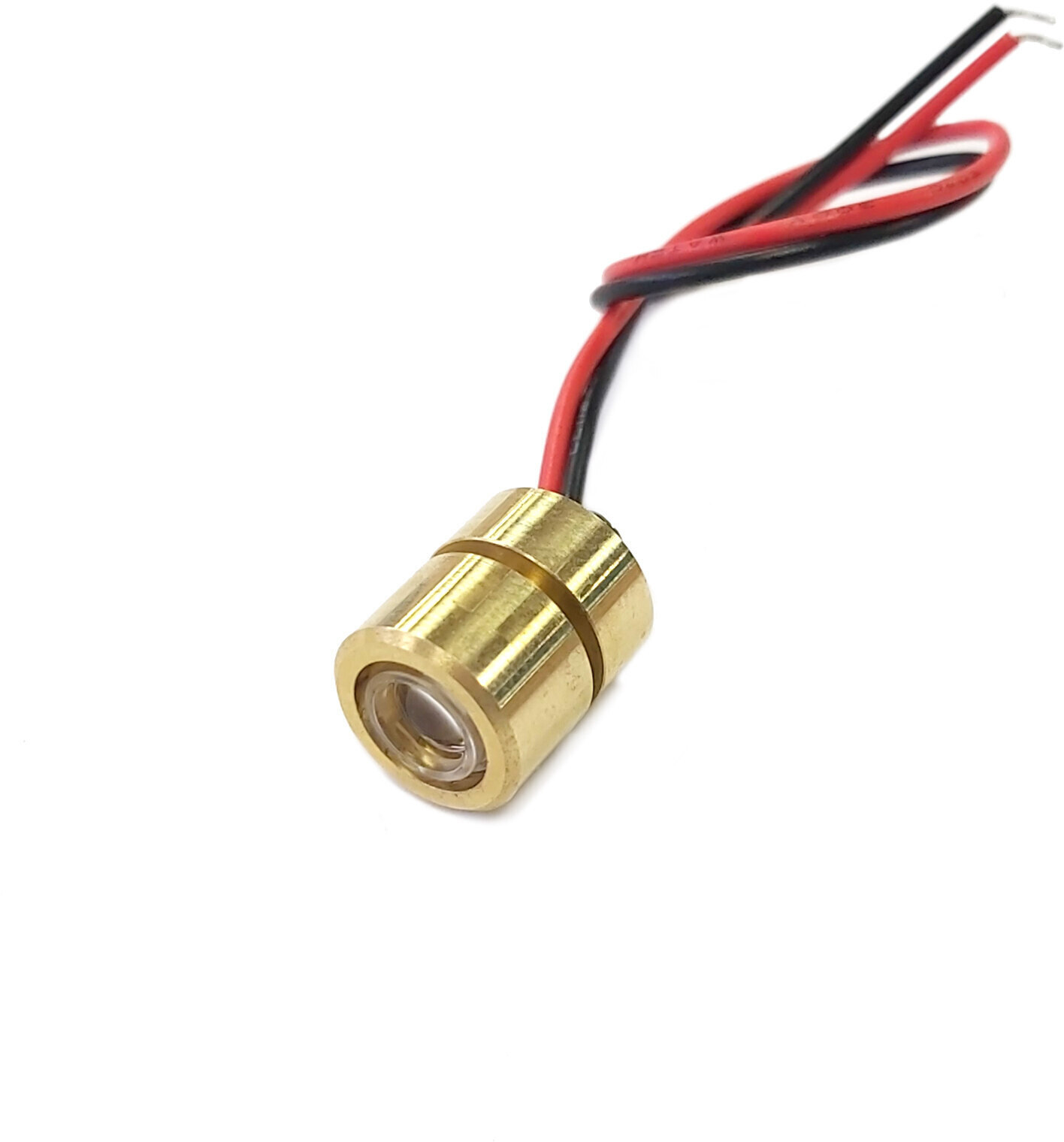

DP635-0.3-5(10.6x12.2)-F50 - Hauptbild
Warnlabel 1
81,43
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Dot
    Wavelength 635nm
    (rot)
    Optical Power 0.3mW
    Laser Class 1
    Divergence 5mrad
    Size of Laserdot 0.05x0.04mm@0.05m
    Operating Distance 0.05m
    Optics acryl lense
    Laser technology diode
    Size Ø10.6mm 12.2mm
    Material Bronze
    Cable length 115mm
    Wire type 26AWG, UL, isolated
    Focus fixed (50mm)
    Output Aperture 5mm
    Potential of Housing VDD(+)
    Lifetime >10000h
    Operating Voltage 3 - 6, typ 5V DC
    Operating Current 10 - 40, typ 30mA
    Housing Color brass
    Operating Temperature -10°C - 50°C
    Storage Temperature -20°C - 60°C
    Weight 5g
    Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    Stripping of wire 3mm
  • Illustration and technical drawing
  • DP635-0.3-5(10.6x12.2)-F50 - Hauptbild
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
