DBI650-1-3-FA(12x40)-C1800

Order number: 70137941

Product description:
isolated Dot lasermodule, red, 650nm, 1mW, 3V DC, 12x40mm, class 2

• Operating Voltage 3 V DC
• isolated housing
• Laser Class 2
• fixed focus
• compact size

DBI650-1-3-FA(12x40)-C1800 - Rendergrafik

DBI650-1-3-FA(12x40)-C1800 - Zeichnung Front

DBI650-1-3-FA(12x40)-C1800 - Zeichnung isometrisch

58,74
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Dot
Wavelength	650nm (rot)
Optical Power	1mW
Laser Class	2
Divergence	0.3mrad
Operating Distance	10m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	aluminium
Cable length	1800mm
Wire type	18AWG, black, 3,6mm
Focus	collimated
Output Aperture	5mm
Potential of Housing	insulated
Lifetime	>10000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	10 - 30, typ 21mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	10.5g
Stripping of wire	5mm

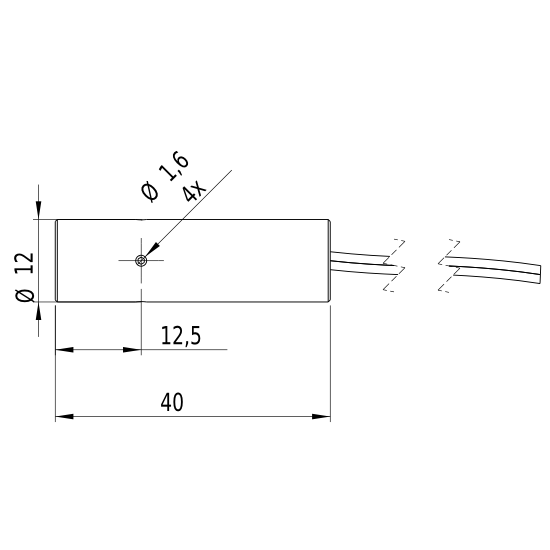

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 3V DC
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
