DOE-DE-R351

Order number: 70137774

Product description:
Diffractive Optical Element DOE Matrix 10 x 10 Dots - 23,8° @ 532nm PC 8x1.2mm

49,50
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Warranty	1Jahre
Size	Ø11mm 4mm
Weight	1g
Alpha	23.8°
Beta	14°
Gamma	1.89°
Delta	14°
a	42.2mm
b	29.8mm
c	3.32mm
d	29.8mm
Diameter (without holder)	8mm
Material	PC

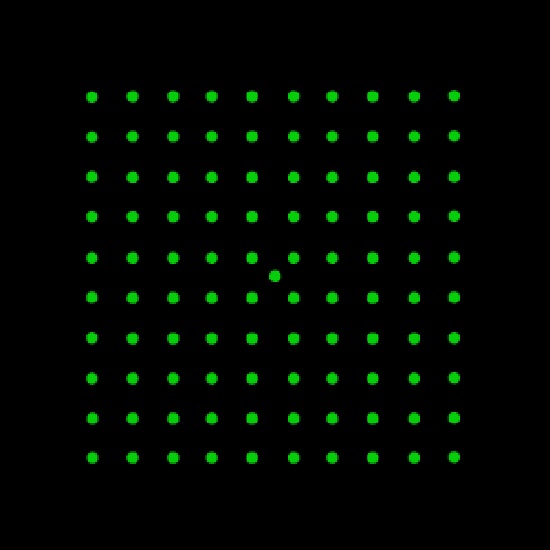

Illustration and technical drawing
Downloads
Data sheet Fax order form
