LFL520-5-3(19x86)90

Order number: 70136081

Product description:
Line Pointer green 90° 5mW with CR123A

• Laser Class 1
• with battery
• compact size
• uniform line thickness
• low cost

69,66
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	520nm (grün)
Optical Power	5mW
Laser Class	1
Divergence	1mrad
Fan Angle	90°
Line Thickness	<1.2mm@1m
Operating Distance	1m
Optics	acryl lense
Laser technology	Single Mode Diode
Axial Divergence	±3°
Size
Material	aluminium
Focus	fixed (1000mm)
Output Aperture	6mm
Potential of Housing	VDD(+)
Lifetime	>3000h
Operating Voltage	3 - 3.7, typ 3V DC
Operating Current	50 - 300, typ 100mA
Battery	CR123A Lithium Battery, 3V 1400mAh
Battery count	1
Operating Temperature	-20°C - 50°C
Storage Temperature	-20°C - 60°C
Weight	25g
Delivery Content	Im Lieferumfang ist eine Batterie vom Typ CR123A enthalten.

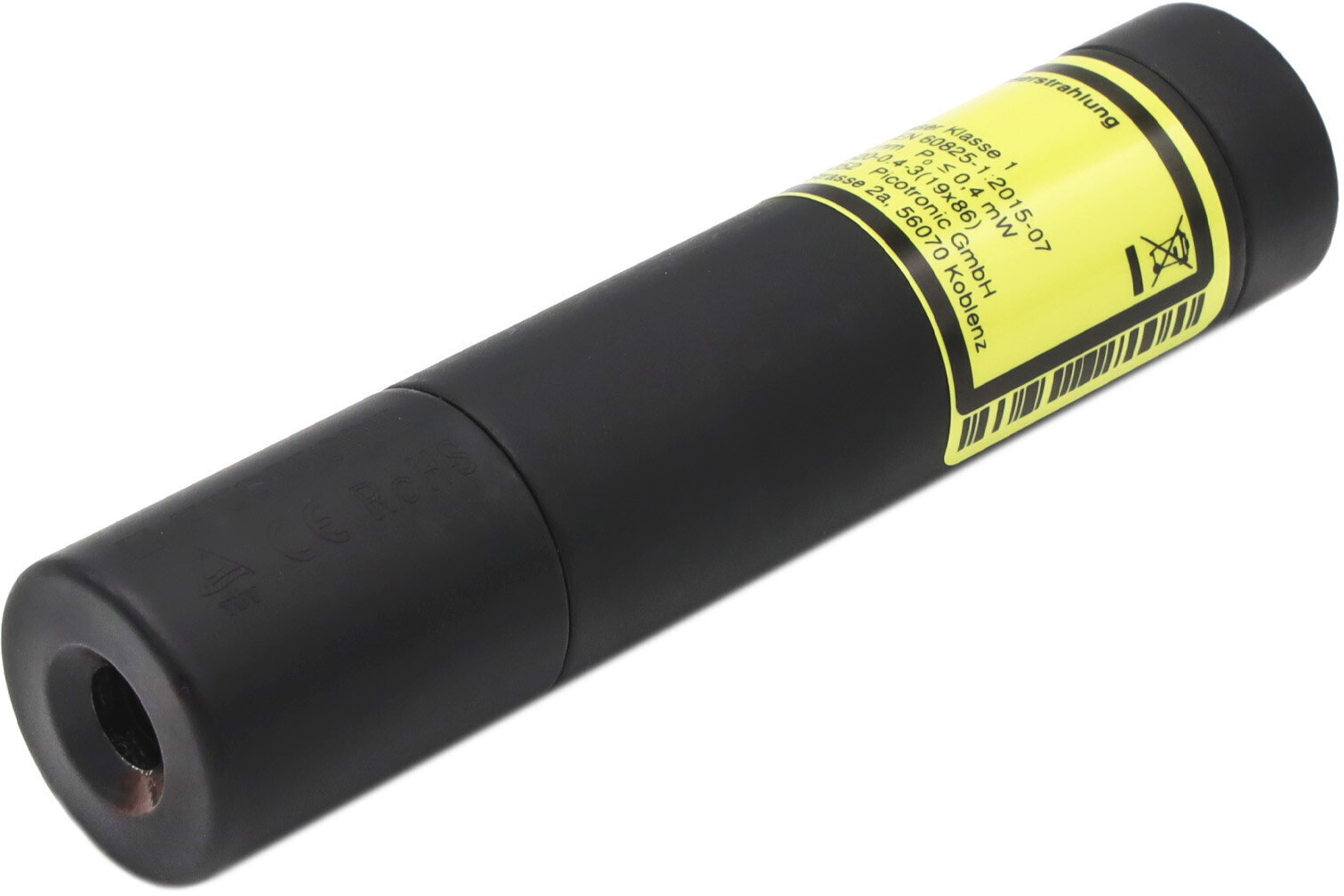

Illustration and technical drawing
Matching accessories
LABEL-DIN-CLASS1-DE
Order no.: 70110821
Safety Label german DIN EN 60825, Class 1, 38x23mm, yellow, PET
0.60 EUR
