LH660-45-5(20x90)110-PWL-ADJ

Order number: 70134742

Product description:
Adjustable isolated Line lasermodule, red, 110°, 660nm, 45mW, uniform line intensity, Powell lens, 5V DC, 20x90mm, class 3R, with connector

• Operating Voltage 5 V DC
• Isolated housing
• Laser Class 3R
• Protection lens
•

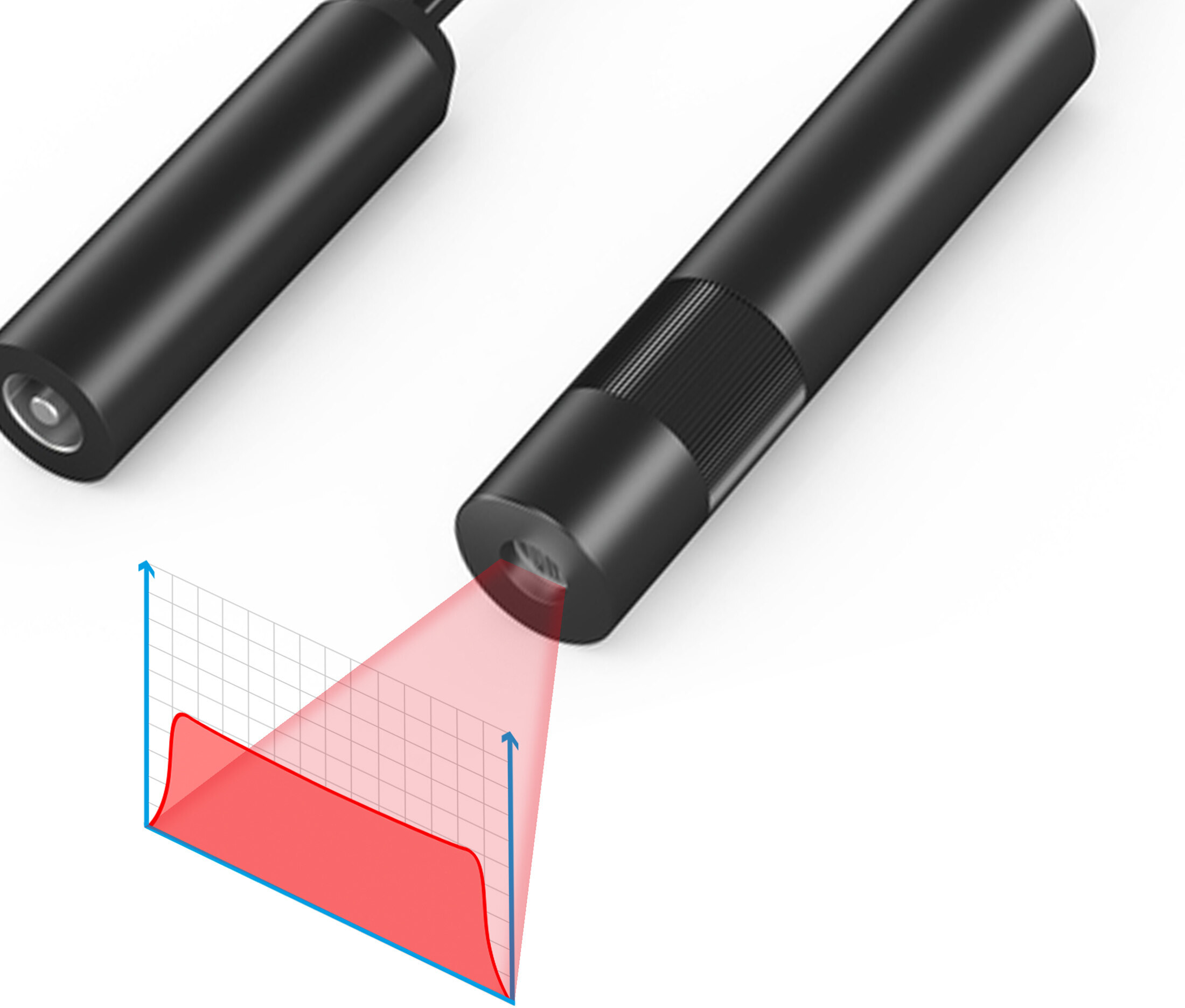

LH660-45-5(20x90)110-PWL-ADJ - Rendergrafik

546,13
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Warranty	1Jahre
Beam Shape	Line
Wavelength	660nm (rot)
Optical Power	45mW
Laser Class	3R
Divergence	1mrad
Fan Angle	110°
Line Thickness	adjustable
Operating Distance	6m
Optics	Powell Lens
Laser technology	Single Mode Diode
Protection Lens	Ja
Size	Ø20mm 90mm
Material	aluminium
Cable length	1000mm
Focus	adjustable
Output Aperture	5.5mm
Potential of Housing	insulated
Lifetime	>10000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	150 - 250, typ 200mA
Housing Color	black
Connector	2.5 mm DC socket (+ pole inner)
Operating Temperature	-10°C - 40°C
Storage Temperature	-40°C - 80°C
Weight	70g
Protection Class	IPIP 54

Illustration and technical drawing
Matching accessories
MULTI-MOUNT-20(45x75)
Order no.: 70112511
Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
61.26 EUR
