LH520-15-24(20x80)-PL-F300

Order number: 70134377

Product description:
isolated Line lasermodule, green, 90°, 520nm, 15mW, 24V DC, 20x80mm, class 2M, focus 300mm, incl. connector

• Operating Voltage 24 V DC
• Laser Class 2M
• uniform line thickness
• High Power
• small laser head

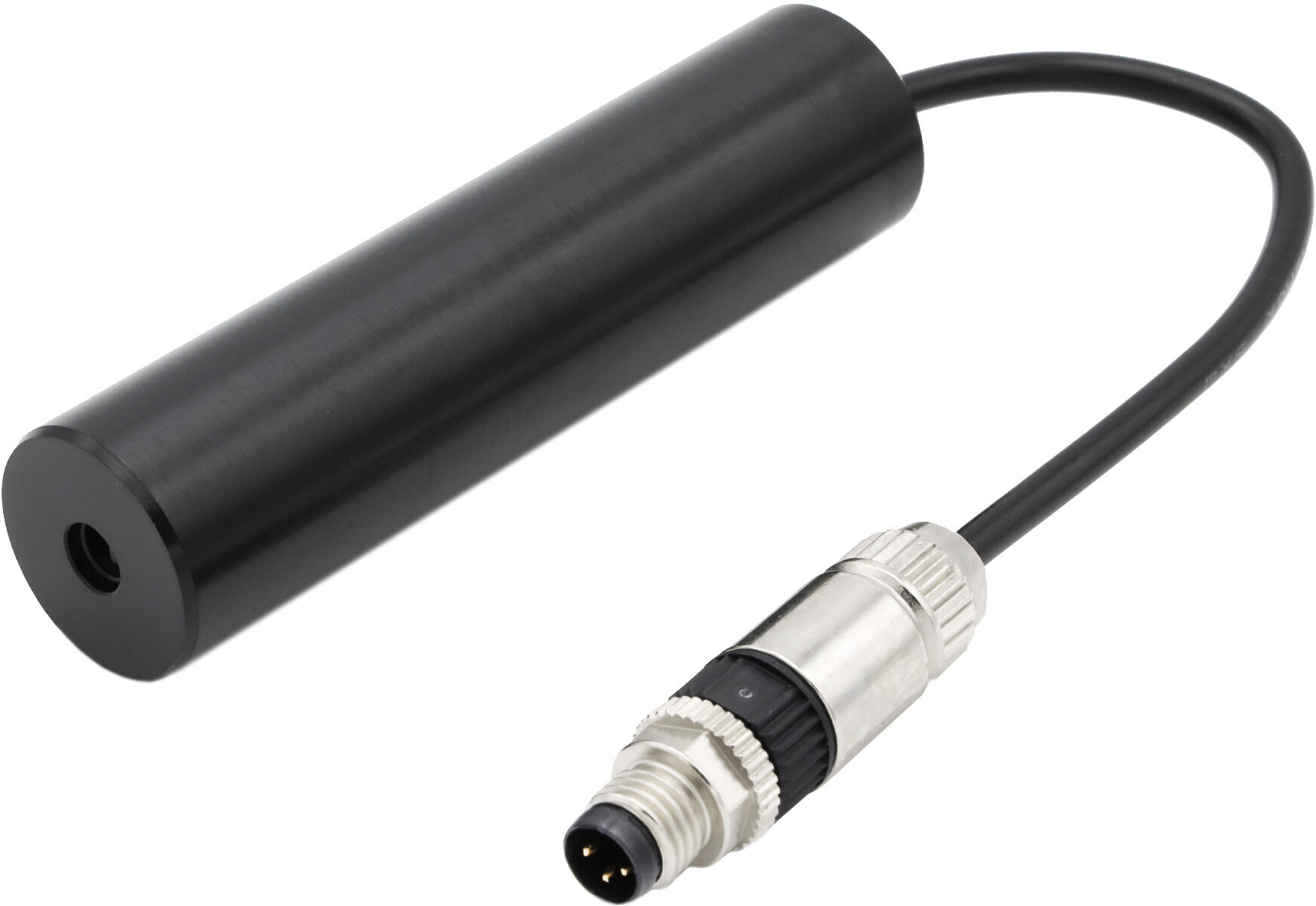

LH520-15-24(20x80)-PL-F300 - Hauptbild
LH520-15-24(20x80)-PL-F300 - Rendergrafik
Warnlabel 2M
403,28
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength520nm
    (grün)
    Optical Power15mW
    Laser Class2M
    Divergence1mrad
    Fan Angle90°
    Line Thickness<1mm@300mm
    Operating Distance0.3m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    Protection LensJa
    Size
    Materialaluminium
    Cable length100mm
    Wire type22AWG, black, 3,6mm
    Focusfixed (300mm)
    Output Aperture5.5mm
    Potential of Housinginsulated
    Lifetime>10000h
    Operating Voltage21.6 - 26.4, typ 24V DC
    Operating Current30 - 110, typ 55mA
    Housing Colorblack
    ConnectorCON_7000-08331-0000000
    Operating Temperature-10°C - 60°C
    Storage Temperature-40°C - 80°C
    Weight98g
    Protection ClassIPIP 51
  • Illustration and technical drawing
  • LH520-15-24(20x80)-PL-F300 - Hauptbild
    LH520-15-24(20x80)-PL-F300 - Rendergrafik
    Warnlabel 2M
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Stecker Pin Ground: 3
    Positive:Cable color Positive: whitewhite24V DC
    Stecker Pin Positive: 1
  • Matching accessories
  • LFNT-24-CLFNT-24-C
    Order no.: 70115055
    Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
    SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
    31.85 EUR
