ARD-LASER-MLI650-3-5(10X27)

Order number: 70146738

Product description:
Line laser module for Arduino, red, 650nm, 3mW, 5V DC, 60° angle of aperture, modulated, 10x27mm, Class 2, with compatible connectors for Arduino, Raspberry Pi, ESP8266, and ESP32.

• Operating voltage 5V DC
• Laser class 2
• compact design
• pre-set focus
• connector for Arduino
• Raspberry PI
• ESP8266
• and ESP32

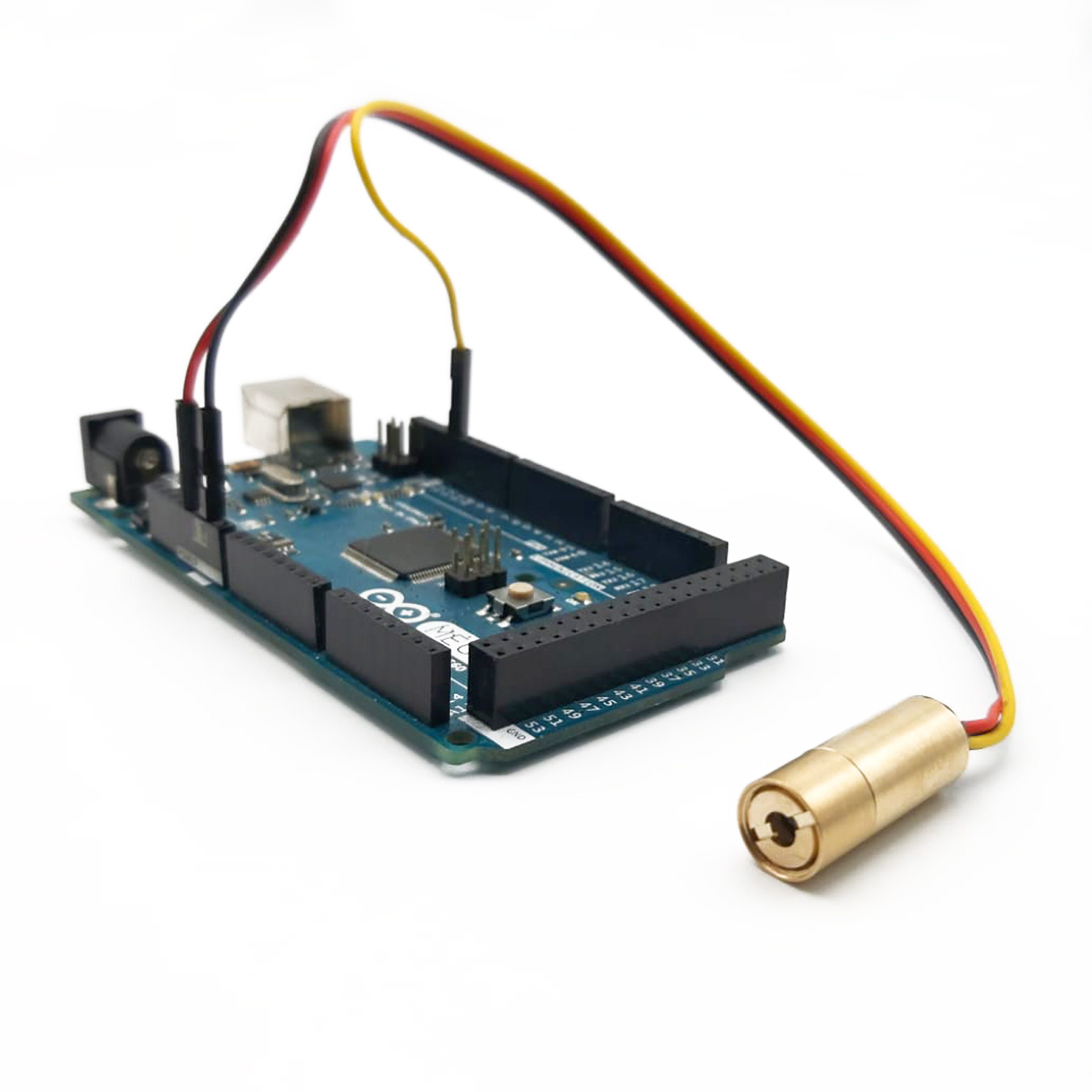

ARD-LASER-MLI650-3-5(10X27) - Produktbild 1

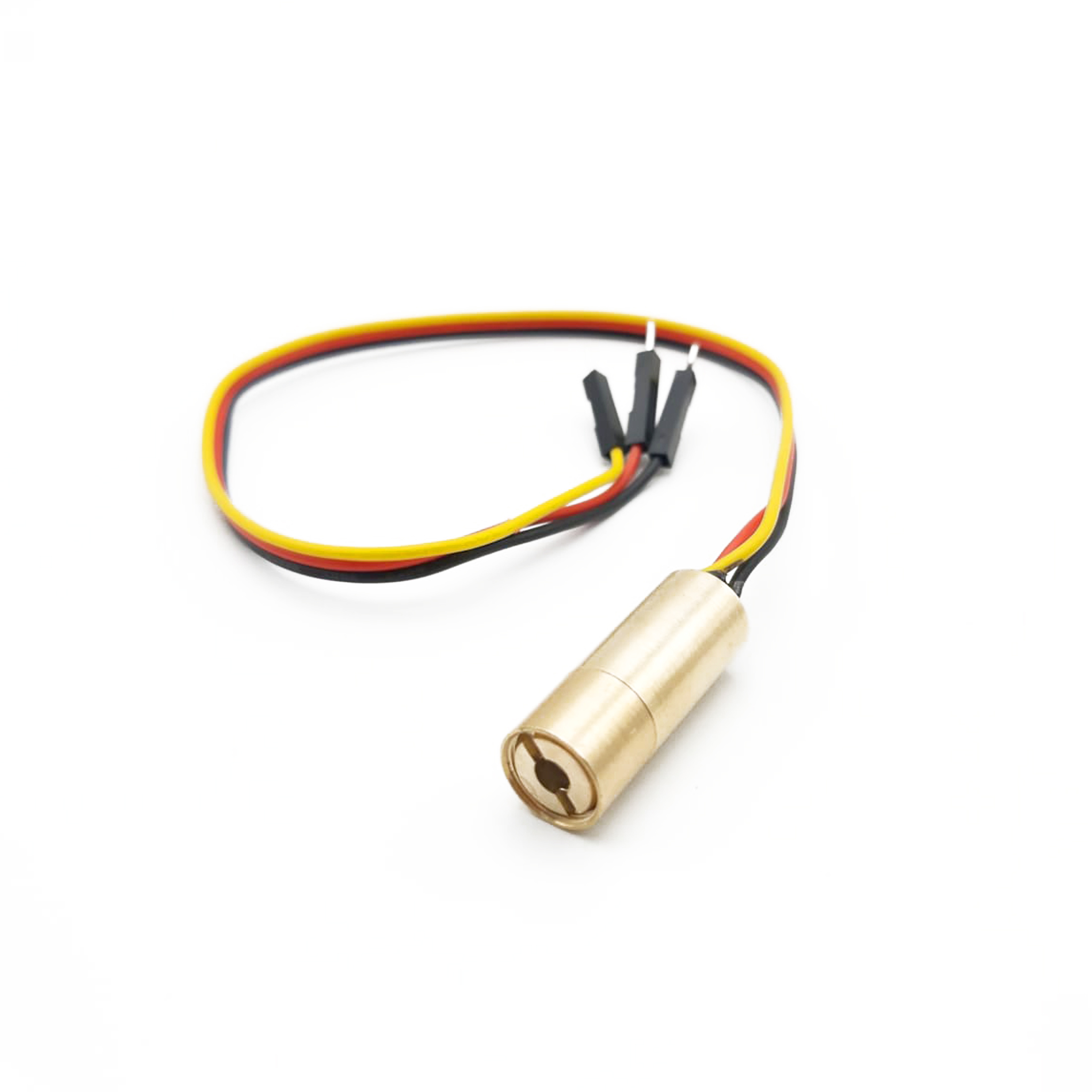

ARD-LASER-MLI650-3-5(10X27) - Hauptbild
ARD-LASER-MLI650-3-5(10X27) - Rendergrafik
Warnlabel 2
17,56
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength650nm
    (rot)
    Optical Power3mW
    Laser Class2
    Divergence2mrad
    Fan Angle60°
    Line Thickness<3 mm@1m
    Operating Distance1m
    Opticsacryl lense
    Laser technologySingle Mode Diode
    SizeØ10mm 27mm
    MaterialBronze
    Cable length250mm
    Wire type26AWG, 0,14mm²
    Focuscollimated
    Potential of HousingVDD(+)
    Max. Mod. Frequency200kHz
    Lifetime>3000h
    Operating Voltage4.5 - 5.5, typ 5V DC
    Operating Current5 - 30, typ 10mA
    Housing Colorbrass
    Operating Temperature-10°C - 50°C
    Storage Temperature-20°C - 65°C
    Weight6g
    Power SupplyPower Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
  • Illustration and technical drawing
  • ARD-LASER-MLI650-3-5(10X27) - Produktbild 1
    ARD-LASER-MLI650-3-5(10X27) - Hauptbild
    ARD-LASER-MLI650-3-5(10X27) - Rendergrafik
    Warnlabel 2
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
    Modulation:Cable color Modulate: yellowyellow200kHz
  • Matching accessories
  • MAGNETIC-MOUNT-PRO-10(48X86)MAGNETIC-MOUNT-PRO-10(48X86)
    Order no.: 70160970
    MAGNETIC-MOUNT-PRO for Lasermodul 10mm, Diameter 48mm, Height 86mm,
    89.83 EUR
