EJ830-110-(9.5x12)-AWL-MULTI-PCB

Order number: 70125665

Product description:
isolated expander laser, infrared, 830nm, 110mW, 9,5x12mm, class 3R,
no internal driver

• image processing
• uniform illumination
• modulated
• spreading lens
• compact size

112,89
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	expander
Wavelength	830nm (infrarot)
Optical Power	110mW
Laser Class	3R
Fan Angle	50°
Size of Laserdot	<400mm@0.3m
Operating Distance	1m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	aluminium
Cable length	200mm
Wire type	26AWG, 0,14mm²
Focus	fixed (300mm)
Output Aperture	4.2mm
Potential of Housing	insulated
Lifetime	>10000h
Operating Voltage	3V DC
Operating Current	140 - 180, typ 160mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	10g
Stripping of wire	5mm

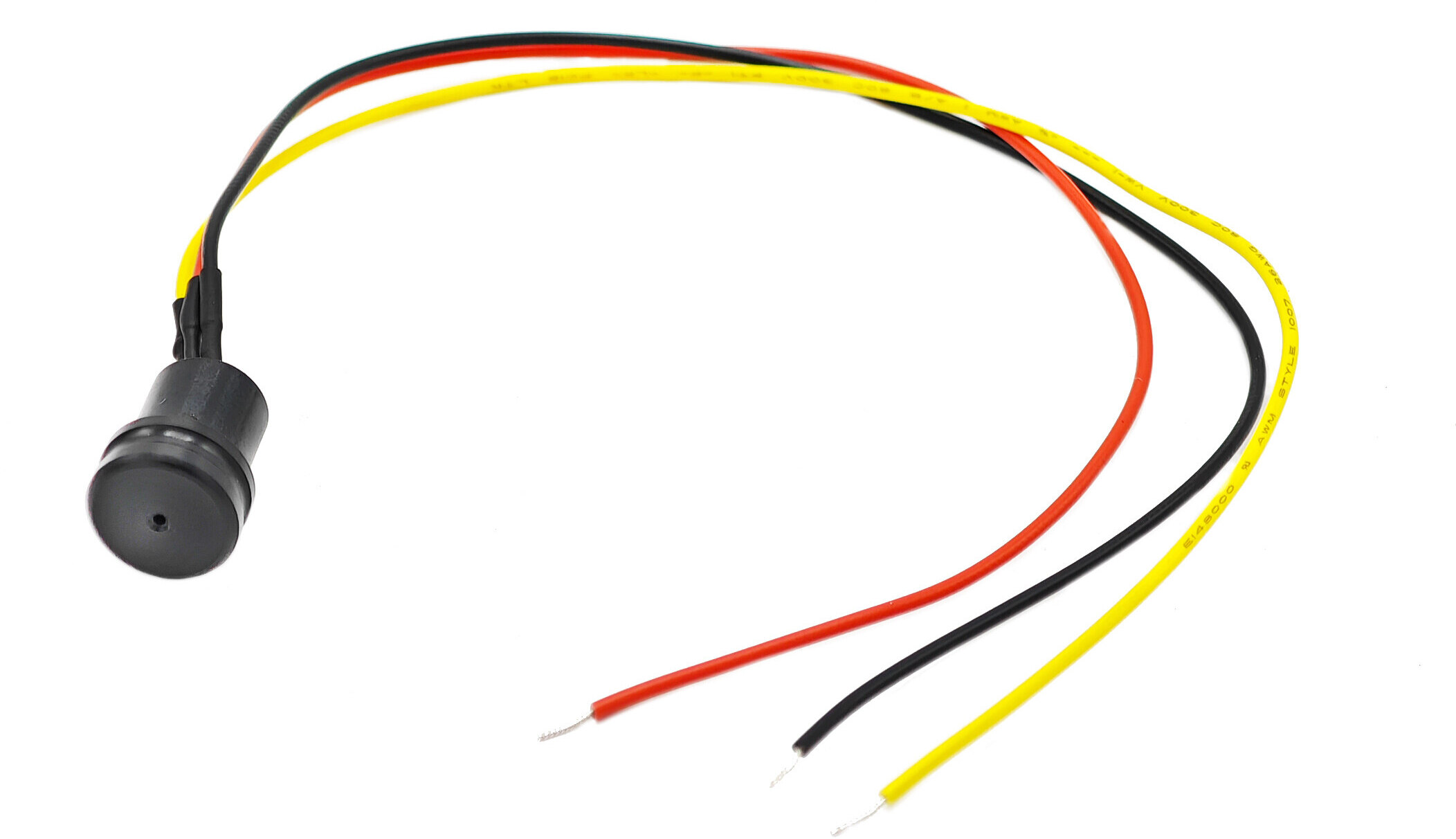

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 3V DC
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
