LE520-45-230(40x210)

Order number: 70121797

Product description:
isolated Line lasermodule, direct green, 90°, 520nm, 45mW, 230V AC, 40x210mm, class 2M, incl. Mounting

• Operating Voltage 230 V AC
• glas lenses anti reflex coated
• Laser Class 2M
• high power
• uniform line thickness

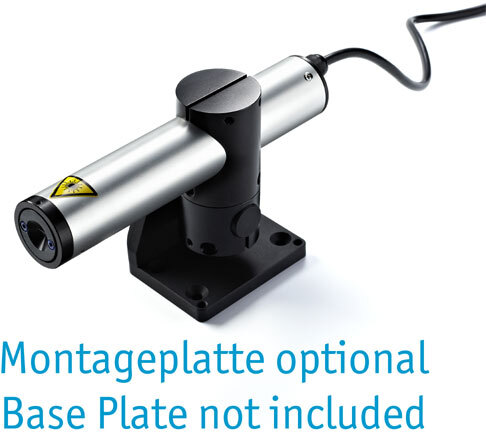

LE520-45-230(40x210) - Produktbild 1
LE520-45-230(40x210) - Hauptbild
LE520-45-230(40x210) - Produktbild 2
LE520-45-230(40x210) - Produktbild 3
LE520-45-230(40x210) - Produktbild 4
LE520-45-230(40x210) - Produktbild 5
LE520-45-230(40x210) - Rendergrafik
LE520-45-230(40x210) - Zeichnung
LE520-45-230(40x210) - Zeichnung Front
LE520-45-230(40x210) - Zeichnung isometrisch
Warnlabel 2M
831,85
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 520nm
    (grün)
    Optical Power 45mW
    Laser Class 2M
    Divergence 0.6mrad
    Fan Angle 90°
    Line Thickness <3mm@7m
    Operating Distance 25m
    Optics Glass lens AR coated
    Beam Mode TEM00
    Laser technology Single Mode Diode
    Stability +/- 5% @ -10-45°C
    Size Ø40mm 210mm
    Material aluminium
    Cable length 1750mm
    Wire type H05VV-F
    Focus fixed (7.0m)
    Output Aperture 8mm
    Potential of Housing insulated
    Lifetime >5000h
    Operating Voltage 207 - 253, typ 230V AC
    Operating Current 5 - 15, typ 10mA
    Housing Color silver
    Connector AC CEE 7/7
    Operating Temperature -10°C - 60°C
    Storage Temperature -40°C - 80°C
    Weight 920g
  • Illustration and technical drawing
  • LE520-45-230(40x210) - Produktbild 1
    LE520-45-230(40x210) - Hauptbild
    LE520-45-230(40x210) - Produktbild 2
    LE520-45-230(40x210) - Produktbild 3
    LE520-45-230(40x210) - Produktbild 4
    LE520-45-230(40x210) - Produktbild 5
    LE520-45-230(40x210) - Rendergrafik
    LE520-45-230(40x210) - Zeichnung
    LE520-45-230(40x210) - Zeichnung Front
    LE520-45-230(40x210) - Zeichnung isometrisch
    Warnlabel 2M
  • Matching accessories
  • NF-S-419424-1-16ANF-S-419424-1-16A
    Order no.: 70115031
    Power Line Filter 16A 250V AC, 50/60Hz to protect Lasermodules from voltage peaks
    144.45 EUR
