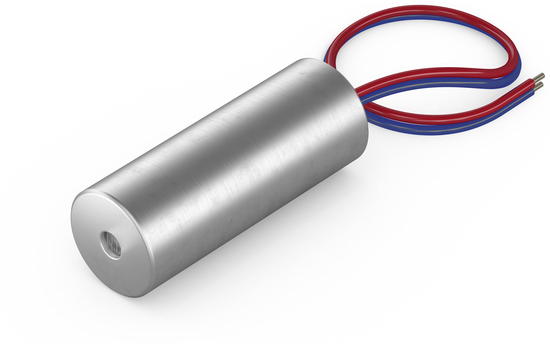

DI635-5-5(9x21)-F100-AP

Order number: 70116632

Product description:
isolated Dot lasermodule, red, 635nm, 5mW, 5V DC, 9x21mm, class 3R, focus 100mm

• axial parallel
• glas lenses anti reflex coated
• small package
• Operating Voltage 5 V DC
• Laser Class 3R

DI635-5-5(9x21)-F100-AP - Zeichnung Front

DI635-5-5(9x21)-F100-AP - Zeichnung isometrisch

89,83
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Dot
Wavelength	635nm (rot)
Optical Power	5mW
Laser Class	3R
Divergence	1.5mrad
Beam Diameter	2mm
Size of Laserdot	<0.3mm@0.1m
Operating Distance	0.1m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Axial Divergence	±0.1°
Size
Material	aluminium
Cable length	100mm
Wire type	26AWG, 0,14mm²
Focus	fixed (100mm)
Output Aperture	2mm
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	45 - 70, typ 60mA
Housing Color	silver
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	3.5g
Power Supply	Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
Stripping of wire	5mm

Illustration and technical drawing
Connector pin assignment
Ground: blue GND
Positive: red 5V DC
Matching accessories
LFNT-5
Order no.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR
