LE650-5-3(12x32)-F400-10DEG

Order number: 70116199

Product description:
Isolated line laser, red, 10°, 650nm, 5mW, 3V DC, 12x32mm, focus 400mm, class 2M

• small fan angle
• compact size
• Laser Class 2M
• Operating Voltage 3 V DC
• fixed focus
LE650-5-3(12x32)-F400-10DEG - Hauptbild
LE650-5-3(12x32)-F400-10DEG - Rendergrafik

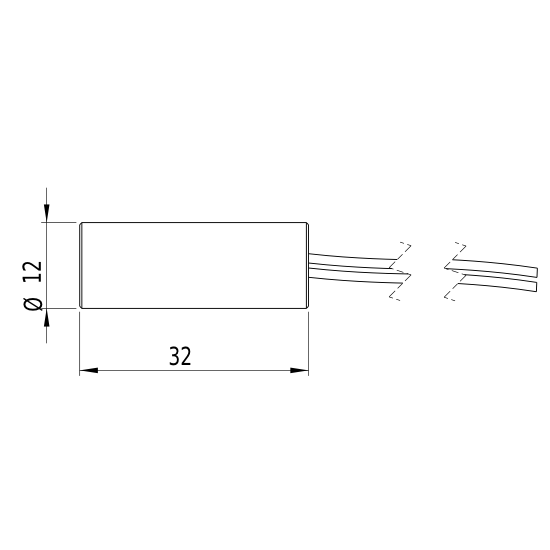

LE650-5-3(12x32)-F400-10DEG - Zeichnung
LE650-5-3(12x32)-F400-10DEG - Zeichnung Front

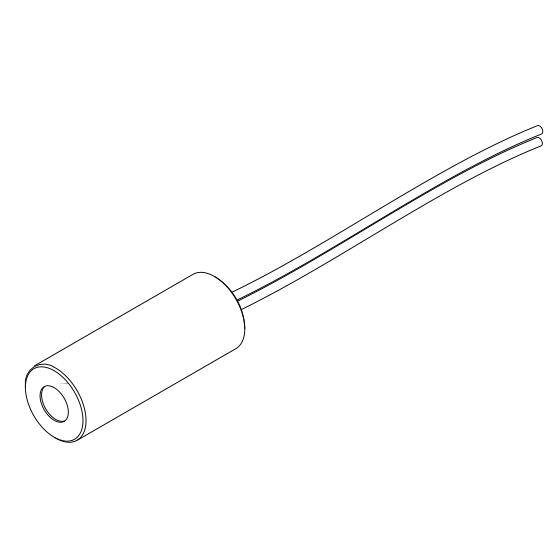

LE650-5-3(12x32)-F400-10DEG - Zeichnung isometrisch
Warnlabel 2M
60,42
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength650nm
    (rot)
    Optical Power5mW
    Laser Class2M
    Divergence0.6mrad
    Fan Angle10°
    Line Thickness<0.5mm@0.4m
    Operating Distance0.4m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    Size
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusfixed (400mm)
    Output Aperture5.5mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current15 - 45, typ 30mA
    Housing Colorblack
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight13g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Stripping of wire5mm
  • Illustration and technical drawing
  • LE650-5-3(12x32)-F400-10DEG - Hauptbild
    LE650-5-3(12x32)-F400-10DEG - Rendergrafik
    LE650-5-3(12x32)-F400-10DEG - Zeichnung
    LE650-5-3(12x32)-F400-10DEG - Zeichnung Front
    LE650-5-3(12x32)-F400-10DEG - Zeichnung isometrisch
    Warnlabel 2M
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • AM1-1203SZAM1-1203SZ
    Order no.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    16.72 EUR
