LE650-5-3(12x32)10DEG

Order number: 70105056

Product description:
line laser, red, 10°, 650nm, 5mW, 3V DC, 12x32mm, class 2M

• small fan angle
• compact size
• Laser Class 2M
• Operating Voltage 3 V DC
• fixed focus

LE650-5-3(12x32)10DEG - Zeichnung isometrisch

60,42
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	650nm (rot)
Optical Power	5mW
Laser Class	2M
Divergence	0.6mrad

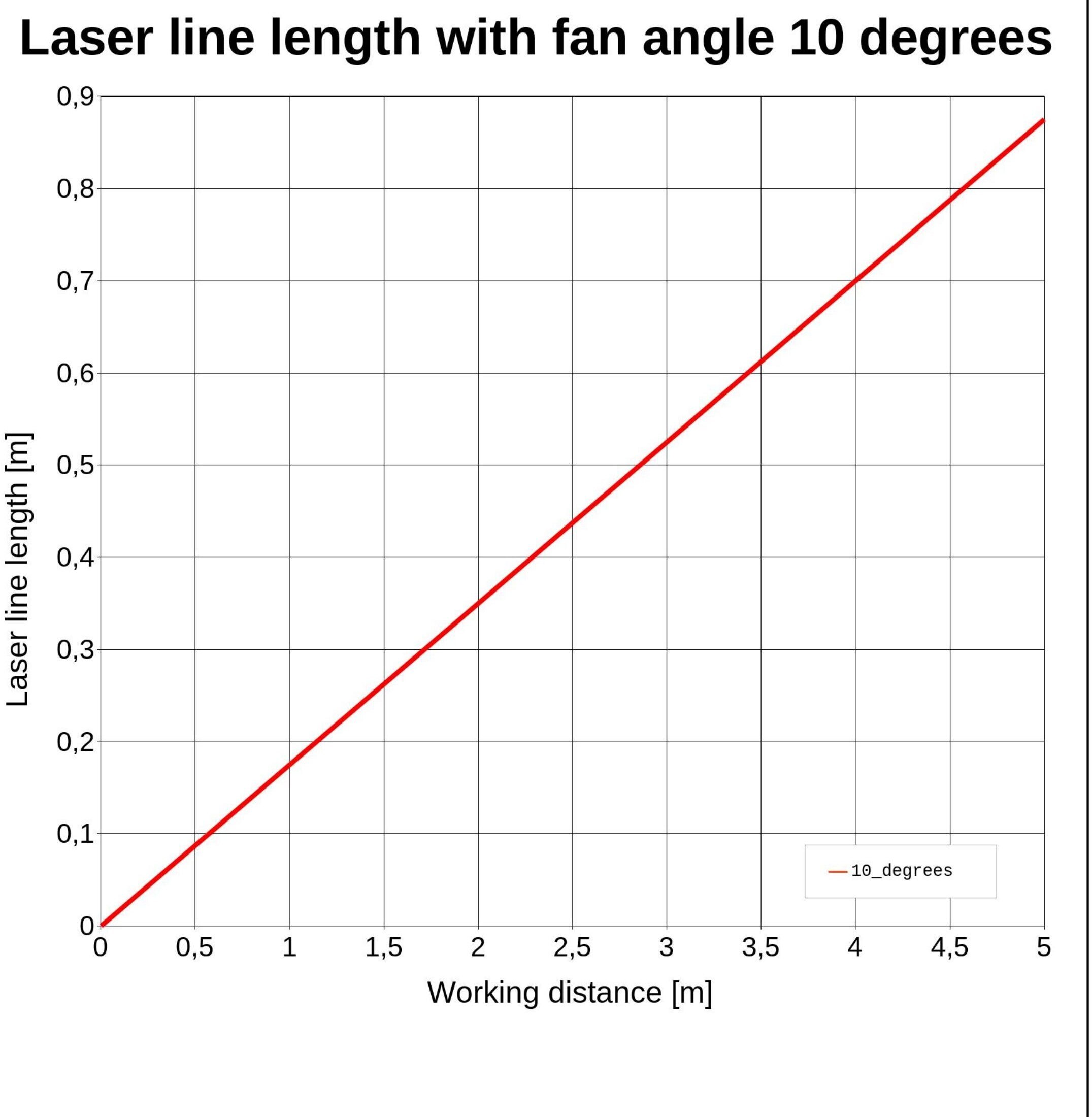

Fan Angle	10°
Line Thickness	<1.5mm@3m
Operating Distance	10m
Optics	Glass lens AR coated
Laser technology	diode
Protection Lens	Ja
Size
Material	aluminium
Cable length	100mm
Wire type	26AWG, 0,14mm²
Focus	fixed (3000mm)
Output Aperture	5.5mm
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	15 - 45, typ 30mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	13.5g
Power Supply	Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 3V DC
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
