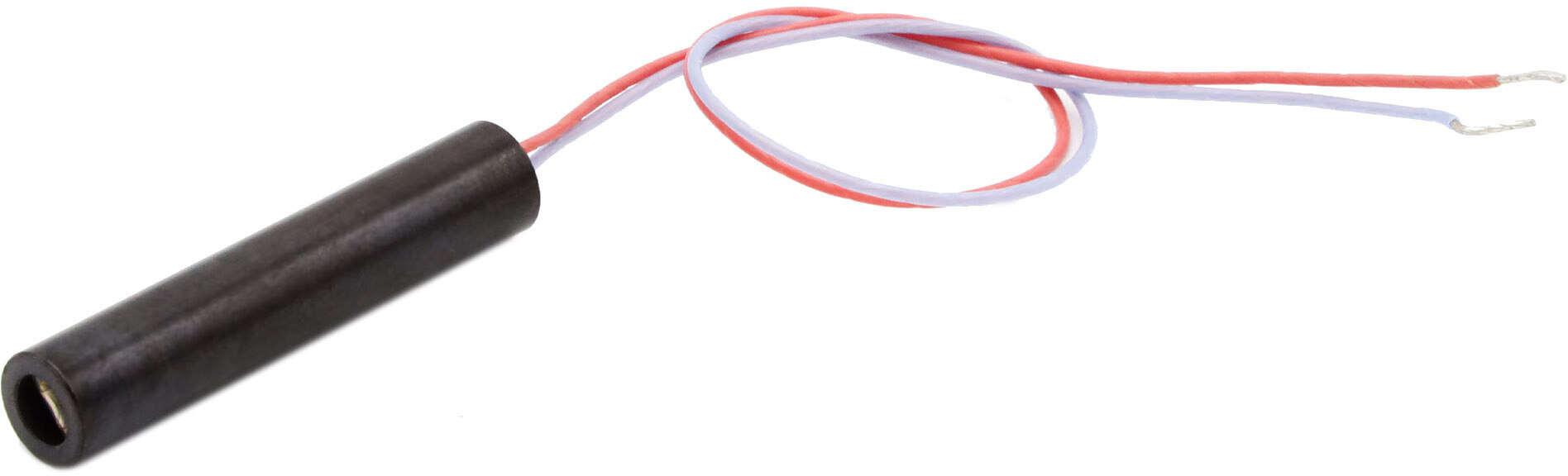

LC650-1-3(6x30)-F100
Order number: 70106541
Product description:
Line lasermodule, red, 90°, 650nm, 1mW, 3V DC, 6x30mm, class 1, focus 100mm
• Operating Voltage 3 V DC
• Laser Class 1
• image processing
• for medical devices
• uniform line thickness
Product description:
Line lasermodule, red, 90°, 650nm, 1mW, 3V DC, 6x30mm, class 1, focus 100mm
• Operating Voltage 3 V DC
• Laser Class 1
• image processing
• for medical devices
• uniform line thickness
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Line Wavelength 650nm
(rot)Optical Power 1mW Laser Class 1 Divergence 0.4mrad Fan Angle 90° Line Thickness <0.1mm@0.1m Operating Distance 0.1m Optics Glass lens AR coated Laser technology Single Mode Diode Size Material Bronze Cable length 100mm Wire type 26AWG, 0,14mm² Focus fixed (100mm) Output Aperture 3.5mm Lifetime >10000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 15 - 40, typ 25mA Housing Color black Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 4.2g Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Stripping of wire 5mm - Illustration and technical drawing
- Connector pin assignment
Ground:
blue GND Positive:
red 3V DC - Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
