LFD635-5-3(12x30.5)

Order number: 70104110

Product description:
focusable Dot lasermodule, red, 635nm, 5mW, 3V DC, 12x30.5mm, class 3R

• Operating Voltage 3 V DC
• Laser Class 3R
• adjustable focus
• compact size
• low cost

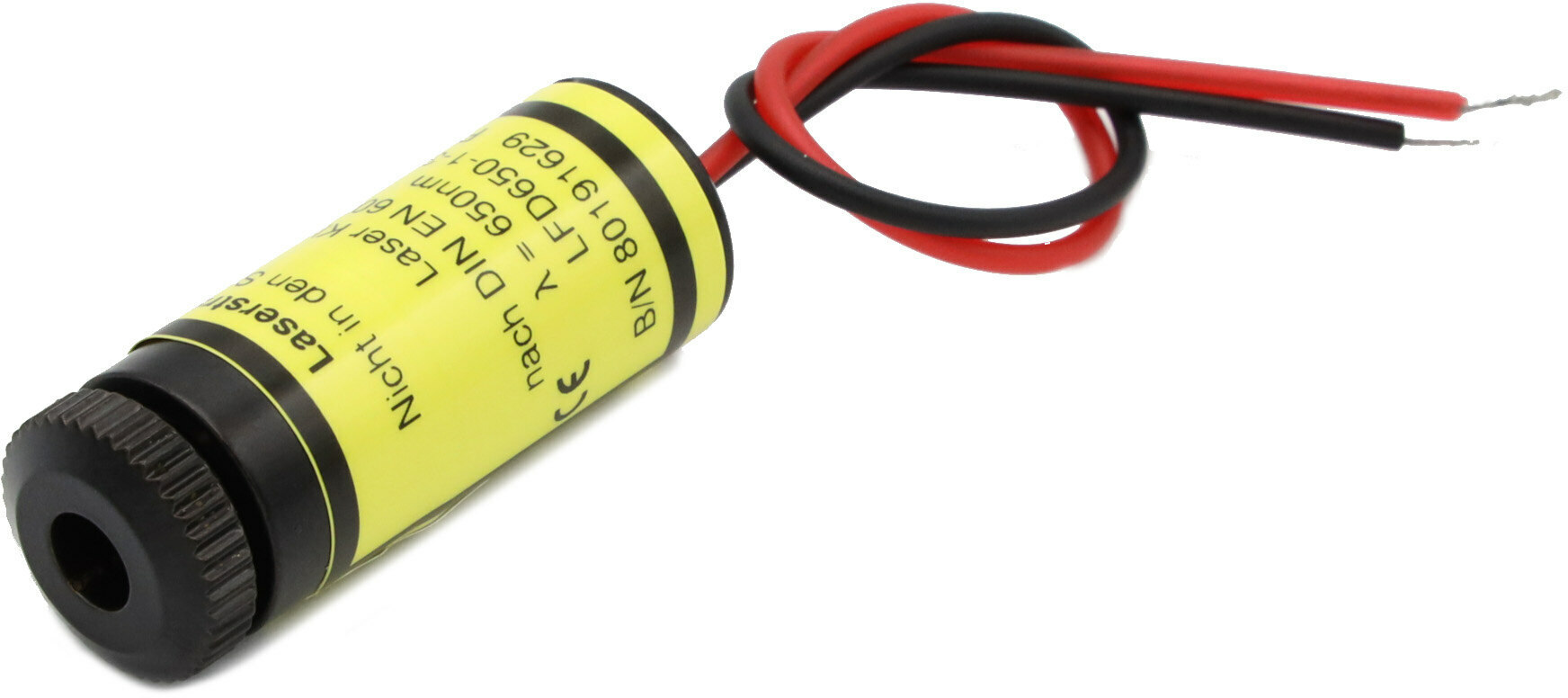

LFD635-5-3(12x30.5) - Hauptbild
LFD635-5-3(12x30.5) - Rendergrafik

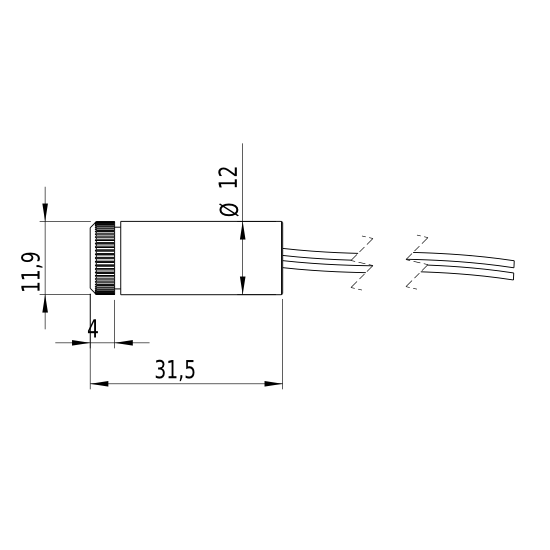

LFD635-5-3(12x30.5) - Zeichnung
LFD635-5-3(12x30.5) - Zeichnung Front

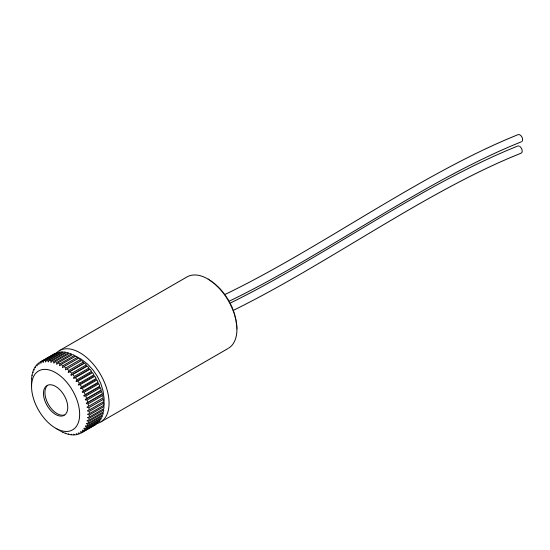

LFD635-5-3(12x30.5) - Zeichnung isometrisch
Warnlabel 3R
26,81
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength635nm
    (rot)
    Optical Power5mW
    Laser Class3R
    Divergence1mrad
    Size of Laserdotadjustable
    Operating Distance50m
    Opticsacryl lense
    Laser technologydiode
    Size
    MaterialBronze
    Cable length90mm
    Wire type26AWG, 0,14mm²
    Focusadjustable
    Output Aperture4mm
    Potential of HousingVDD(+)
    Lifetime>3000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current20 - 60, typ 40mA
    Operating Temperature-20°C - 40°C
    Storage Temperature-40°C - 80°C
    Weight15g
  • Illustration and technical drawing
  • LFD635-5-3(12x30.5) - Hauptbild
    LFD635-5-3(12x30.5) - Rendergrafik
    LFD635-5-3(12x30.5) - Zeichnung
    LFD635-5-3(12x30.5) - Zeichnung Front
    LFD635-5-3(12x30.5) - Zeichnung isometrisch
    Warnlabel 3R
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • AM1-1203SZAM1-1203SZ
    Order no.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    16.72 EUR
