PICO-LPG-10600
Numéro de commande: 70158595
Description du produit:

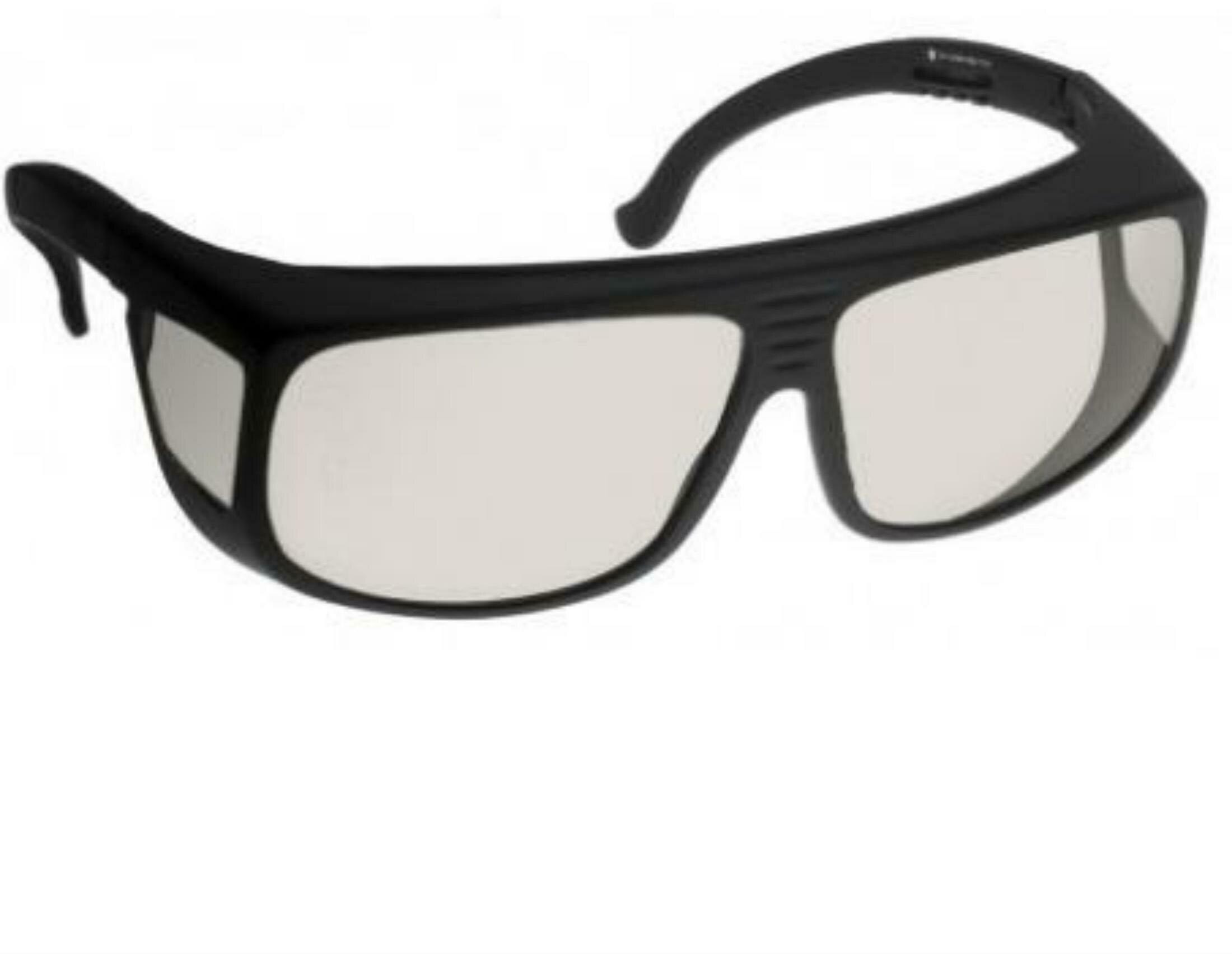

Laser Safety Eyewear, complete protection, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view, CE Certified ,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
* ● Wavelength: 190-315nm, lb rating D LB7 + IR LB4 ● Wavelength: >315-398nm, lb rating DIRM LB5 ● Wavelength: 9000-11000nm, lb rating DI LB3
* Especially suitable for: Laser UV 355nm and IR 10600nm
• complete protection
• comfortable fit over glasses or alone
• adjustable temples and side-shields for wide field of view
• CE Certified EN 207
• with Picotronic Logo imprint
Description du produit:
Laser Safety Eyewear, complete protection, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view, CE Certified ,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
* ● Wavelength: 190-315nm, lb rating D LB7 + IR LB4 ● Wavelength: >315-398nm, lb rating DIRM LB5 ● Wavelength: 9000-11000nm, lb rating DI LB3
* Especially suitable for: Laser UV 355nm and IR 10600nm
• complete protection
• comfortable fit over glasses or alone
• adjustable temples and side-shields for wide field of view
• CE Certified EN 207
• with Picotronic Logo imprint
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification

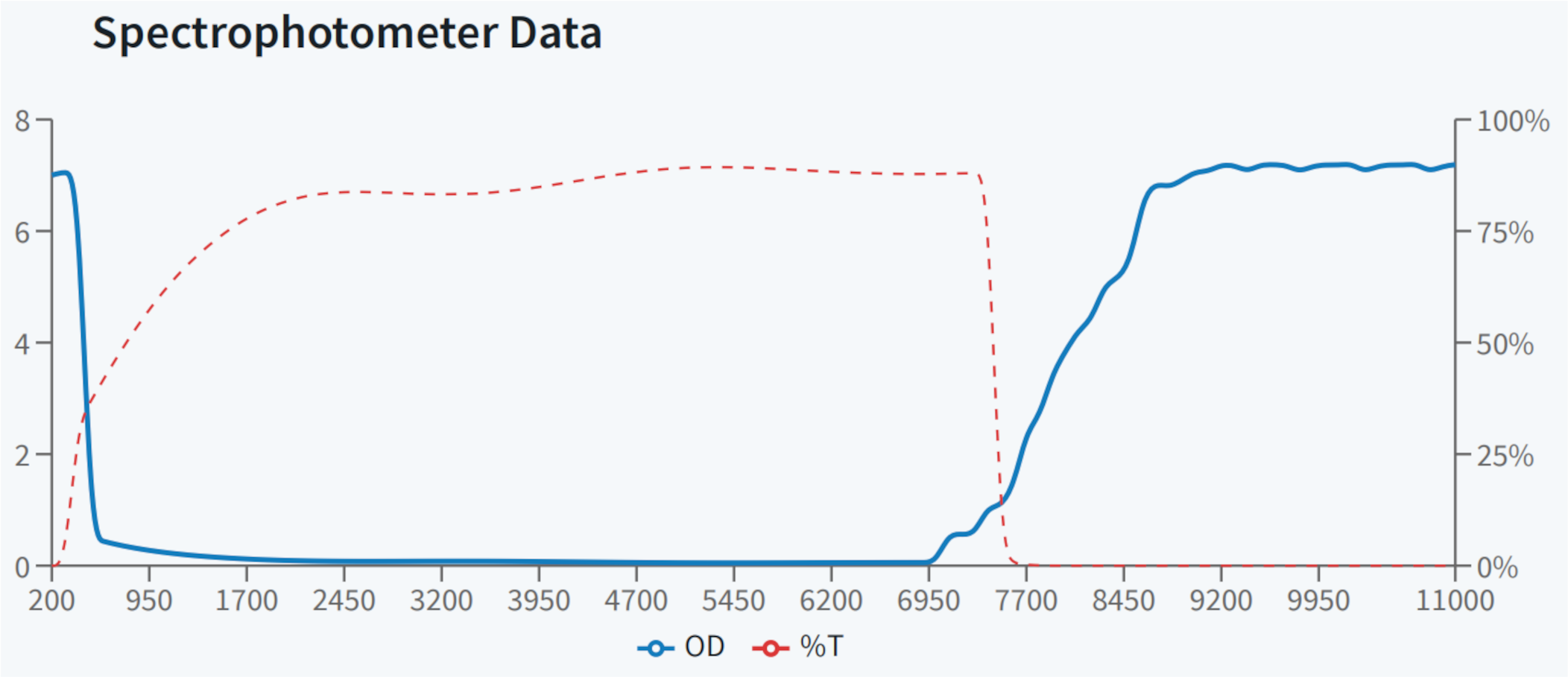

Size 145 x 144 x 50mm Material Polymer Housing Color noir Operating Temperature -50°C - 85°C Storage Temperature -50°C - 80°C Weight 10g Luminous transmittance 0.48% LB Rating 190-315 D LB7 + IR LB4
>315-398 DIRM LB5
9000-11000 DI LB3Lens Color Clear - Illustration et dessin technique
