LH660-40-24(32x115)110-PWL-M12
Numéro de commande: 70134759
Description du produit:

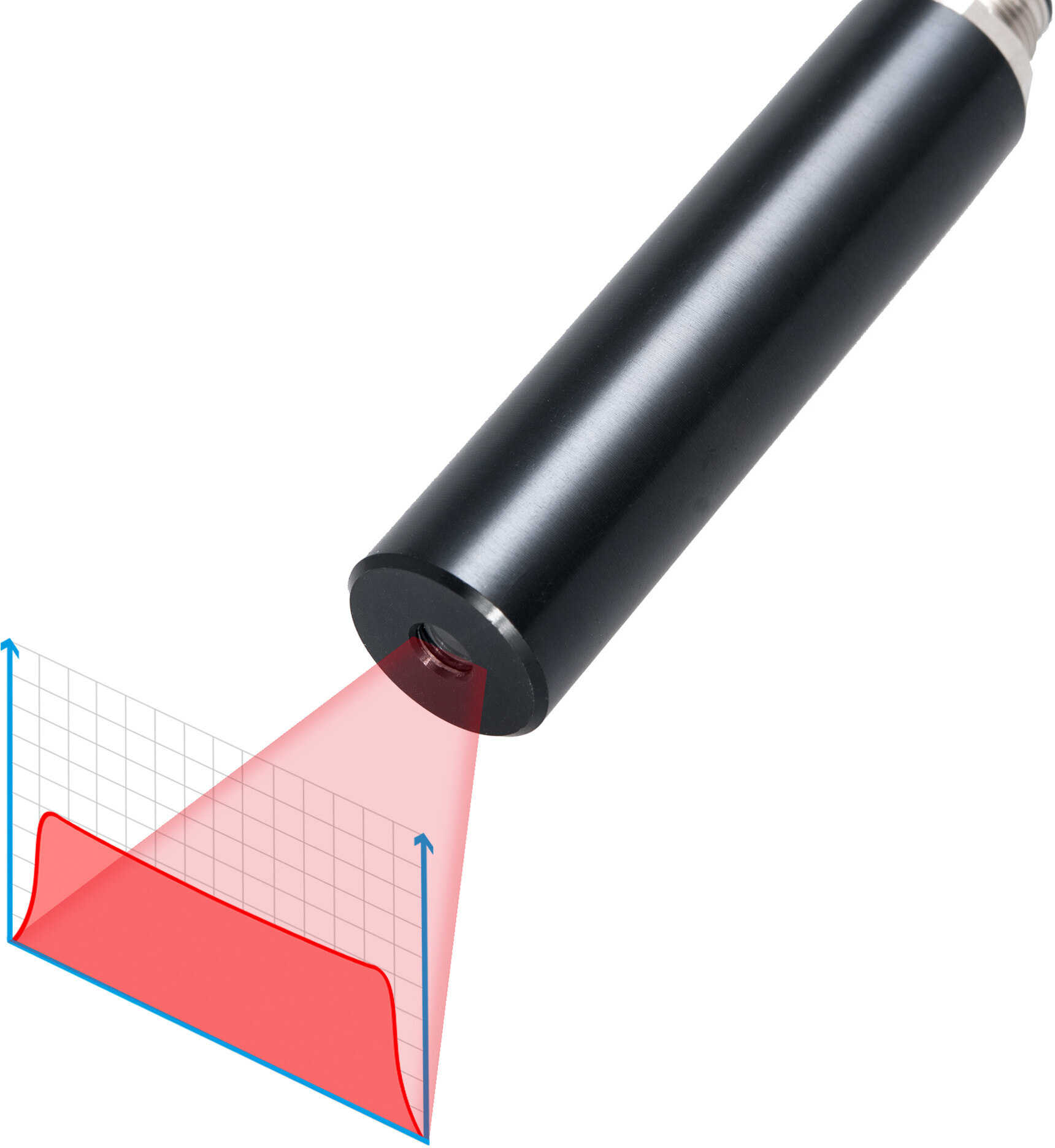

Isolated Line lasermodule, red, 110°, 660nm, 40mW, uniform line intensity, Powell lens, 12-24V DC, 32x115mm, class 2M, with M12 connector
• Operating Voltage 24 V DC
• Isolated housing
• Laser Class 2M
• Protection lens
•
Description du produit:
Isolated Line lasermodule, red, 110°, 660nm, 40mW, uniform line intensity, Powell lens, 12-24V DC, 32x115mm, class 2M, with M12 connector
• Operating Voltage 24 V DC
• Isolated housing
• Laser Class 2M
• Protection lens
•
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Warranty 1Jahre Beam Shape Ligne Wavelength 660nm
(rot)Optical Power 40mW Laser Class 2M Divergence 1mrad Fan Angle 110° Line Thickness <1.5mm@3m Operating Distance 3m Optics Powell Lens Laser technology Single Mode Diode Protection Lens Ja Size Material aluminium Focus fixed (3000mm) Output Aperture 5.5mm Potential of Housing isolé Lifetime >10000h Operating Voltage 12 - 26.4, typ 24V DC Operating Current 30 - 100, typ 50mA Housing Color noir Connector CON-M12 Operating Temperature -10°C - 40°C Storage Temperature -40°C - 80°C Weight 160g Protection Class IPIP 67 - Illustration et dessin technique
- Accessoires adaptés
NT-TT-12
Référence: 70122992
Power Supply with connector, Output: 12V DC, Input: 90-264V AC, 50-60Hz, Output Power: 30W max. with DC plug 2,5x5,5x9,5mm. DC Cord 1800mm
50.34 EUR- Downloads
