LFD650-0.4-6(9x20)-C250

Numéro de commande: 70132441

Description du produit:
Dot lasermodule, red, 650nm, 0.4mW, 3-6V DC, 9x20mm, class 1,
wire length 250mm

• compact size
• Laser Class 1
• low power consumption
• Operating Voltage 3-6V DC
• low cost

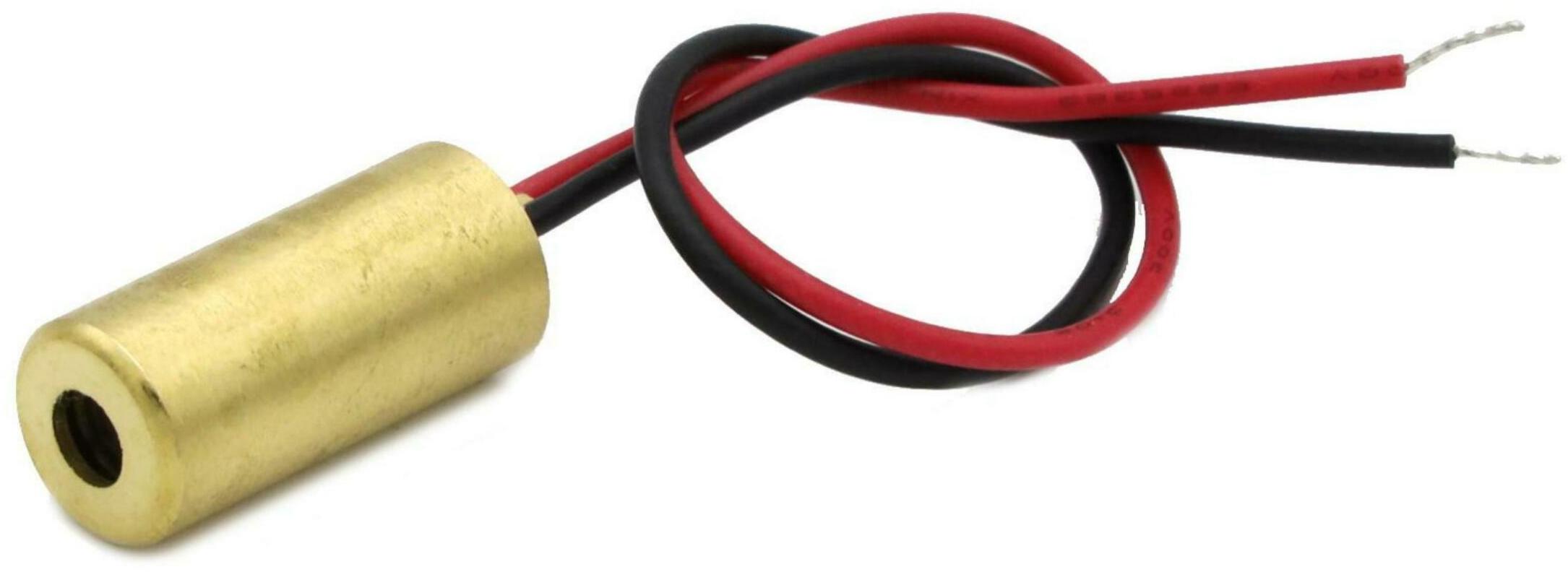

LFD650-0.4-6(9x20)-C250 - Hauptbild
LFD650-0.4-6(9x20)-C250 - Rendergrafik
LFD650-0.4-6(9x20)-C250 - Zeichnung
LFD650-0.4-6(9x20)-C250 - Zeichnung Front
LFD650-0.4-6(9x20)-C250 - Zeichnung isometrisch
Warnlabel 1
15,04
Tous les prix en Euros, hors taxes, et les frais d'expédition.

Nous n'avons rien à cacher en matière de prix!

Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!

Unité: 10501002505001000
Réduction: 10%15%20%25%30%35%
  • Spécification
  • Warranty 1Jahre
    Beam Shape Point
    Wavelength 650nm
    (rot)
    Optical Power 0.4mW
    Laser Class 1
    Divergence 1mrad
    Beam Diameter 3mm
    Size of Laserdot <4..5mm@5m
    Operating Distance 10m
    Optics acryl lense
    Laser technology diode
    Size Ø9mm 20mm
    Material Laiton
    Cable length 250mm
    Wire type 26AWG, 0,14mm²
    Focus collimated
    Output Aperture 3mm
    Potential of Housing VDD(+)
    Lifetime >3000h
    Operating Voltage 3 - 6, typ 3.3V DC
    Operating Current 5 - 25, typ 15mA
    Operating Temperature -20°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 6g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
  • Illustration et dessin technique
  • LFD650-0.4-6(9x20)-C250 - Hauptbild
    LFD650-0.4-6(9x20)-C250 - Rendergrafik
    LFD650-0.4-6(9x20)-C250 - Zeichnung
    LFD650-0.4-6(9x20)-C250 - Zeichnung Front
    LFD650-0.4-6(9x20)-C250 - Zeichnung isometrisch
    Warnlabel 1
    Affectation des connecteurs
    Dimensions:Cable color Ground: blacknoirGND
    Positif:Cable color Positive: redrouge3.3V DC
  • Accessoires adaptés
  • MULTI-MOUNT-09(45x75)MULTI-MOUNT-09(45x75)
    Référence: 70114065
    Mount for Lasermodul 9mm, Diameter 45mm, Height 75mm
    61.26 EUR
