DOE-DE-R339
Diffractive Optical Element DOE Matrix 6 x 6 Dots PC 8x1.2mm 9.5° at 635nm
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
| Warranty | 1Jahre |
| Beam Shape | Punto |
| Wavelength | 532nm (grün) |
| Optical Power | 1mW |
| Laser Class | 2 |
| Divergence | 0.5mrad |
| Beam Diameter | 3.5mm |
| Size of Laserdot | <5mm@5m |
| Operating Distance | 50m |
| Optics | Lente de cristal con recubrimiento AR |
| Beam Mode | TEM00 |
| Laser technology | Solid State (YVO4+KTP) |
| Stability | +/- 20% @ 15-30°C |

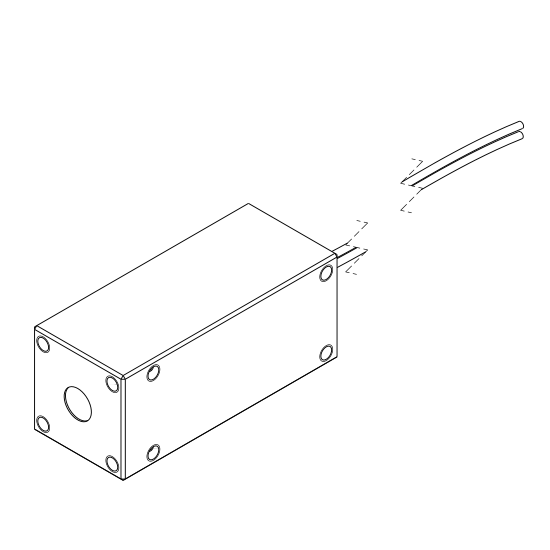

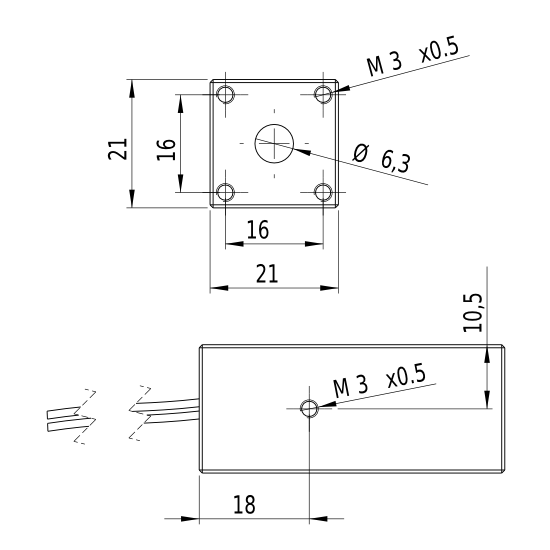

| Size | 21 x 21 x 50mm |
| Material | aluminium |
| Cable length | 280mm |
| Wire type | Belden, Typ 1007, 26AWG |
| Focus | collimated |
| Output Aperture | 5mm |
| Potential of Housing | aislado |
| Lifetime | >5000h |
| Operating Voltage | 4.5 - 5.5, typ 5V DC |
| Operating Current | 200 - 300, typ 250mA |
| Housing Color | negro |
| Operating Temperature | 15°C - 30°C |
| Storage Temperature | -40°C - 80°C |
| Warm up time | <15min |
| Weight | 54g |
| Stripping of wire | 5mm |
