LFL650-5-3(9x25)4DEG
Número de pedido: 70110029
Descripción del producto:
Line lasermodule, red, 4°, 650nm, 5mW, 3V DC, 9x25mm, class 3R
• Operating Voltage 3 V DC
• small laser head
• Protection lens
• low cost
• Laser Class 3R
Descripción del producto:
Line lasermodule, red, 4°, 650nm, 5mW, 3V DC, 9x25mm, class 3R
• Operating Voltage 3 V DC
• small laser head
• Protection lens
• low cost
• Laser Class 3R

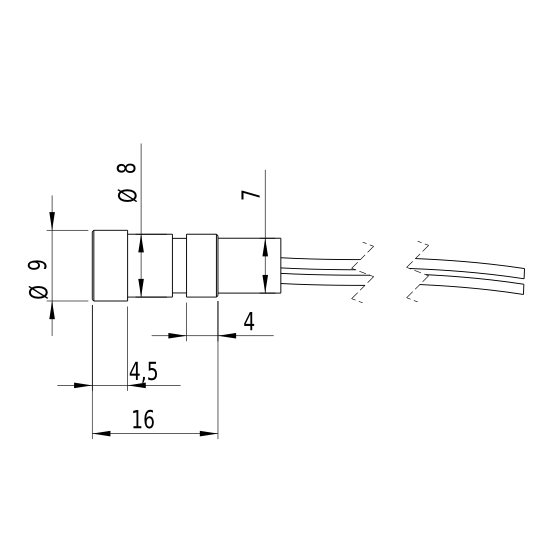

4DEG.png "LFL650-5-3(9x25)4DEG - Zeichnung")

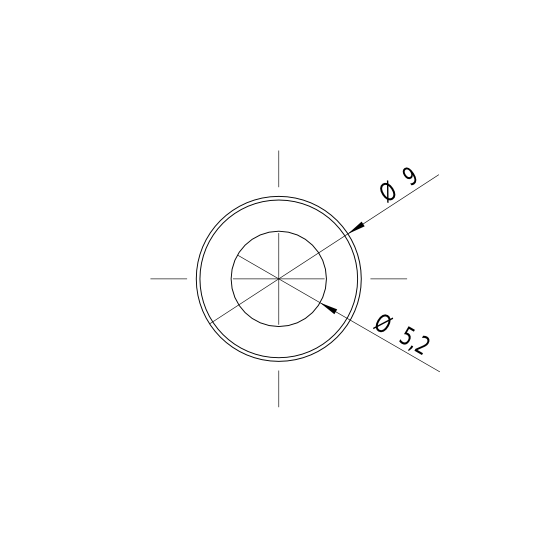

4DEG.png "LFL650-5-3(9x25)4DEG - Zeichnung Front")

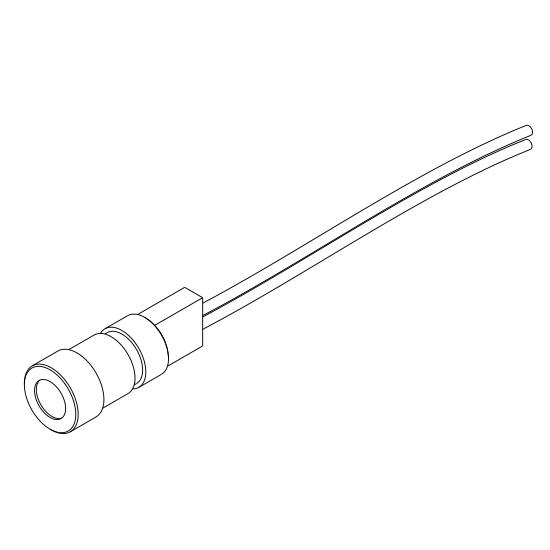

4DEG.png "LFL650-5-3(9x25)4DEG - Zeichnung isometrisch")
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Línia Wavelength 650nm
(rot)Optical Power 5mW Laser Class 3R Divergence 1mrad Fan Angle 4° Line Thickness <2mm@2m Operating Distance 3m Optics acryl lense Laser technology diode Size Material Latón Cable length 100mm Wire type 26AWG, 0,14mm² Focus fixed (2000mm) Output Aperture 5mm Potential of Housing VDD(+) Lifetime >3000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 10 - 25, typ 15mA Operating Temperature -20°C - 40°C Storage Temperature -40°C - 80°C Weight 4.5g Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
white GND Positivo:
rojo 3V DC - Accesorios idóneos
AM1-1203SZ
Pedido Nr.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
