PICO-LPG-950-1064
Número de pedido: 70183337
Descripción del producto:

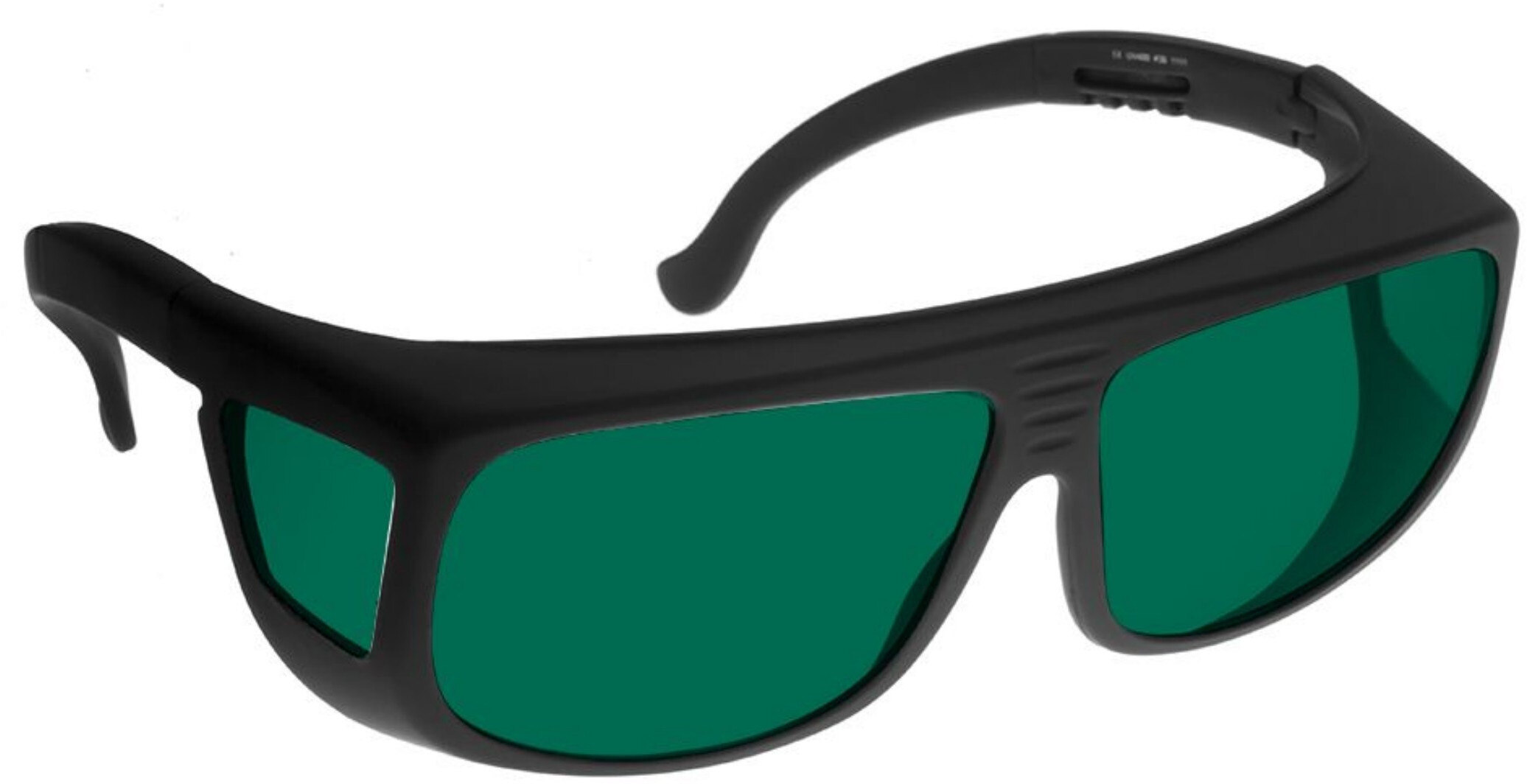

Laser Safety Eyewear, complete protection, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view, CE Certified ,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
* ● Wavelength: 630-711nm, lb rating DIR LB5 ● Wavelength: 648-708nm, lb rating D LB5 + IR LB6 ● Wavelength: 651-704nm, lb rating D LB5 + IR LB7 ● Wavelength: 654-699nm, lb rating D LB5 + IR LB8
* ● Wavelength: 654-699nm, lb rating D LB5 + IR LB8 ● Wavelength: 712-713nm, lb rating DIR LB4 ● Wavelength: 714-717nm, lb rating DIR LB3
* Especially suitable for: Laser RED 635nm, RED 650nm and RED 660nm
• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and Side-shields for wide field of view
• CE Certified EN 207
• with Picotronic Logo imprint
Descripción del producto:
Laser Safety Eyewear, complete protection, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view, CE Certified ,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
* ● Wavelength: 630-711nm, lb rating DIR LB5 ● Wavelength: 648-708nm, lb rating D LB5 + IR LB6 ● Wavelength: 651-704nm, lb rating D LB5 + IR LB7 ● Wavelength: 654-699nm, lb rating D LB5 + IR LB8
* ● Wavelength: 654-699nm, lb rating D LB5 + IR LB8 ● Wavelength: 712-713nm, lb rating DIR LB4 ● Wavelength: 714-717nm, lb rating DIR LB3
* Especially suitable for: Laser RED 635nm, RED 650nm and RED 660nm
• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and Side-shields for wide field of view
• CE Certified EN 207
• with Picotronic Logo imprint
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Size 145 x 144 x 50mm Material Polymer Housing Color negro Operating Temperature -50°C - 85°C Storage Temperature -50°C - 80°C Weight 10g Luminous transmittance 0.15% LB Rating 585-590nm D LB4 + I LB5
590-600nm D LB4 + I LB6
950-1064nm D LB5 + IR LB6
>1064-1070nm DIR LB5Lens Color Green - Imágenes y dibujo técnico
