DC650-1-3(8x25)-C500-70112726
focusable isolated Dot lasermodule, red, 650nm, 1mW, 3V DC, 8x25mm, class 2
DI650-2-3(4x10)-F13
Número de pedido: 70150780
Descripción del producto:
Dot laser, 650nm, 2mW, Focus 13mm +/- 2mm, 4x10mm, 3V DC
• Focus 13mm +/- 2mm
• Housing size 4x10mm
Descripción del producto:
Dot laser, 650nm, 2mW, Focus 13mm +/- 2mm, 4x10mm, 3V DC
• Focus 13mm +/- 2mm
• Housing size 4x10mm
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Punto Wavelength 650nm

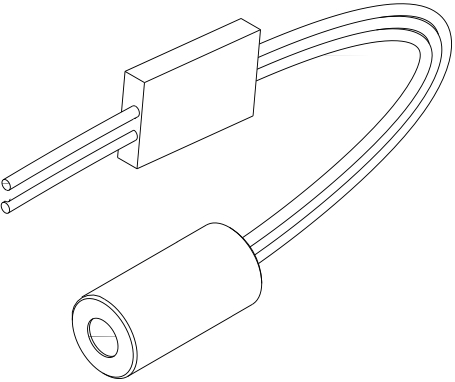

(rot)Optical Power 2mW Laser Class 3R Divergence 1.5mrad Size of Laserdot <0.04mm@13mm Operating Distance 0.013m Optics Lente de cristal con recubrimiento AR Laser technology Single Mode Diode Size Ø4mm 10mm Material Latón Cable length 120mm Wire type 28AWG, Typ 1061, UL1061 Focus fixed (13mm) Potential of Housing VDD(+) Lifetime >5000h Operating Voltage 2.8 - 3.3, typ 3V DC Operating Current 7 - 30, typ 15mA Housing Color negro Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 3g Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. PCB Ja Stripping of wire 5mm - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 3V DC - Accesorios idóneos
AM1-1203SZ
Pedido Nr.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
