DJ850-0.85-5(8x25)-VCSEL

Número de pedido: 70148466

Descripción del producto:
Dot lasermodule, infrared, 850nm, 0.85mW, 5V DC, 8x25mm, class 1,m VCSEL Laserdiode, spot size @2m: min 7.5mm, typ 9.5mm, max 11.5mm@2m

• Laser Class 1
• Operating Voltage 5 V DC
• spotsize @ 2m: min 7.5mm
• typ 9.5mm
• max 11.5mm@2m

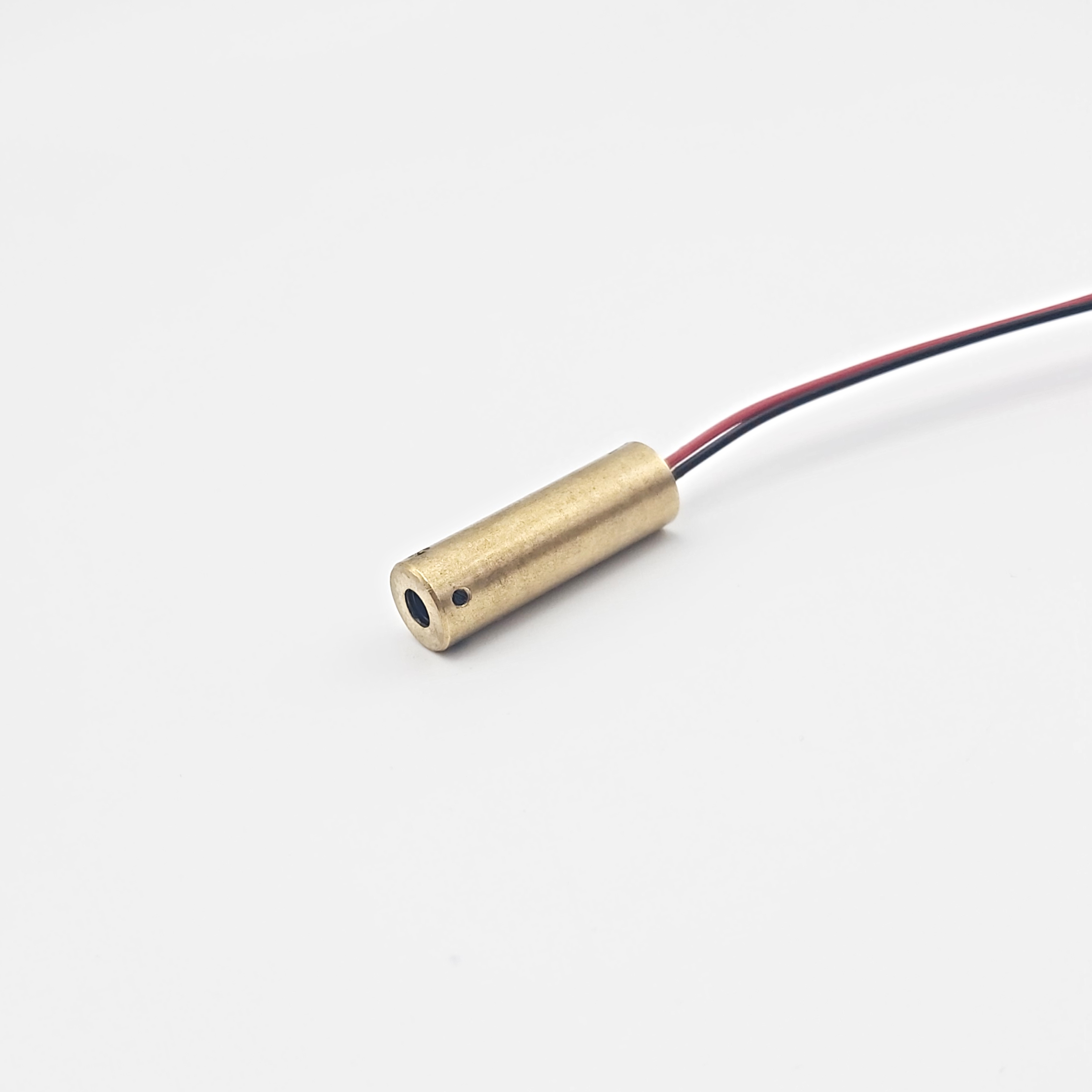

DJ850-0.85-5(8x25)-VCSEL - Hauptbild
Warnlabel 1
183,61
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape expander
    Wavelength 850nm
    (infrarot)
    Optical Power 0.85mW
    Laser Class 1
    Divergence 2mrad
    Size of Laserdot min 7.5mm, typ 9.5mm, max 11.5mm@2m
    Operating Distance 2m
    Optics Lente de cristal con recubrimiento AR
    Laser technology VCSEL Diode
    Axial Divergence ±0.15°
    Size Ø8mm 25mm
    Material aluminium
    Cable length 300mm
    Wire type 28AWG, Typ 1061, UL1061
    Focus fixed (2000mm)
    Output Aperture 2.4mm
    Potential of Housing aislado
    Max. Mod. Frequency 0.1kHz
    Lifetime >10000h
    Operating Voltage 4.5 - 5, typ 5V DC
    Operating Current 5 - 25, typ 15mA
    Housing Color brass
    Operating Temperature -20°C - 60°C
    Storage Temperature -40°C - 80°C
    Weight 5g
    Stripping of wire 10mm
  • Imágenes y dibujo técnico
  • DJ850-0.85-5(8x25)-VCSEL - Hauptbild
    Warnlabel 1
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: redrojo5V DC
  • Accesorios idóneos
  • MULTI-MOUNT-08(45x75)MULTI-MOUNT-08(45x75)
    Pedido Nr.: 70112481
    Mount for Lasermodul 8mm, Diameter 45mm, Height 75mm
    61.26 EUR
