MULTI-MOUNT-22(45x75)-MAGNETIC

Número de pedido: 70144246

Descripción del producto:
Mount for Lasermodul 22mm, Diameter 45mm, Height 75mm, Magnetic Mount

• anodized aluminium
• very robust
• for industrial applications
• magnetic

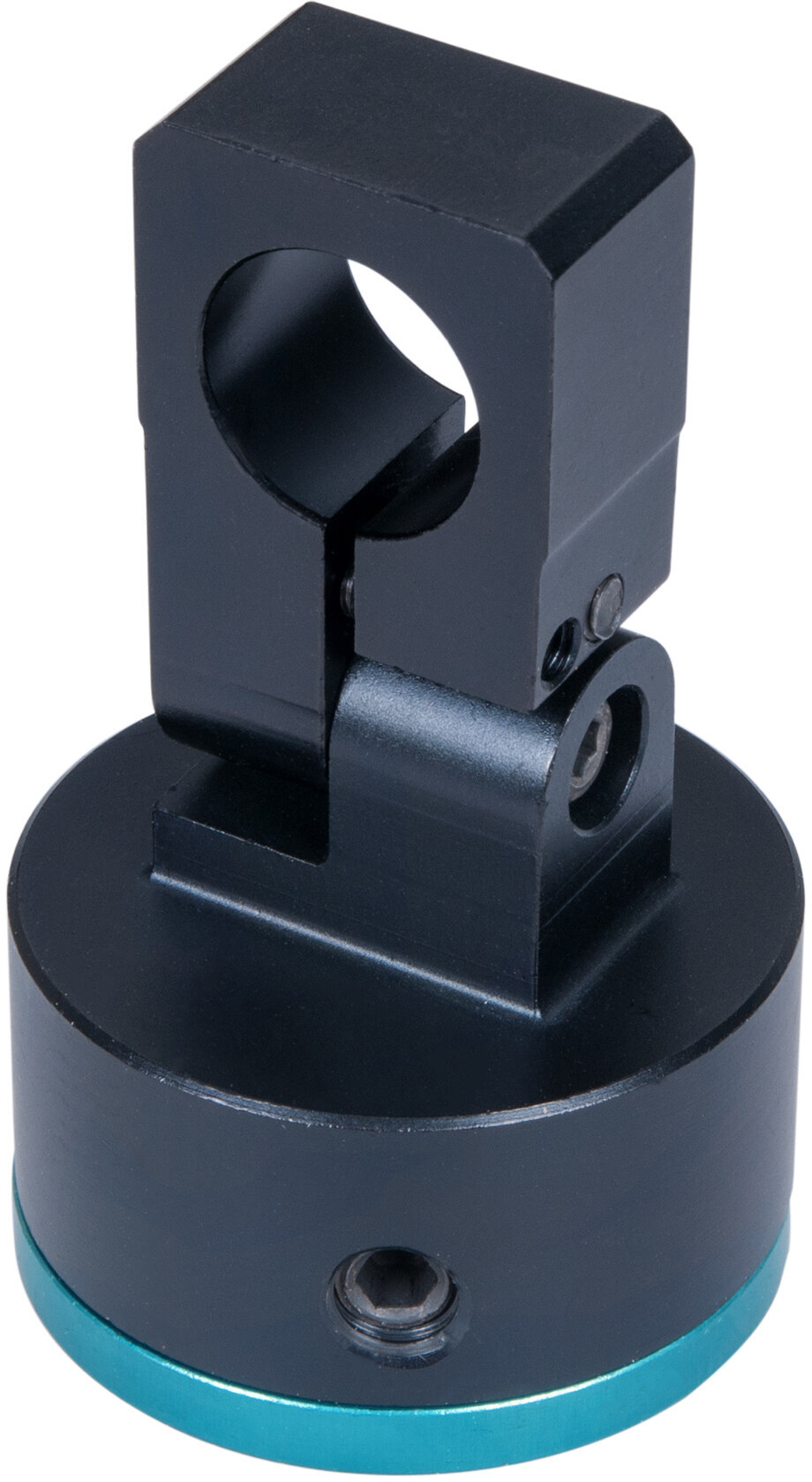

MULTI-MOUNT-22(45x75)-MAGNETIC - Produktbild 1
MULTI-MOUNT-22(45x75)-MAGNETIC - Hauptbild
MULTI-MOUNT-22(45x75)-MAGNETIC - Produktbild 2
MULTI-MOUNT-22(45x75)-MAGNETIC - Produktbild 3
MULTI-MOUNT-22(45x75)-MAGNETIC - Produktbild 4
MULTI-MOUNT-22(45x75)-MAGNETIC - Rendergrafik
67,14
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Size Ø45mm 75mm
    Material aluminium
    Operating Voltage max 0V DC
    Housing Color negro
    Operating Temperature -20°C - 50°C
    Storage Temperature -50°C - 70°C
    Weight 141g
    Total Height (h1) 75mm
    Height to Laseraxis (h2) 60mm
    Height of Base (h3) 25mm
    Mount Diameter (d1) Ø22mm
    Diameter of Base (d2) Ø45mm
    Width of Mount (b) 26mm
    Height of Mount (g) 50mm
    Height of Mount Head (k) 50mm
    Depth of Mount (t) 15mm
    Angle of Rotation Alpha (α) 360°
    Angle of Rotation Beta (β) ±90°
  • Imágenes y dibujo técnico
  • MULTI-MOUNT-22(45x75)-MAGNETIC - Produktbild 1
    MULTI-MOUNT-22(45x75)-MAGNETIC - Hauptbild
    MULTI-MOUNT-22(45x75)-MAGNETIC - Produktbild 2
    MULTI-MOUNT-22(45x75)-MAGNETIC - Produktbild 3
    MULTI-MOUNT-22(45x75)-MAGNETIC - Produktbild 4
    MULTI-MOUNT-22(45x75)-MAGNETIC - Rendergrafik
