LD635-5-5(11X42.5)-SIDE
Número de pedido: 70182774
Descripción del producto:

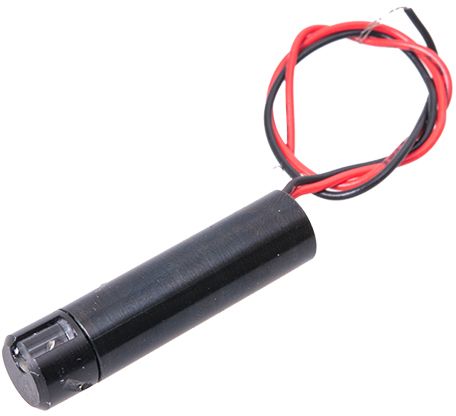

Isolated Line lasermodule, red, 45°, 635nm, 5mW, 5V DC, 11x42.5mm, class 1, 45° Mirror
• Operating Voltage 5 V DC
• small fan angle
• Laser Class 1
• adjustable focus
• high power
Descripción del producto:
Isolated Line lasermodule, red, 45°, 635nm, 5mW, 5V DC, 11x42.5mm, class 1, 45° Mirror
• Operating Voltage 5 V DC
• small fan angle
• Laser Class 1
• adjustable focus
• high power
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Línia Wavelength 635nm
(rot)Optical Power 5mW Laser Class 1 Divergence 0.5mrad Fan Angle 45° Line Thickness <1mm@600mm Operating Distance 0.6m Optics Lente de cristal con recubrimiento AR Laser technology Single Mode Diode Size Material aluminium Cable length 250mm Wire type 26AWG, 0,14mm² Focus fixed (600mm) Potential of Housing aislado Lifetime >10000h Operating Voltage 4.5 - 6.5, typ 5V DC Operating Current 25 - 70, typ 55mA Housing Color negro Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 10g Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max. - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 5V DC - Accesorios idóneos
LFNT-5
Pedido Nr.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR- Downloads
