LH520-5-5(22x90)110-F1500

Número de pedido: 70140651

Descripción del producto:
Line lasermodule, green, 110°, 520nm, 5mW, 5V DC, 22x90mm, class 1M, focus at 1.5m

• Operating Voltage 5V DC
• Laser Class 1M
• low cost
• Fan angle 110 °
• compact size
LH520-5-5(22x90)110-F1500 - Produktbild 1
LH520-5-5(22x90)110-F1500 - Hauptbild
LH520-5-5(22x90)110-F1500 - Rendergrafik
Warnlabel 1M
252,02
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape Línia
    Wavelength 520nm
    (grün)
    Optical Power 5mW
    Laser Class 1M
    Divergence 0.3mrad
    Fan Angle 110°
    Line Thickness <1mm@1.5m
    Operating Distance 10m
    Optics Lente de cristal con recubrimiento AR
    Laser technology Single Mode Diode

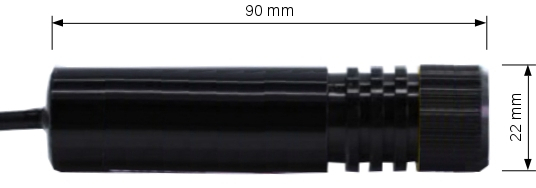

    Size Ø22mm 90mm
    Material aluminium
    Cable length 1000mm
    Wire type 24AWG, black, 3mm
    Focus fixed (1500mm)
    Output Aperture 6mm
    Potential of Housing aislado
    Lifetime >10000h
    Operating Voltage 3 - 5, typ 5V DC
    Operating Current 50 - 100, typ 75mA
    Housing Color negro
    Connector 2.5 mm DC socket (+ pole inner)
    Operating Temperature -10°C - 50°C
    Storage Temperature -40°C - 85°C
    Weight 63g
    Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    Protection Class IPIP 54
  • Imágenes y dibujo técnico
  • LH520-5-5(22x90)110-F1500 - Produktbild 1
    LH520-5-5(22x90)110-F1500 - Hauptbild
    LH520-5-5(22x90)110-F1500 - Rendergrafik
    Warnlabel 1M
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Stecker Pin Dimensiones: outer pole
    Positivo:Cable color Positive: redrojo5V DC
    Stecker Pin Positivo: inner pole
  • Accesorios idóneos
  • MULTI-MOUNT-22(45x75)MULTI-MOUNT-22(45x75)
    Pedido Nr.: 70115215
    Mount for Lasermodul 22mm, Diameter 45mm, Height 75mm
    61.26 EUR
