LFD650-1-3(4x20)-ADJ

Número de pedido: 70135879

Descripción del producto:
Dot lasermodule, red, 650nm, 1mW, 3V DC, 4x20mm, class 2

• Operating Voltage 3 V DC
• Laser Class 2
• compact size
• fixed focus
• low cost

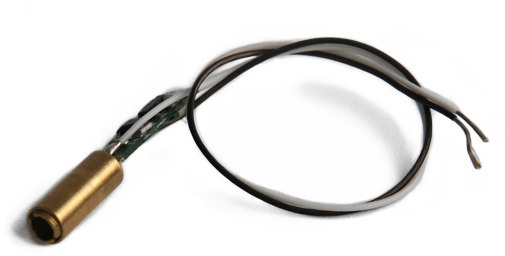

LFD650-1-3(4x20)-ADJ - Hauptbild
Warnlabel 2
18,40
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape Punto
    Wavelength 650nm
    (rot)
    Optical Power 1mW
    Laser Class 2
    Divergence 1mrad
    Size of Laserdot 3..4@4m
    Operating Distance 10m
    Optics acryl lense
    Laser technology diode
    Size Ø4mm 20mm
    Material Latón
    Cable length 80mm
    Focus ajustable
    Output Aperture 2.5mm
    Potential of Housing VDD(+)
    Lifetime >6000h
    Operating Voltage 2.6 - 3.3, typ 3V DC
    Operating Current 35 - 70, typ 50mA
    Operating Temperature -10°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 1g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
  • Imágenes y dibujo técnico
  • LFD650-1-3(4x20)-ADJ - Hauptbild
    Warnlabel 2
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: redrojo3V DC
  • Accesorios idóneos
  • AM1-1203SZAM1-1203SZ
    Pedido Nr.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    15.04 EUR
