CB660-25-5(20x90)110-ADJ-CON
Número de pedido: 70134650
Descripción del producto:

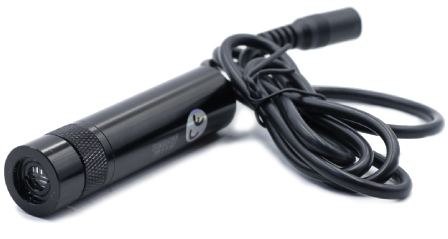

Adjustable Cross lasermodule, red, 110°, 660nm, 25mW, 5V DC, 20x90mm, class 2M, incl. connector
• Operating Voltage 5V DC
• Laser Class 2M
• low cost
• Fan angle 110 °
• compact size
Descripción del producto:
Adjustable Cross lasermodule, red, 110°, 660nm, 25mW, 5V DC, 20x90mm, class 2M, incl. connector
• Operating Voltage 5V DC
• Laser Class 2M
• low cost
• Fan angle 110 °
• compact size
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Cross Wavelength 660nm
(rot)Optical Power 25mW Laser Class 2M Divergence 0.3mrad Fan Angle 110° Operating Distance 6m Optics Lente de cristal con recubrimiento AR Laser technology diode Size Ø20mm 90mm Material aluminium Cable length 1000mm Wire type 24AWG, black, 3mm Focus ajustable Output Aperture 6mm Potential of Housing aislado Lifetime >10000h Operating Voltage 4.5 - 5.5, typ 5V DC Operating Current 50 - 150, typ 110mA Housing Color negro Connector 2.5 mm DC socket (+ pole inner) Operating Temperature -10°C - 40°C Storage Temperature -40°C - 80°C Weight 63g Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max. Protection Class IPIP 54 - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Stecker Pin Dimensiones: outer pole Positivo:
rojo 5V DC Stecker Pin Positivo: inner pole - Accesorios idóneos
MULTI-MOUNT-20(45x75)
Pedido Nr.: 70112511
Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
61.26 EUR- Downloads
