LE405-30-24-F(15x60)30-ADJ-PWL
Número de pedido: 70129861
Descripción del producto:

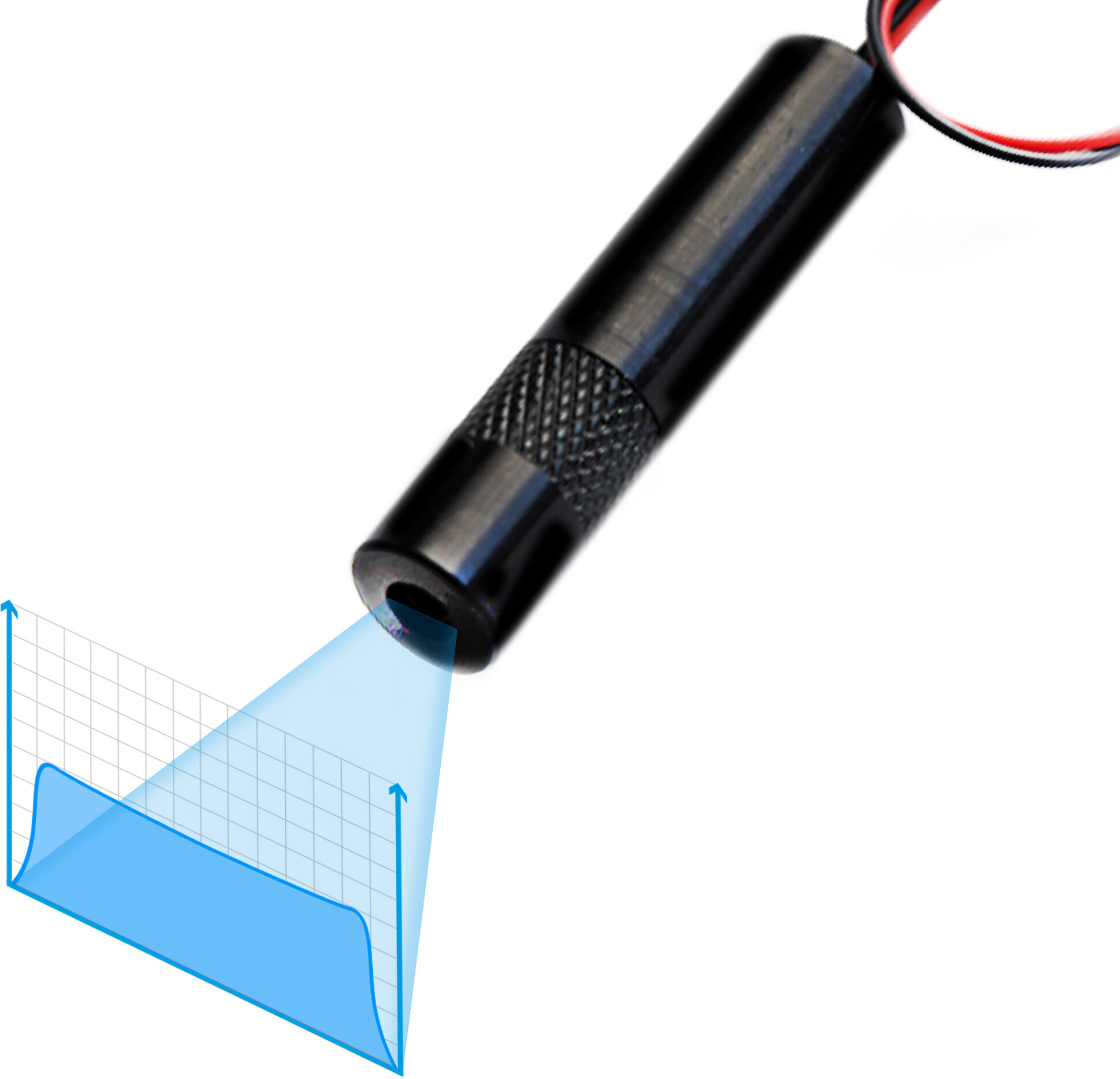

adjustable line laser, blue, 30°, 405nm, 30mW, 24V DC, 15x60mm, class 3B, uniform line distribution, Powell lens
• Powell Lens
• Uniform line distribution
• Image processing
Descripción del producto:
adjustable line laser, blue, 30°, 405nm, 30mW, 24V DC, 15x60mm, class 3B, uniform line distribution, Powell lens
• Powell Lens
• Uniform line distribution
• Image processing
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Línia Wavelength 405nm
(blau)Optical Power 30mW Laser Class 3B Divergence 0.6mrad Fan Angle 30° Line Thickness ajustable Operating Distance 10m Optics Powell Lens Laser technology Single Mode Diode Opt. Power Stability at const. Temp. <5% Axial Divergence ±1° Size Ø15mm 60mm Material aluminium Cable length 130mm Wire type 26AWG, UL, isolated Focus ajustable Output Aperture 4.2mm Potential of Housing aislado Lifetime >6000h Operating Voltage 23 - 25, typ 24V DC Operating Current 19 - 150, typ 140mA Housing Color negro Operating Temperature -20°C - 60°C Storage Temperature -40°C - 85°C Weight 20g Stripping of wire 5mm - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 24V DC - Accesorios idóneos
MULTI-MOUNT-15(45x75)
Pedido Nr.: 70114102
Mount for Lasermodul 15mm, Diameter 45mm, Height 75mm
66.30 EUR- Downloads
