DC650-0.4-4.5(14x64)-S-AP-F150
Número de pedido: 70125795
Descripción del producto:

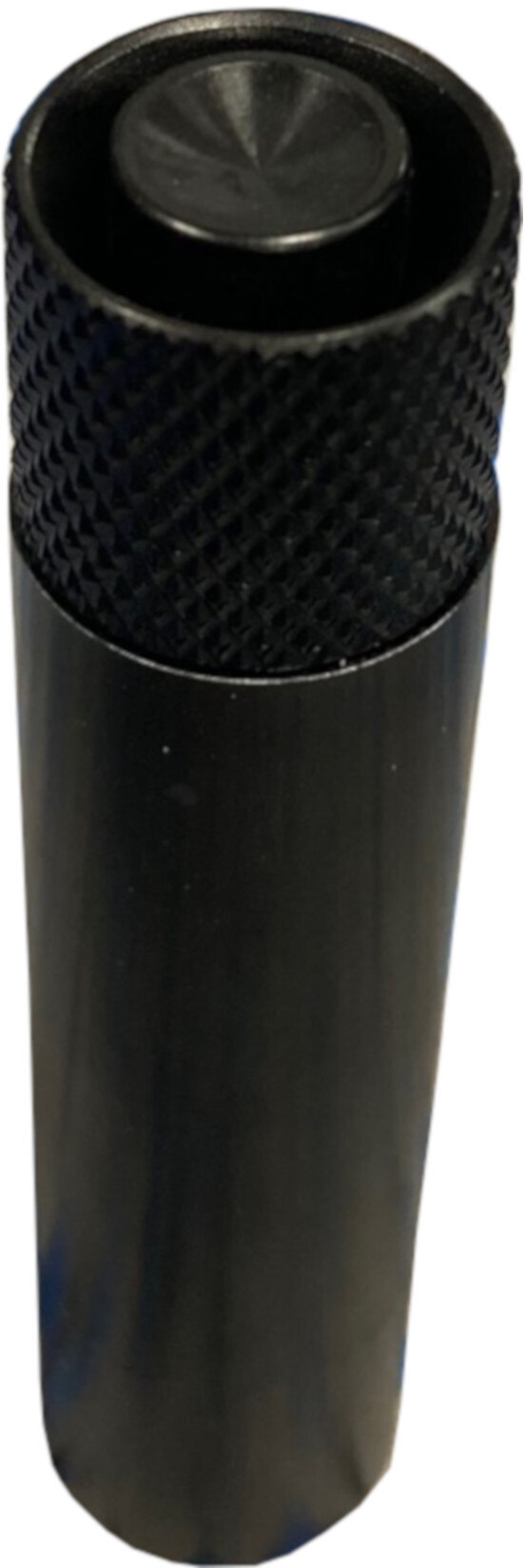

Dot lasermodule, red, 650nm, 0.4mW, 3V DC, 14x64mm, class 1, focus 150mm
• axial parallel
• with battery
• glas lenses anti reflex coated
• compact size
• Laser Class 1
Descripción del producto:
Dot lasermodule, red, 650nm, 0.4mW, 3V DC, 14x64mm, class 1, focus 150mm
• axial parallel
• with battery
• glas lenses anti reflex coated
• compact size
• Laser Class 1
.png "DC650-0.4-4.5(14x64)-S-AP-F150 - Zeichnung")
.png "DC650-0.4-4.5(14x64)-S-AP-F150 - Zeichnung Front")
.png "DC650-0.4-4.5(14x64)-S-AP-F150 - Zeichnung isometrisch")
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Punto Wavelength 650nm
(rot)Optical Power 0.4mW Laser Class 1 Divergence 0.4mrad Beam Diameter 3mm Size of Laserdot <1mm@0.15m Operating Distance 0.15m Optics Lente de cristal con recubrimiento AR Laser technology Single Mode Diode Axial Divergence ±0.6° Size Ø14mm 64mm Material aluminium Focus fixed (150mm) Output Aperture 3.5mm Potential of Housing VDD(+) Lifetime >5000h Operating Voltage 4.5V DC Operating Current 15 - 30, typ 20mA Battery LR44/AG13 alkaline battery, 1.5V Housing Color negro Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 21g - Imágenes y dibujo técnico
- Accesorios idóneos
MULTI-MOUNT-14(45x75)
Pedido Nr.: 70114096
Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm
61.26 EUR- Downloads
