LH650-16-24(20x80)-C500-NT

Número de pedido: 70122800

Descripción del producto:

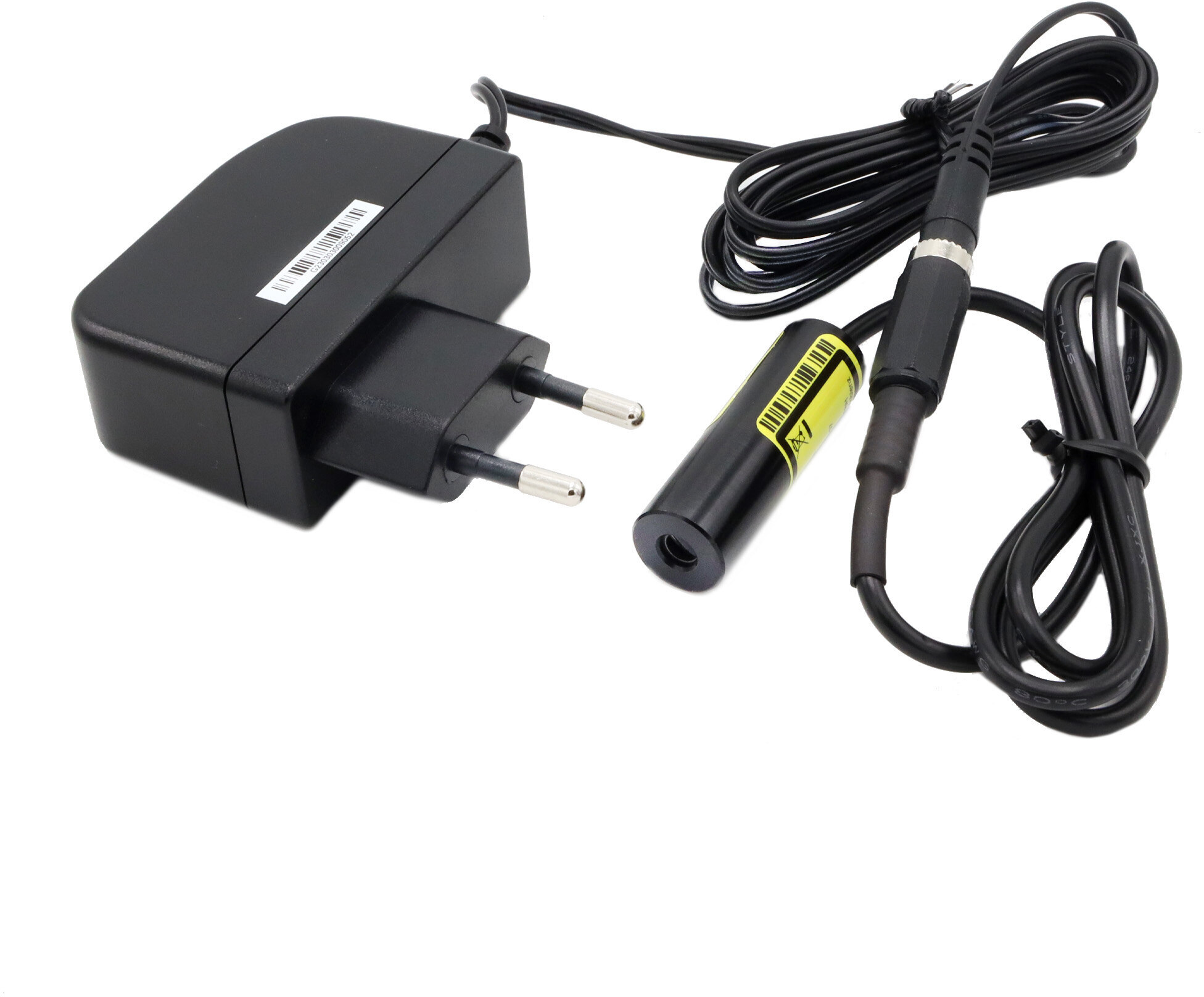

isolated Line lasermodule, red, 90°, 650nm, 16mW, 24V DC, 20x80mm, class 2, incl. power supply

• Operating Voltage 24V DC
• Isolated housing
• Laser Class 1
• small laser head
• Protection lens
LH650-16-24(20x80)-C500-NT - Produktbild 1
LH650-16-24(20x80)-C500-NT - Hauptbild
LH650-16-24(20x80)-C500-NT - Rendergrafik
LH650-16-24(20x80)-C500-NT - Zeichnung
LH650-16-24(20x80)-C500-NT - Zeichnung Front
LH650-16-24(20x80)-C500-NT - Zeichnung isometrisch
Warnlabel 2
235,21
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty1Jahre
    Beam ShapeLínia
    Wavelength650nm
    (rot)
    Optical Power16mW
    Laser Class2
    Divergence1mrad
    Fan Angle90°
    Line Thickness<2mm@1.5m
    Operating Distance1.5m
    OpticsLente de cristal con recubrimiento AR
    Laser technologySingle Mode Diode
    Protection LensJa
    Size
    Materialaluminium
    Cable length500mm
    Wire type22AWG, black, 3,6mm
    Focusfixed (1500mm)
    Output Aperture5.5mm
    Potential of Housingaislado
    Lifetime>10000h
    Operating Voltage20 - 26, typ 24V DC
    Operating Current5 - 25, typ 12mA
    Housing Colornegro
    Connector2.1 mm DC socket (+pole inner)
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Power Supply includedJa
    Weight63g
    Stripping of wire5mm
    Stripping of cable cover50mm
  • Imágenes y dibujo técnico
  • LH650-16-24(20x80)-C500-NT - Produktbild 1
    LH650-16-24(20x80)-C500-NT - Hauptbild
    LH650-16-24(20x80)-C500-NT - Rendergrafik
    LH650-16-24(20x80)-C500-NT - Zeichnung
    LH650-16-24(20x80)-C500-NT - Zeichnung Front
    LH650-16-24(20x80)-C500-NT - Zeichnung isometrisch
    Warnlabel 2
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: whitewhite24V DC
  • Accesorios idóneos
  • LFNT-24-CLFNT-24-C
    Pedido Nr.: 70115055
    Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
    SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
    31.85 EUR
