DD532-1-3(16x62)-DOE-C-NT
Número de pedido: 70115338
Descripción del producto:

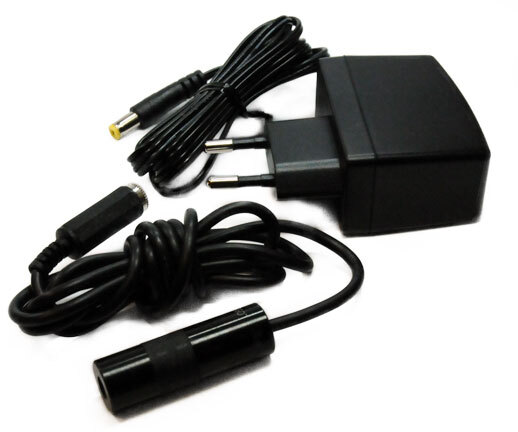

focusable isolated DOE lasermodule, green, 532nm, 1mW, 3V DC, 16x62mm, class 2, incl. Power Supply
• adjustable focus
• DOE optic can be changed
• compact size
• glas lenses anti reflex coated
• Operating Voltage 3 V DC
Descripción del producto:
focusable isolated DOE lasermodule, green, 532nm, 1mW, 3V DC, 16x62mm, class 2, incl. Power Supply
• adjustable focus
• DOE optic can be changed
• compact size
• glas lenses anti reflex coated
• Operating Voltage 3 V DC
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape DOE Wavelength 532nm
(grün)Optical Power 1mW Laser Class 2 Divergence 0.5mrad Operating Distance 50m Optics Lente de cristal con recubrimiento AR Beam Mode TEM00 Laser technology YVO4+KTP Stability +/- 10% @ 15-30°C Size Ø16mm 62mm Material aluminium Cable length 200mm Wire type 18AWG, black, 3,6mm Focus ajustable Output Aperture 5mm Potential of Housing aislado Lifetime >5000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 125 - 375, typ 250mA Connector 2.5 mm DC socket (GND pole inner) Operating Temperature 15°C - 30°C Storage Temperature -40°C - 80°C Warm up time <15min Power Supply included Ja Weight 37g Power Supply Power Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative - Imágenes y dibujo técnico
- Accesorios idóneos
MULTI-MOUNT-16(45x75)
Pedido Nr.: 70112504
Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
66.30 EUR- Downloads
