LG635-1.8-6(13x30)

Order number: 70102765

Product description:
Line lasermodule, red, 90°, 635nm, 1.8mW, 6V DC, 13x30mm, class 1

• Fan angle 90 °
• Laser Class 1
• compact size
• Operating Voltage 6 V DC
• glas lenses anti reflex coated

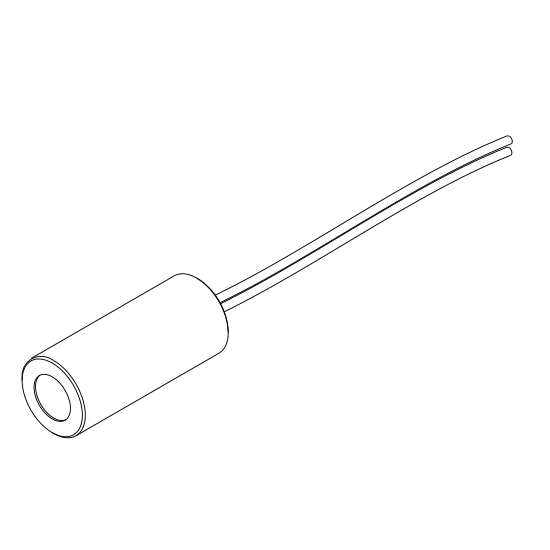

LG635-1.8-6(13x30) - Zeichnung isometrisch

44,45
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	635nm (rot)
Optical Power	1.8mW
Laser Class	1
Divergence	0.8mrad
Fan Angle	90°
Line Thickness	<1mm@1m
Operating Distance	1m
Optics	Glass lens AR coated
Laser technology	diode
Size
Material	Bronze
Cable length	100mm
Wire type	26AWG, 0,14mm²
Focus	fixed (1000mm)
Output Aperture	7.4mm
Potential of Housing	GND(-)
Lifetime	>5000h
Operating Voltage	5.4 - 6.6, typ 6V DC
Operating Current	20 - 60, typ 40mA
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	16g
Power Supply	Power Supply 6V DC with 2.1x.5.5mm Connector

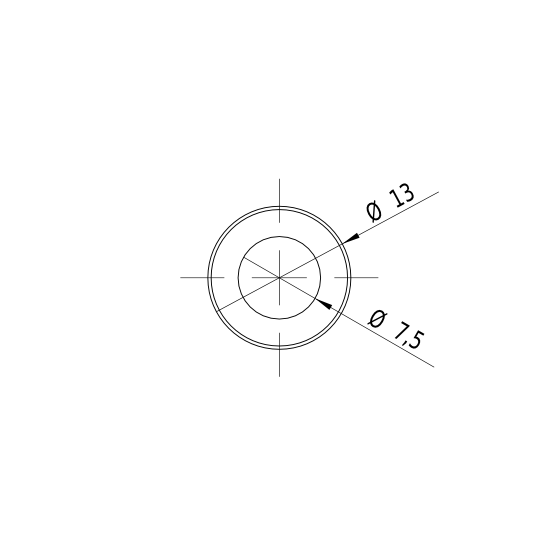

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 6V DC
