MI650-1-5(8x21)-AP

Order number: 70108583

Product description:
dot lasermodule, 650nm, 1mW, 5V DC, 8x21mm, class 2, axial parallel

• axial parallel
• Operating Voltage 5V DC
• Laser Class 2
• compact size
• image processing

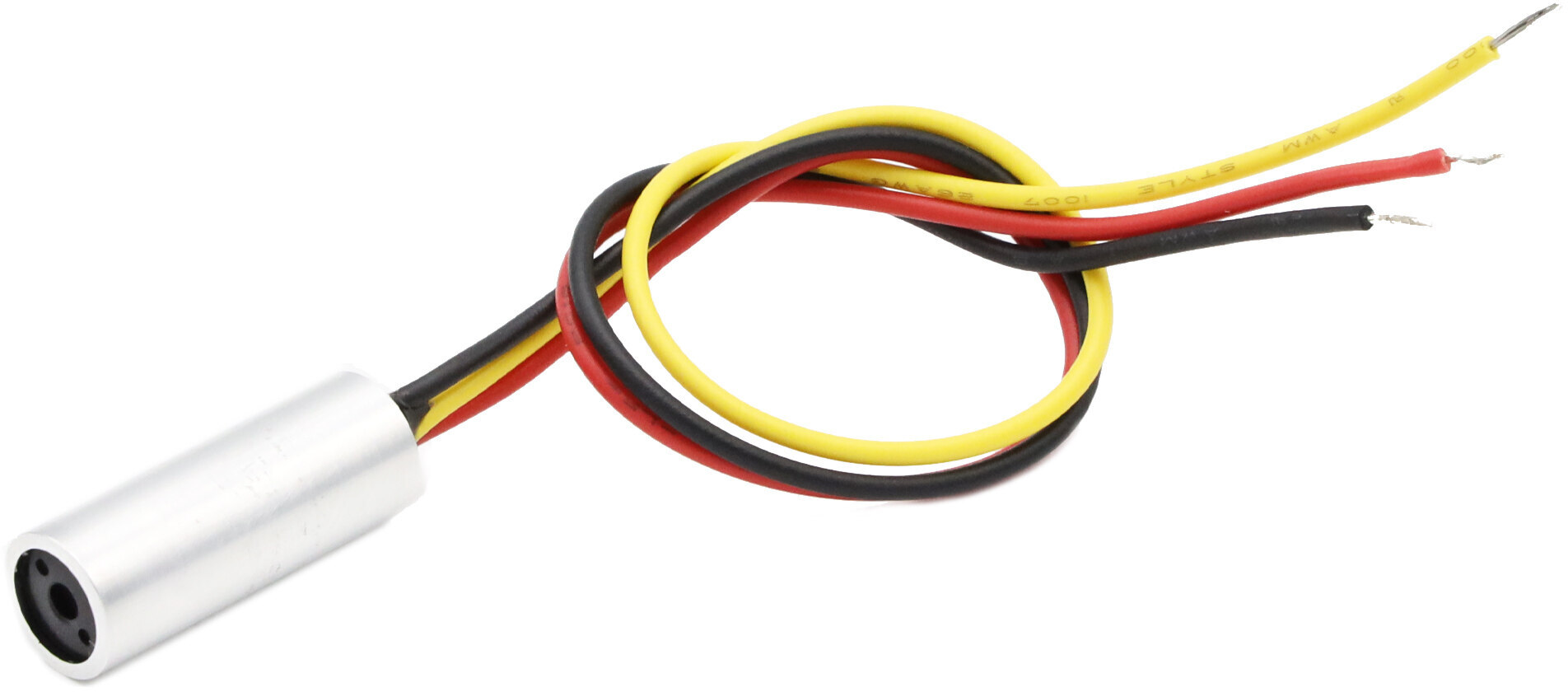

MI650-1-5(8x21)-AP - Hauptbild
MI650-1-5(8x21)-AP - Rendergrafik
MI650-1-5(8x21)-AP - Zeichnung
MI650-1-5(8x21)-AP - Zeichnung Front
MI650-1-5(8x21)-AP - Zeichnung isometrisch
Warnlabel 2
48,66
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Dot
    Wavelength 650nm
    (rot)
    Optical Power 1mW
    Laser Class 2
    Divergence 1.5mrad
    Size of Laserdot <2..3mm@5m
    Operating Distance 10m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Axial Divergence ±0.1°
    Size Ø8mm 21mm
    Material aluminium
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus collimated
    Output Aperture 2mm
    Max. Mod. Frequency 200kHz
    Lifetime >5000h
    Operating Voltage 4.5 - 5.5, typ 5V DC
    Operating Current 15 - 35, typ 25mA
    Housing Color silver
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 1.5g
    Stripping of wire 5mm
  • Illustration and technical drawing
  • MI650-1-5(8x21)-AP - Hauptbild
    MI650-1-5(8x21)-AP - Rendergrafik
    MI650-1-5(8x21)-AP - Zeichnung
    MI650-1-5(8x21)-AP - Zeichnung Front
    MI650-1-5(8x21)-AP - Zeichnung isometrisch
    Warnlabel 2
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
    Modulation:Cable color Modulate: yellowyellow200kHz
  • Matching accessories
  • MULTI-MOUNT-08(45x75)MULTI-MOUNT-08(45x75)
    Order no.: 70112481
    Mount for Lasermodul 8mm, Diameter 45mm, Height 75mm
    66.30 EUR
