DOE218-DD635-1-3(12X54)

Order number: 70183382

Product description:
focusable isolated DOE lasermodule, red, 635nm, 5mW, 24V DC, 16x65mm, class 1M, incl. DOE-R-218, Cross pattern 15°

• adjustable focus
• DOE optic can be changed
• compact size
• glas lenses anti reflex coated
• Operating Voltage 3 V DC

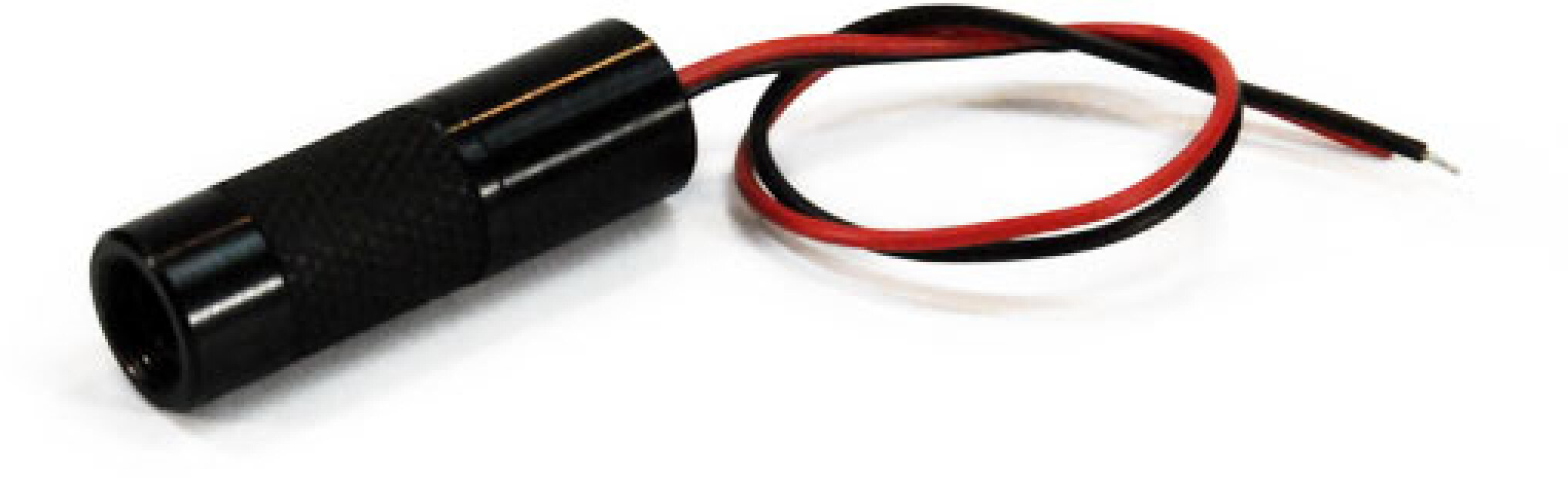

DOE218-DD635-1-3(12X54) - Hauptbild
Warnlabel 1
DOE218-DD635-1-3(12X54) - DOE-Vermaßungsskizze
149,50
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape DOE
    Wavelength 635nm
    (rot)
    Optical Power 1mW
    Laser Class 1
    Divergence 0.5mrad
    Operating Distance 5m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Size Ø12mm 54mm
    Material aluminium
    Cable length 100mm
    Wire type Belden, Typ 1007, 26AWG
    Focus adjustable
    Output Aperture 5mm
    Potential of Housing insulated
    Lifetime >10000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 15 - 45, typ 28mA
    Housing Color black
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 15g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Alpha 14.9°
    Diameter (without holder) 8mm
    Material PC
    Stripping of wire 5mm
    Stripping of cable cover 20mm
  • Illustration and technical drawing
  • DOE218-DD635-1-3(12X54) - Hauptbild
    Warnlabel 1
    DOE218-DD635-1-3(12X54) - DOE-Vermaßungsskizze
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • Mount-12(20x57)Mount-12(20x57)
    Order no.: 70113686
    Mount for Lasermodul 12mm, Diameter 20mm, Height 57mm
    54.54 EUR
