RP-CG635-10-24-F(20X90)50DEG

Order number: 70183009

Product description:
Focusable, cross laser module, red, 50°, 635nm, 10mW, 24V DC, 20x90mm, Laser Class 2M

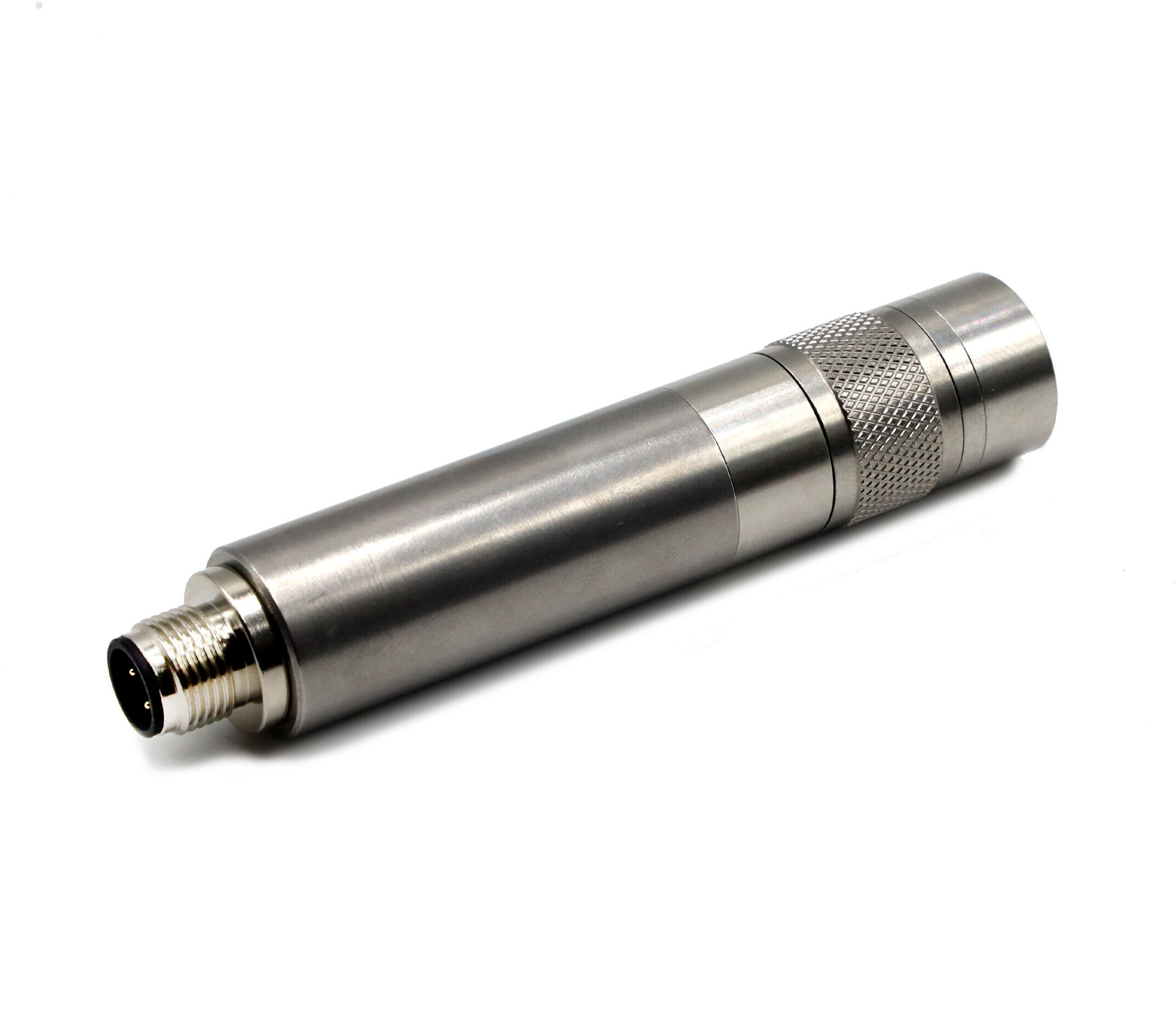

RP-CG635-10-24-F(20X90)50DEG - Produktbild 1

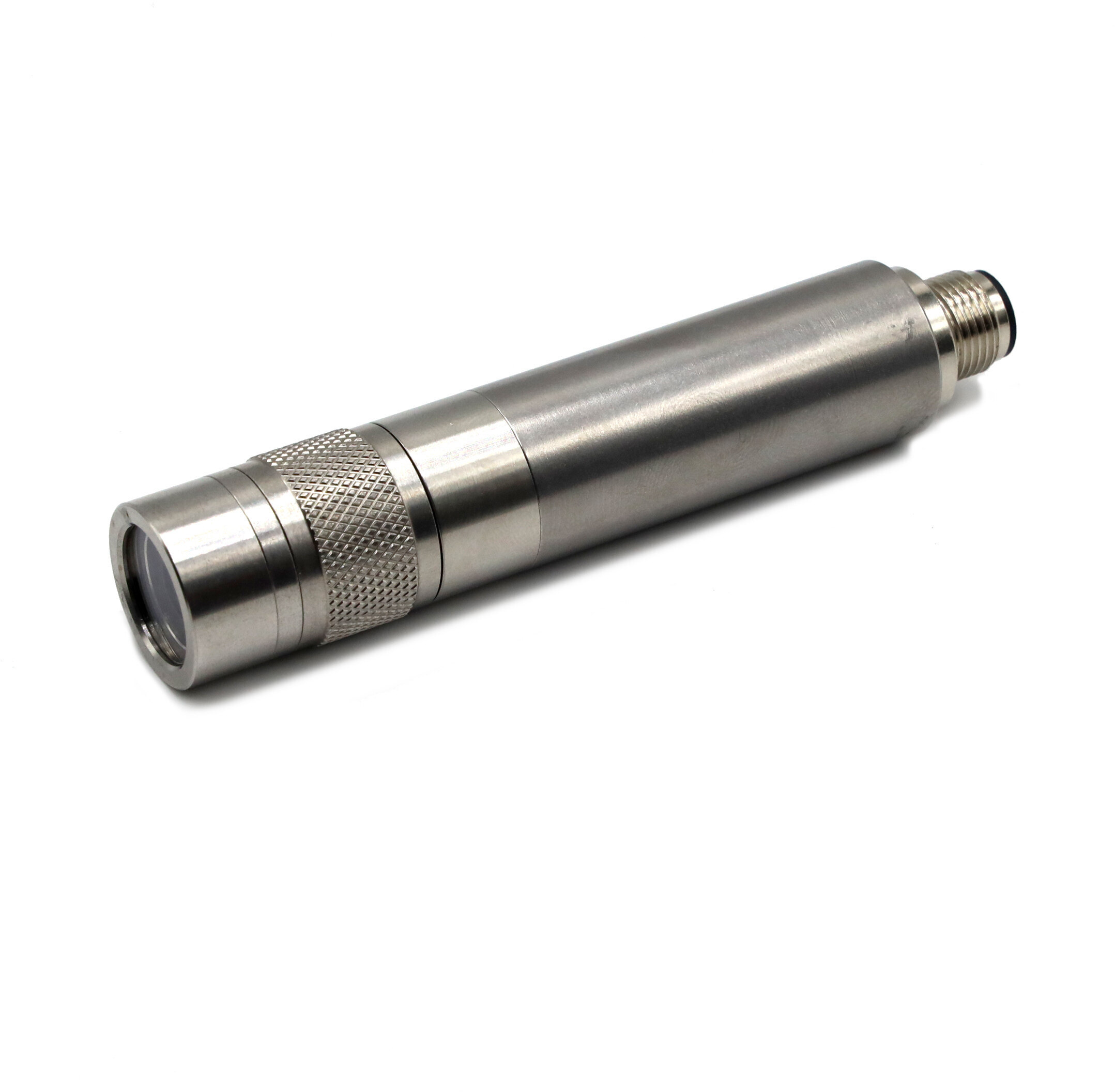

RP-CG635-10-24-F(20X90)50DEG - Hauptbild
Warnlabel 2M
344,45
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeCross
    Wavelength635nm
    (rot)
    Optical Power10mW
    Laser Class2M
    Divergence0.8mrad
    Fan Angle50°
    Line Thickness<1mm@1m
    Operating Distance5m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    Size
    MaterialStainless Steel
    Focusadjustable
    Output Aperture1mm
    Potential of HousingVDD(+)
    Lifetime>10000h
    Operating Voltage21.6 - 26.4, typ 24V DC
    Operating Current20 - 60, typ 40mA
    ConnectorCON-M12
    Operating Temperature-20°C - 60°C
    Storage Temperature-40°C - 85°C
    Weight50g
    Power SupplyPower Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
  • Illustration and technical drawing
  • RP-CG635-10-24-F(20X90)50DEG - Produktbild 1
    RP-CG635-10-24-F(20X90)50DEG - Hauptbild
    Warnlabel 2M
  • Matching accessories
  • LFNT-24-CLFNT-24-C
    Order no.: 70115055
    Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
    SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
    31.85 EUR
